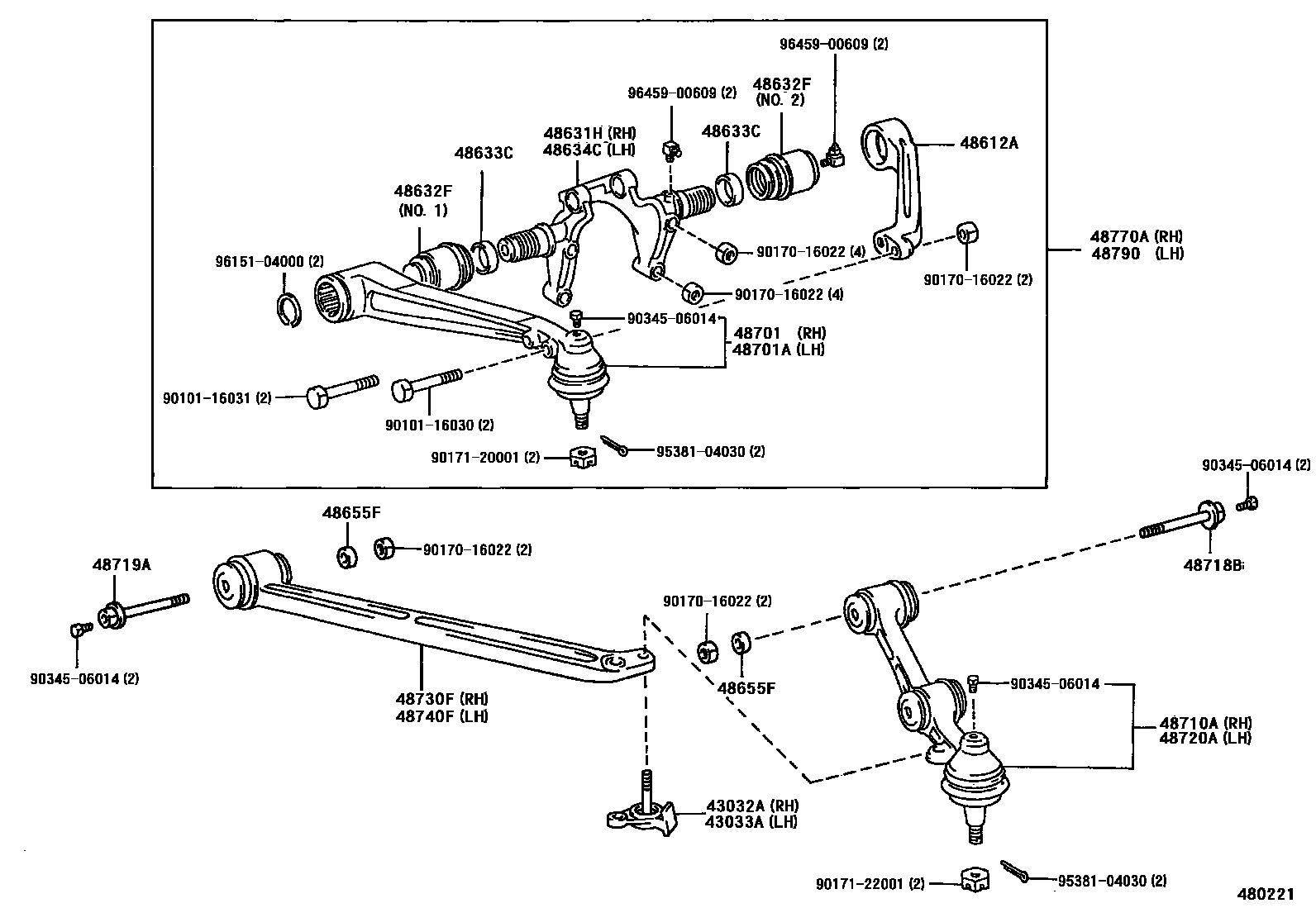

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1

43032ASTOPPER SUB-ASSY, STEERING KNUCKLE, RH

main43032-65020iBXD20199610

43033ASTOPPER SUB-ASSY, STEERING KNUCKLE, LH

main43033-65020iBXD20199610

48612AARM, REAR UPPER CONTROL, NO.2

main48612-65010iBXD20199610

48631HSHAFT, REAR UPPER ARM, NO.2 RH

main48631-65020iBXD20199610

48632FBUSH, REAR SUSPENSION UPPER ARM

main48632-65010iBXD20199610

NO.1

main48632-65020iBXD20199610

NO.2

48633CSEAL, REAR SUSPENSION UPPER ARM PIVOT DUST

main48633-36010iBXD20199610

48634CSHAFT, REAR SUSPENSION UPPER ARM

main48634-65020iBXD20199610

48655FBUSH, LWR ARM, NO.2

main48655-65010iBXD20199610

48701ARM SUB-ASSY, UPPER CONTROL, RH

main48701-65010iBXD20199610

48701AARM SUB-ASSY, UPPER CONTROL, LH

main48701-65020iBXD20199610

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-65010iBXD20199610

48718BSHAFT, REAR SUSPENSION LOWER ARM, NO.1

main48718-65010iBXD20199610

48719ASHAFT, REAR SUSPENSION LOWER ARM, NO.2

main48719-65010iBXD20199610

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48720-65010iBXD20199610

48730FARM ASSY, REAR SUSPENSION, NO.2 RH

main48730-65010iBXD20199610

48740FARM ASSY, REAR SUSPENSION, NO.2 LH

main48730-65010iBXD20199610

48770AARM ASSY, UPPER CONTROL, REAR RH

main48770-69015iBXD20199610

48790ARM ASSY, UPPER CONTROL, REAR LH

main48790-69015iBXD20199610

9010116030

main90101-16030

9010116031

main90101-16031

9017016022

main90170-16022

9017120001

main90171-20001

9017122001

main90171-22001

9034506014

main90345-06014

9538104030

main95381-04030

9615104000

main96151-04000

9645900609

main96459-00609

27 parts on this diagram · 2 diagrams in section
