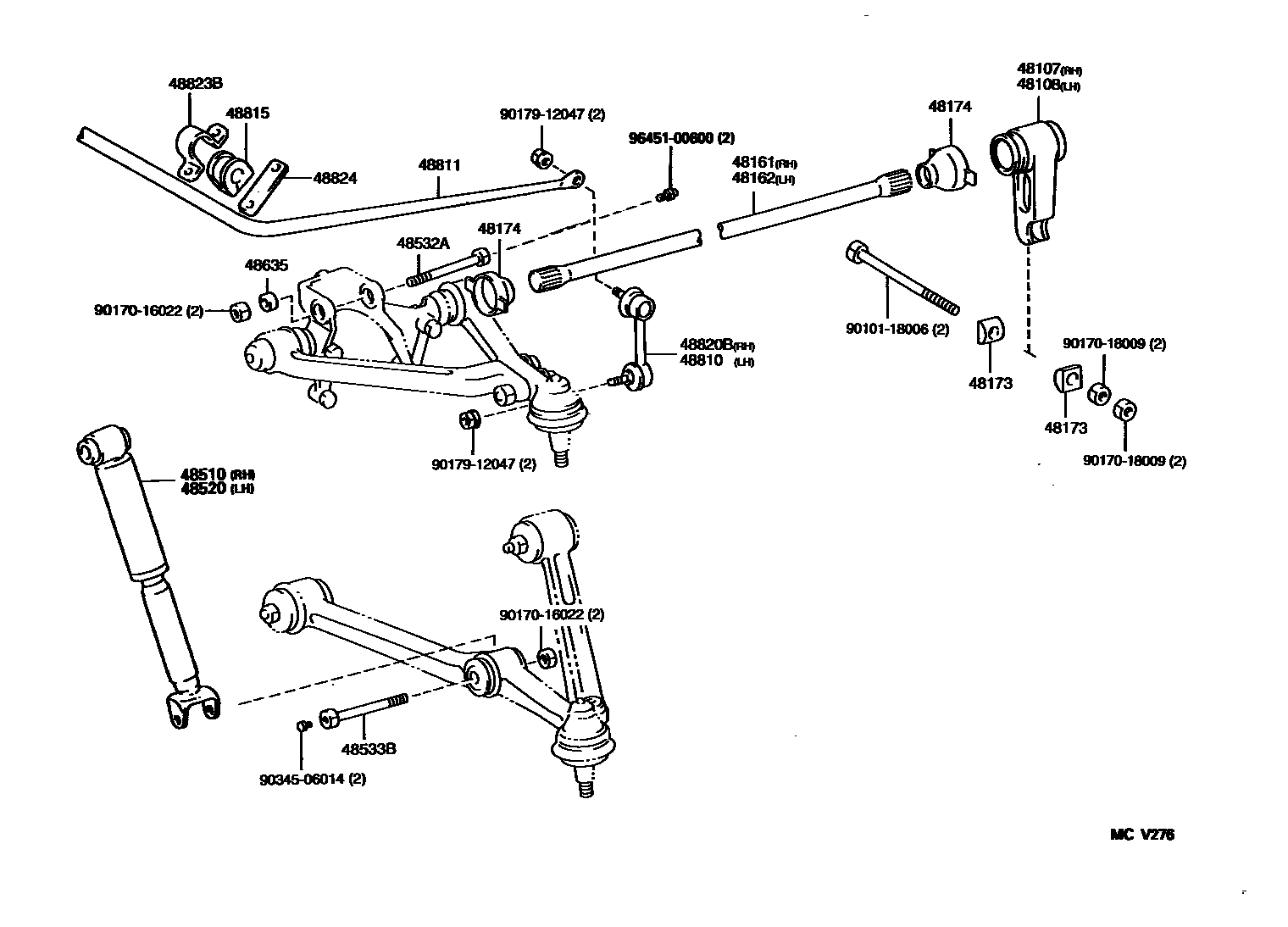

FRONT SPRING & SHOCK ABSORBER

48107ARM SUB-ASSY, ANCHOR, RH

main48107-65010iBXD20199610

48108ARM SUB-ASSY, ANCHOR, LH

main48108-65010iBXD20199610

48161SPRING, TORSION BAR, RH

main48161-65050iBXD20199610

48162SPRING, TORSION BAR, LH

main48162-65050iBXD20199610

48173SEAT, ANCHOR ARM ADJUSTER

main48173-36010iBXD20199610

48174COVER, TORSION BAR DUST

main48174-65010iBXD20199610

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-65020iBXD20199610

48520ABSORBER ASSY, SHOCK, FRONT LH

main48510-65020iBXD20199610

48532APIN, FRONT SHOCK ABSORBER UPPER PIVOT

main48532-65010iBXD20199610-199906

main48532-65011iBXD20199906

48533BPIN, FRONT SHOCK ABSORBER LOWER PIVOT

main48533-65010iBXD20199610

48635BUSH, UPPER ARM, REAR

main48635-65010iBXD20199610-199906

main48635-65011iBXD20199906

48810LINK ASSY, FRONT STABILIZER, LH

main48810-65010iBXD20199610

48811BAR, STABILIZER, FRONT

main48811-65020iBXD20199610

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-65020iBXD20199610

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-65010iBXD20199610

48823BCOVER, FRONT STABILIZER BRACKET

main48823-65020iBXD20199610

48824BRACKET, STABILIZER, FRONT

main48824-65020iBXD20199610

9010118006

main90101-18006

9017016022

main90170-16022

9017018009

main90170-18009

9017912047

main90179-12047

9034506014

main90345-06014

9645100600

main96451-00600

23 parts on this diagram · 1 diagram in section
