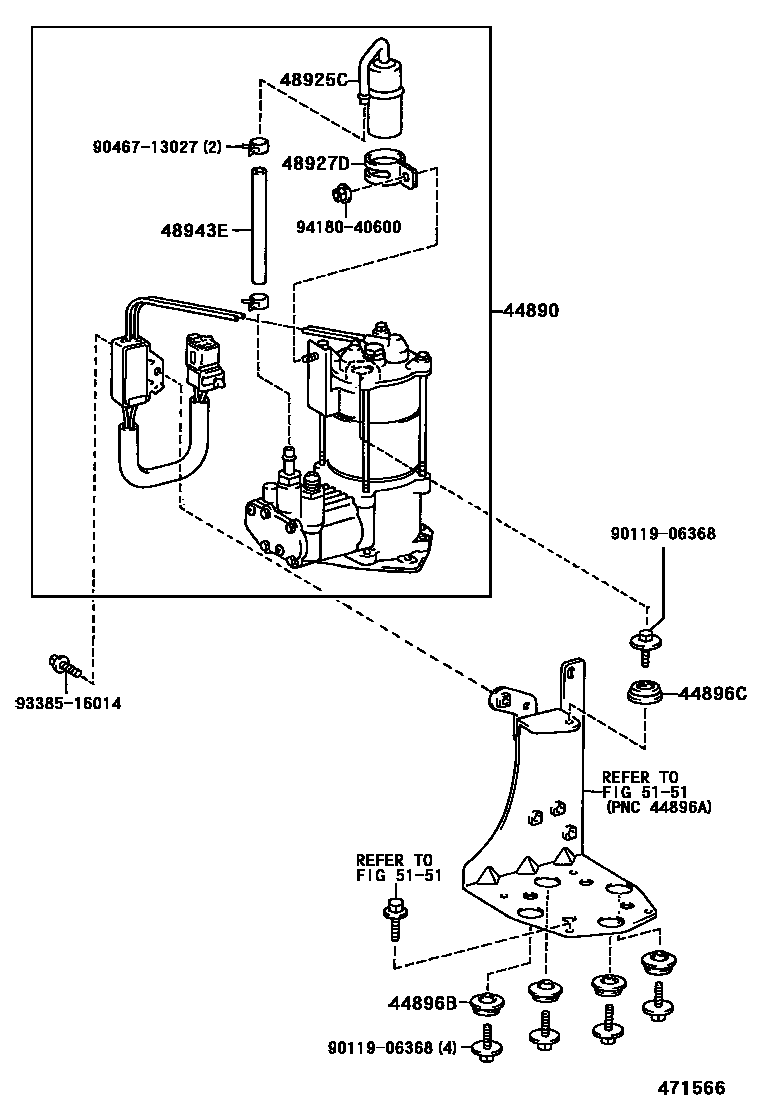

AIR BRAKE SYSTEM

0001 1 0002 1 0003 1 0004 1

44890COMPRESSOR ASSY, AIR

main44809-65010iBXD20199610

44896BBUSH, AIR BRAKE COMPRESSOR BRACKET, NO.1

main90389-06022×4iBXD20199610

44896CBUSH, AIR BRAKE COMPRESSOR BRACKET, NO.2

main90389-06052iBXD20199610

48925CFILTER, AIR BRAKE COMPRESSOR

main48925-65010iBXD20199610

48927DBRACKET, AIR BRAKE COMPRESSOR FILTER

main48927-65010iBXD20199610

48943EHOSE(FOR FILTER TO COMPRESSOR)

main48943-65010iBXD20199610

5151

9011906368

main90119-06368

9046713027

main90467-13027

9338516014

main93385-16014

9418040600

main94180-40600

11 parts on this diagram · 4 diagrams in section
