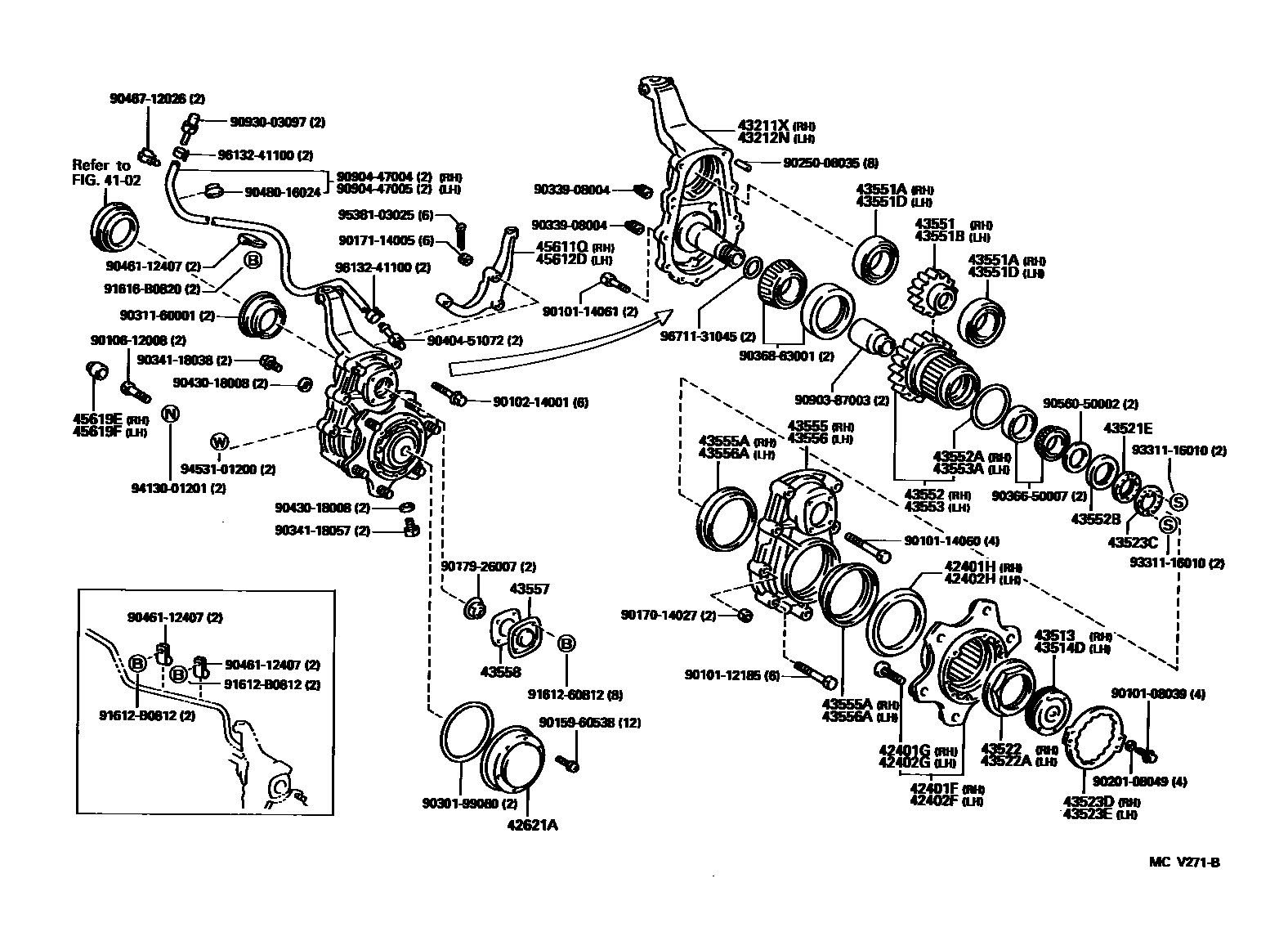

REAR HUB REDUCTION

0001 1 0002 1W(TIRE INFLATION SYSTEM) 0003 1 0004 1W(TIRE INFLATION SYSTEM) 0005 1 0006 1W(TIRE INFLATION SYSTEM)

4102

42401FHUB SUB-ASSY, REAR AXLE, RH

main42401-65010iBXD20199610

W(TIRE INFLATION SYSTEM)

main43501-65010iBXD20199610

42401GBOLT, HUB(FOR REAR AXLE HUB RH)

main90942-02074iBXD20199610

42401HSEAL, DUST(FOR REAR AXLE HUB RH)

main90304-99005iBXD20199610

42402FHUB SUB-ASSY, REAR AXLE, LH

main42402-65010iBXD20199610

W(TIRE INFLATION SYSTEM)

main43502-65010iBXD20199610

42402GBOLT, HUB(FOR REAR AXLE HUB LH)

main90942-02075iBXD20199610

42402HSEAL, DUST(FOR REAR AXLE HUB LH)

main90304-99005iBXD20199610

42621ACAP, WHEEL(FOR REAR AXLE)

main42621-65010iBXD20199610

43211XKNUCKLE, REAR STEERING, RH

main43211-36170iBXD20199610-199701

main43211-65030iBXD20199610-199701

W(TIRE INFLATION SYSTEM)

main43211-65050iBXD20199701

main43211-65060iBXD20199701

W(TIRE INFLATION SYSTEM)

43212NKNUCKLE, REAR STEERING, LH

main43212-36140iBXD20199610-199701

main43212-65030iBXD20199610-199701

W(TIRE INFLATION SYSTEM)

main43212-65050iBXD20199701

main43212-65060iBXD20199701

W(TIRE INFLATION SYSTEM)

sub43212-65061

43513CAP, WHEEL BEARING, RH(FOR REAR AXLE)

main43505-65010iBXD20199610

W(TIRE INFLATION SYSTEM)

main43513-65020iBXD20199610

43514DCAP, WHEEL BEARING, LH(FOR REAR AXLE)

main43506-65010iBXD20199610

W(TIRE INFLATION SYSTEM)

main43514-65020iBXD20199610

43521ENUT, REAR AXLE BEARING LOCK

main43521-65010iBXD20199610

43522NUT, HUB SET(FOR REAR AXLE RH)

main43522-65010iBXD20199610

43522ANUT, HUB SET(FOR REAR AXLE LH)

main43522-65020iBXD20199610

43523CWASHER, HUB SET CLAW(FOR REAR AXLE)

main43523-65010iBXD20199610

43523DWASHER, HUB SET CLAW(FOR REAR AXLE RH)

main43523-65020iBXD20199610

43523EWASHER, HUB SET CLAW(FOR REAR AXLE LH)

main43523-65020iBXD20199610

43551GEAR, REAR HUB REDUCTION DRIVE, RH

main43551-65010iBXD20199610-199701

main43551-65020iBXD20199701

43551ABEARING, ROLLER(FOR REAR HUB REDUCTION RH)

main90365-50001iBXD20199610-199701

main90366-55051iBXD20199701

43551BGEAR, REAR HUB REDUCTION DRIVE, LH

main43551-65010iBXD20199610-199701

main43551-65030iBXD20199701

43551DBEARING, ROLLER(FOR REAR HUB REDUCTION LH)

main90365-50001iBXD20199610-199701

main90366-55051iBXD20199701

43552GEAR, REAR HUB REDUCTION DRIVEN, RH

main43552-65010iBXD20199610-199701

main43552-65020iBXD20199701

43552ARING, O(FOR REAR HUB REDUCTION DRIVE GEAR RH)

main90301-94003iBXD20199610

43552BSEAL, OIL(FOR REAR HUB REDUCTION DRIVEN GEAR)

main90311-75010iBXD20199610

43553GEAR, REAR HUB REDUCTION DRIVEN, LH

main43553-65010iBXD20199610-199701

main43553-65020iBXD20199701

43553ARING, O(FOR REAR HUB REDUCTION DRIVEN GEAR LH)

main90301-94003iBXD20199610

43555COVER, REAR HUB REDUCTION GEAR, RH

main43555-65010iBXD20199610-199701

main43555-65020iBXD20199701

43555ASEAL, OIL(FOR REAR HUB REDUCTION GEAR COVER RH)

main90311-99007iBXD20199610

INNER

main90311-99008iBXD20199610

OUTER

43556COVER, REAR HUB REDUCTION GEAR, LH

main43556-65010iBXD20199610-199701

main43556-65020iBXD20199701

43556ASEAL, OIL(FOR REAR HUB REDUCTION GEAR COVER LH)

main90311-99007iBXD20199610

INNER

main90311-99008iBXD20199610

OUTER

43557COVER, REAR HUB REDUCTION DRIVE SHAFT

main42104-65010iBXD20199801

RH

main42104-65020iBXD20199801

LH

main43557-65010iBXD20199610-199801

43558GASKET, REAR HUB REDUCTION DRIVE SHAFT END

main43558-65010iBXD20199610

45611QARM, REAR STEERING KNUCKLE, RH

main45611-65030iBXD20199610

45612DARM, REAR STEERING KNUCKLE, LH

main45612-65030iBXD20199610

45619ECOVER, KNUCKLE STOPPER, REAR RH

main45619-36010iBXD20199610

45619FCOVER, KNUCKLE STOPPER, REAR LH

main45619-36010iBXD20199610

9010108039

main90101-08039

9010112185

main90101-12185

9010114060

main90101-14060

9010114061

main90101-14061

9010214001

main90102-14001

9010612008

main90106-12008

9015960538

main90159-60538

9017014027

main90170-14027

9017114005

main90171-14005

9017926007

main90179-26007

9020108049

main90201-08049

9025008035

main90250-08035

9030199080

main90301-99080

9031160001

main90311-60001

9033908004

main90339-08004

9034118038

main90341-18038

9034118057

main90341-18057

9036650007

main90366-50007

9036863001

main90368-63001

9040451072

main90404-51072

9043018008

main90430-18008

9046112407

main90461-12407

9046712026

main90467-12026

9048016024

main90480-16024

9056050002

main90560-50002

9090387003

main90903-87003

9090447004

main90904-47004

9090447005

main90904-47005

9093003097

main90930-03097

9161260812

main91612-60812

91612B0812

main91612-B0812

91616B0820

main91616-B0820

9331116010

main93311-16010

9413001201

main94130-01201

9453101200

main94531-01200

9538103025

main95381-03025

9613241100

main96132-41100

9671131045

main96711-31045

75 parts on this diagram · 6 diagrams in section
