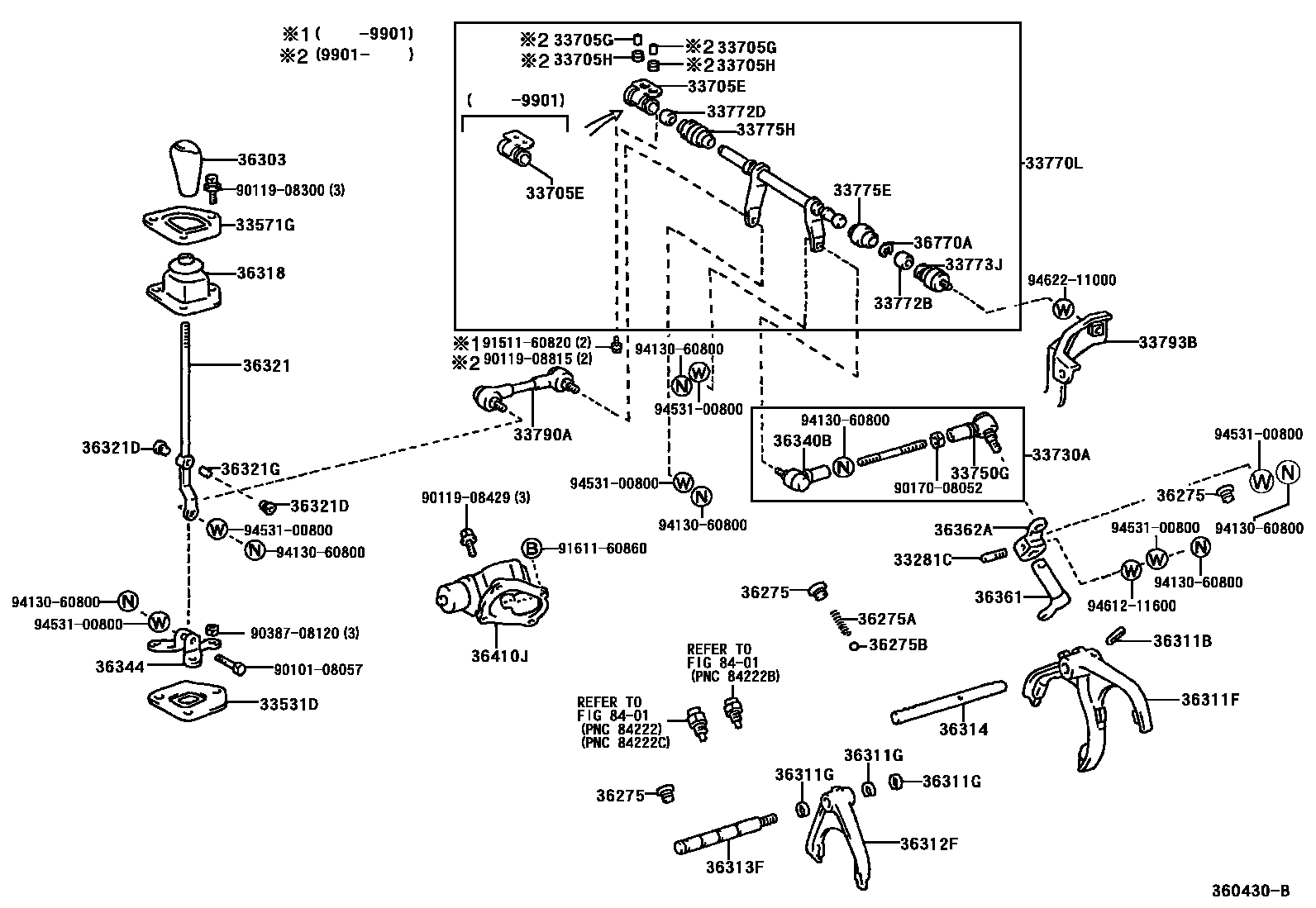

TRANSFER LEVER & SHIFT ROD
33281CPIN, LEVER LOCK
33531DBOOT, DUST (FOR DIFFERENTIAL LOCK SHIFT FORK SHAFT)
33571GBRACKET, CONTROL SHAFT, LWR
33705GCOLLAR (FOR CROSS SHAFT SUPPORT)
33705HGROMMET (FOR CROSS SHAFT SUPPORT)
33730AROD ASSY, GEAR SHIFTING, NO.2
33750GEND ASSY, CONNECTING ROD, NO.2 (FOR TRANSFER SHIFT ROD)
33772BBUSH, CROSS SHAFT SUPPORT (FOR TRANSFER)
33772DBUSH, CROSS SHAFT SUPPORT
33773JSUPPORT, CROSS SHAFT, NO.1
33775ECOVER, CROSS SHAFT DUST (FOR TRANSFER)
33775HCOVER, CROSS SHAFT DUST, NO.1
33790AROD ASSY, GEAR SELECTING, NO.2
33793BBRACKET, CROSS SHAFT, NO.2
36275PLUG, SHIFT DETENT BALL SPRING
36275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL)
L=23.8
36275BBALL, SHIFT DETENT
OD=9.52,STEEL
36303KNOB SUB-ASSY, SHIFT LEVER
36311BPIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK)
L=25.5
36311GRING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK)
36312FFORK, TRANSFER GEAR SHIFT, NO.2
36313FSHAFT, TRANSFER FRONT DRIVE SHIFT FORK
36314SHAFT, TRANSFER HIGH AND LOW SHIFT FORK
36318BOOT, TRANSFER FRONT DRIVE SHIFT
36321LEVER, TRANSFER FRONT DRIVE SHIFT
36321DBUSH (FOR TRANSFER SHIFT LEVER)
36321GCOLLER (FOR TRANSFER SHIFT LEVER)
36340BEND ASSY (FOR HIGH & LOW SHIFT ROD)
36344RETAINER, TRANSFER CONTROL SHIFT LEVER
36361LEVER, TRANSFER SHIFT, INNER
36362ALEVER, TRANSFER SHIFT, OUTER
36410JACTUATOR ASSY, TRANSFER SHIFT
36770ARING, SNAP (FOR TRANSFER CROSS SHAFT)
8401
9010108057
main90101-08057
9011908300
main90119-08300
9011908429
main90119-08429
9011908815
main90119-08815
9017008052
main90170-08052
9038708120
main90387-08120
9151160820
main91511-60820
9161160860
main91611-60860
9413060800
main94130-60800
9453100800
main94531-00800
9461211600
main94612-11600
9462211000
main94622-11000
49 parts on this diagram · 1 diagram in section
