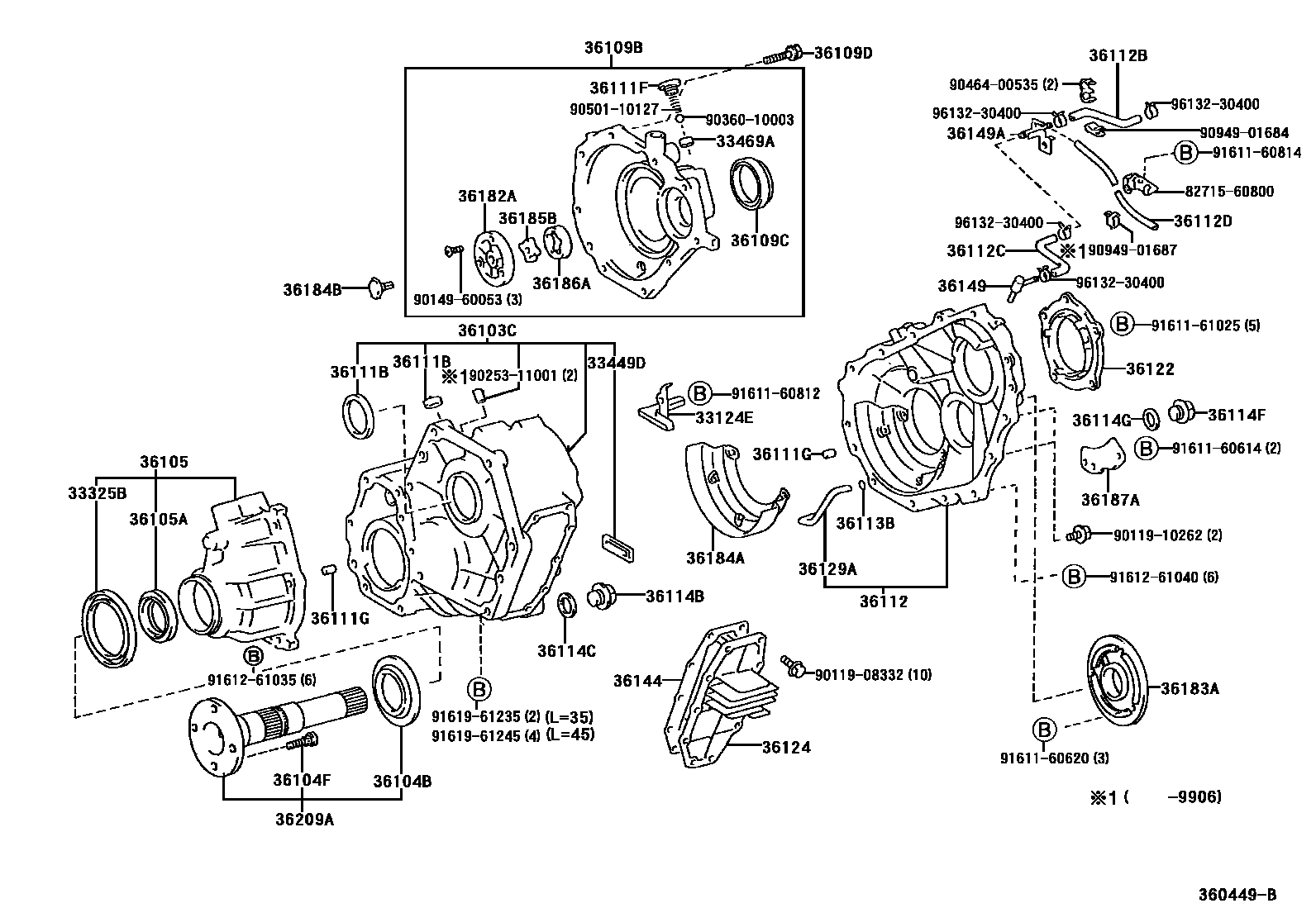

TRANSFER CASE & EXTENSION HOUSING

33124EPIPE, OIL RECEIVER(FOR TRANSFER)

main33124-60030iBXD20199610

33325BDEFLECTOR, DUST (FOR TRANSFER EXTENSION FRONT HOUSING)

main33325-60050iBXD20199610

33449DMAGNET (FOR TRANSFER CASE)

main33449-60010iBXD20199610

33469ASEAT, RELIEF VALVE (FOR TRANSFER EXTENSION REAR HOUSING)

main33469-60010iBXD20199610-199801

main33469-60020iBXD20199801

36103CCASE, TRANSFER, FRONT

main36103-60240iBXD20199610

36104BDEFLECTOR, DUST (FOR TRANSFER OUTPUT SHAFT)

main33325-60040iBXD20199610

36104FBOLT (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)

main90114-11003iBXD20199806

main90114-11124iBXD20199610-199806

36105HOUSING SUB-ASSY, TRANSFER EXTENSION, FRONT

main36105-60020iBXD20199610

36105ASEAL, OIL (TRANSFER EXTENSION FRONT HOUSING SUB-ASSY)

main90311-50014iBXD20199610

36109BHOUSING SUB-ASSY, TRANSFER EXTENSION, REAR

main36109-65010iBXD20199610

36109CSEAL, OIL (TRANSFER EXTENSION REAR HOUSING SUB-ASSY)

main90311-48011iBXD20199610

36109DBOLT (FOR TRANSFER EXTENSION REAR HOUSING)

main90119-10180iBXD20199610

*10-1.25PX75-30

main90119-10390iBXD20199610

*10-1.25PX35-30

36111BSEAL, OIL (FOR TRANSFER CASE)

main90310-16001iBXD20199610

LEVER SIDE

main90311-48018iBXD20199610

SHAFT SIDE

sub90311-48025

36111FPLUG (FOR TRANSFER CASE)

main90341-18039iBXD20199610

36111GPIN, STRAIGHT (FOR TRANSFER CASE)

main90250-12002iBXD20199610

L=16,OD=12

36112CASE, TRANSFER, REAR

main36104-60020iBXD20199610

36112BHOSE, NO.1 (FOR TRANSFER REAR CASE)

main90445-11129iBXD20199610

36112CHOSE, NO.2 (FOR TRANSFER REAR CASE)

main90445-11134iBXD20199610

36112DHOSE, NO.3 (FOR TRANSFER REAR CASE)

main90445-08277iBXD20199610-199906

main90447-08151iBXD20199906

36113BRING, O (FOR TRANSFER CASE PLUG)

main90301-07012iBXD20199610

ID=6.0

36114BPLUG, NO.1 (FOR TRANSFER CASE)

main90341-18006iBXD20199610

36114CGASKET, NO.1 (FOR TRANSFER CASE)

main90430-18008iBXD20199610

36114FPLUG (FOR TRANSFER DRAIN)

main90341-18057iBXD20199610

36114GGASKET (FOR TRANSFER DRAIN PLUG)

main90430-18008iBXD20199610

36122COVER, TRANSFER CASE, NO.2

main36122-65020iBXD20199610

36124COVER, TRANSFER POWER TAKE-OFF

main36124-65010iBXD20199610

36129ATUBE, TRANSFER OIL

main36129-60030iBXD20199610

36144GASKET, TRANSFER POWER TAKE-OFF COVER

main36144-60030iBXD20199610

36149PIPE, TRANSFER BREATHER

main36149-60010iBXD20199610

36149APIPE, TRANSFER BREATHER, NO.2

main36149-60020iBXD20199610

36182ACOVER, TRANSFER OIL PUMP

main36182-60011iBXD20199610

36183APLATE, TRANSFER OIL PUMP

main36183-60012iBXD20199610

36184ASEPARATOR, TRANSFER OIL

main36184-60030iBXD20199610

36184BSHAFT, TRANSFER OIL PUMP DRIVE

main36184-60010iBXD20199610-199801

sub36184-60060

main36184-60060iBXD20199801

36185BROTOR, TRANSFER OIL PUMP DRIVE

main36185-60030iBXD20199610

36186AROTOR, TRANSFER OIL PUMP DRIVEN

main36186-60010iBXD20199610

36187ASTRAINR, TRANSFER OIL, NO.1

main36187-60010iBXD20199610

36209ASHAFT, TRANSFER OUTPUT, FRONT

main36209-65010iBXD20199610

8271560800BRACKET,WIRING HARNESS CLAMP

main82715-60800

9011908332

main90119-08332

9011910262

main90119-10262

9014960053

main90149-60053

9025311001

main90253-11001

9036010003

main90360-10003

9046400535

main90464-00535

9050110127

main90501-10127

9094901684

main90949-01684

9094901687

main90949-01687

9161160614

main91611-60614

9161160620

main91611-60620

9161160812

main91611-60812

9161160814

main91611-60814

9161161025

main91611-61025

9161261035

main91612-61035

9161261040

main91612-61040

9161961235

main91619-61235

9161961245

main91619-61245

9613230400

main96132-30400

58 parts on this diagram · 1 diagram in section
