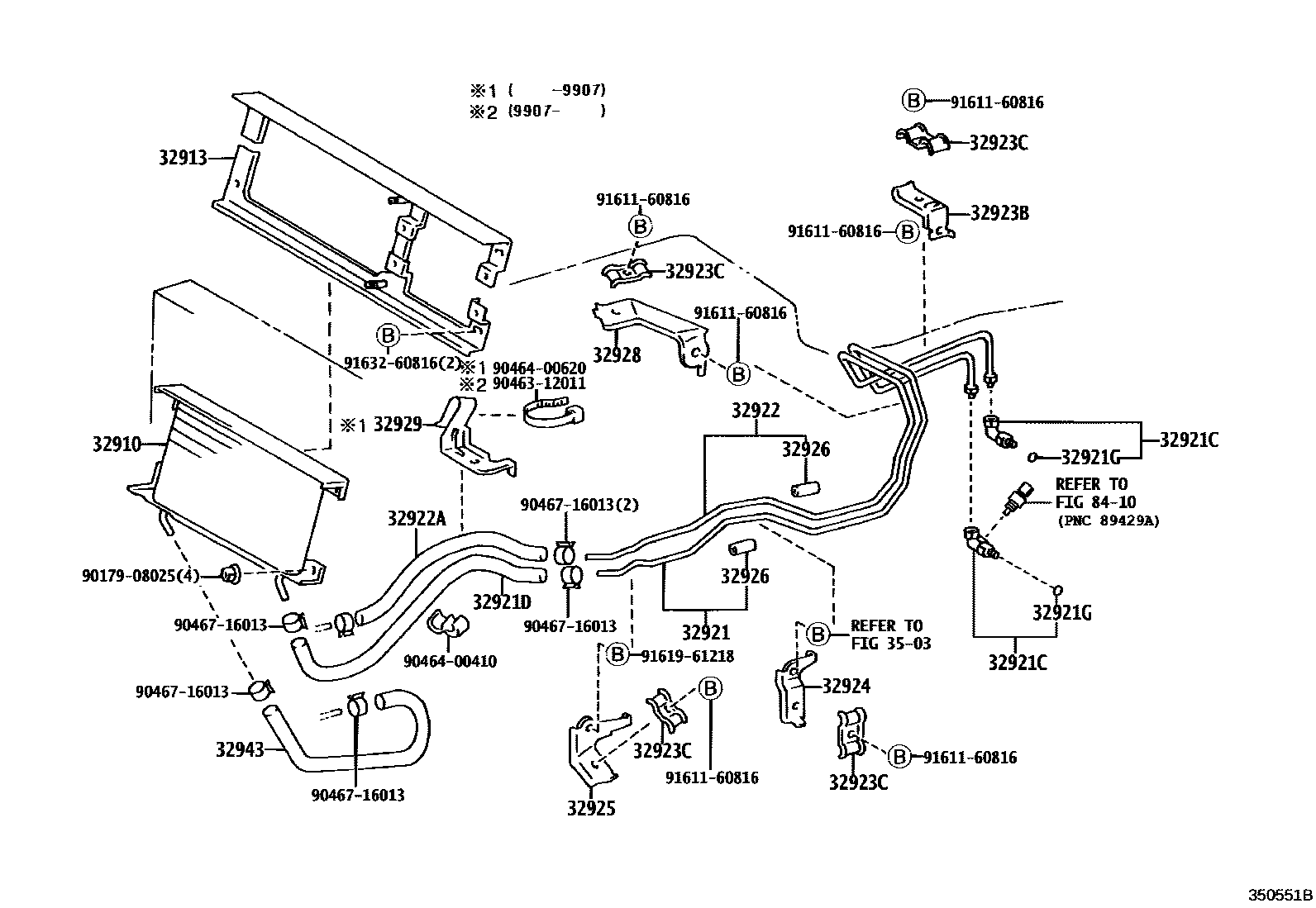

OIL COOLER & TUBE (ATM)

0001 1A443F 0002 1A443F

32910COOLER ASSY, OIL

main32910-65010iBXD20199610-199906

sub32910-65020

main32910-65020iBXD20199906

32913BRACKET, OIL COOLER

main32913-65010iBXD20199610-199906

main32913-65020iBXD20199906

32921TUBE, OIL COOLER INLET, NO.1

main32921-65010iBXD20199610-199907

main32921-65020iBXD20199907-200109

main32921-65040iBXD20200109-200110

32921CUNION(FOR OIL COOLER TUBE)

main90407-20004iBXD20199610-200110

OUTLET

main90407-20006iBXD20199610-200110

INLET

32921DHOSE(FOR OIL COOLER INLET)

main32941-60120iBXD20199610-199907

main32941-65010iBXD20200109-200110

main32941-65030iBXD20199907-200109

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11006iBXD20199610-200110

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-65010iBXD20199610-199907

main32922-65020iBXD20199907-200109

main32922-65040iBXD20200109-200110

32922AHOSE(FOR OIL COOLER OUTLET)

main32942-22280iBXD20200109-200110

NO.2

main32942-65010iBXD20199610-199907

main32942-65020iBXD20199907-200109

main32942-65040iBXD20200109-200110

NO.1

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32923-36030iBXD20199610-199907

sub32923-36031

main32923-36031iBXD20199907

32923CCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4

main90462-12076iBXD20199610

32924CLAMP, OIL COOLER TUBE, NO.2

main32924-65010iBXD20199610

32925CLAMP, OIL COOLER TUBE, NO.3

main32925-65010iBXD20199610-199907

sub32925-65011

main32925-65011iBXD20199907

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-60010iBXD20199610

L=45,ID=12

32928CLAMP, FLEXIBLE HOSE, NO.1

main32928-65010iBXD20199610-199907

main32928-65040iBXD20199907

32929CLAMP, FLEXIBLE HOSE, NO.2

main32929-65010iBXD20199610-199907

main32929-65020iBXD20200109-200110

32943HOSE, TRANSMISSION OIL COOLER, NO.1

main32943-65010iBXD20199610

3503

8410

9017908025

main90179-08025

9046312011

main90463-12011

9046400410

main90464-00410

9046400620

main90464-00620

9046716013

main90467-16013

9161160816

main91611-60816

9161961218

main91619-61218

9163260816

main91632-60816

26 parts on this diagram · 2 diagrams in section
