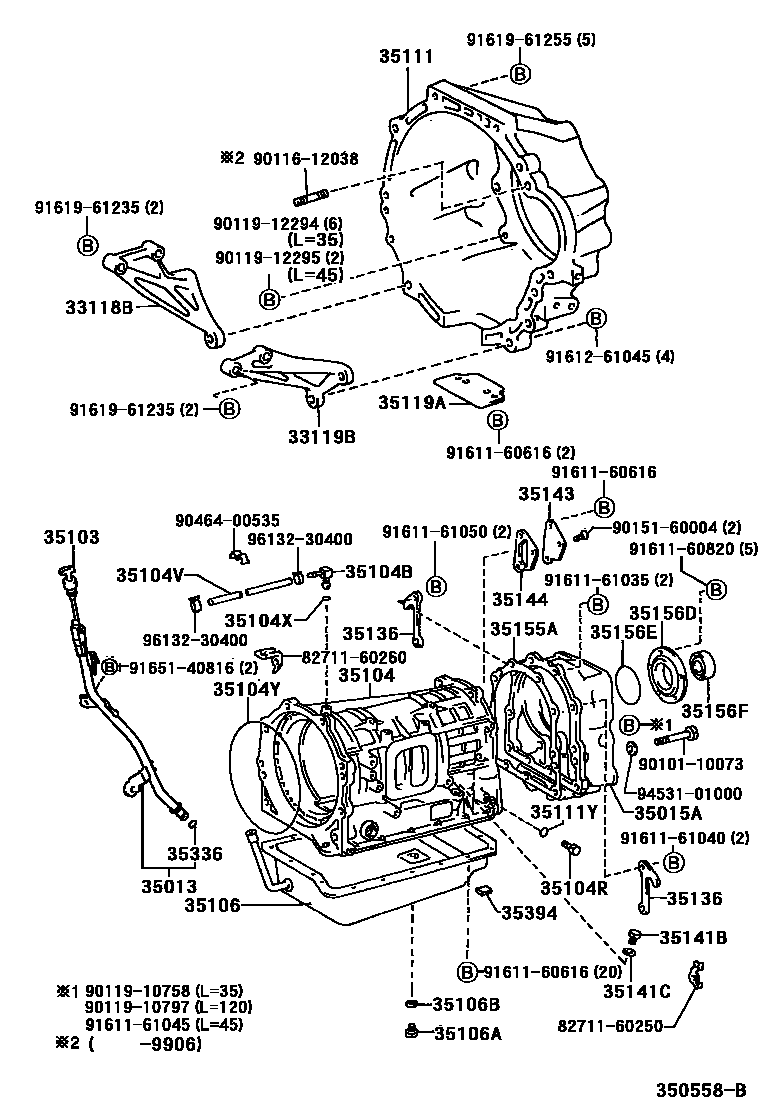

TRANSMISSION CASE & OIL PAN (ATM)

33118BPLATE, STIFFENER, RH(ATM)

main33118-36021iBXD20199610

33119BPLATE, STIFFENER, LH(ATM)

main33119-36042iBXD20199610

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-65020iBXD20199610

35015AADAPTER SUB-ASSY, TRANSMISSION CASE, REAR

main35015-65020iBXD20199610-200110

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-65020iBXD20199610

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-65020iBXD20199610-200110

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03094iBXD20199610-200110

35104RPLUG, NO.2 (FOR TRANSAXLE CASE)

main90341-08001iBXD20199610-200110

35104VHOSE (FOR BREATHER PLUG)

main90445-11083iBXD20199610-200110

35104XRING, O (FOR BREATHER PLUG)

main90301-06005iBXD20199610-200110

35104YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-99067iBXD20199610-200110

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-65010iBXD20199610-200110

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-18057iBXD20199610-200110

35106BGASKET, DRAIN PLUG (ATM)

main12157-10010iBXD20199610-200110

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-65010iBXD20199610-200110

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196iBXD20199610-200110

35119ACOVER, TRANSMISSION HOUSING

main35119-36010iBXD20199610-200110

35136HANGER, TRANSMISSION,NO.1

main35136-60020iBXD20199610-200110

35141BPLUG (FOR AUTOMATIC TRANSMISSION CASE)

main90341-16010iBXD20199610-200110

35141CWASHER, PLATE (FOR AUTOMATIC TRANSMISSION CASE)

main90201-16013iBXD20199610-200110

35143COVER, TRANSMISSION CASE, REAR

main35143-36011iBXD20199610-200110

35144GASKET, TRANSMISSION CASE REAR COVER

main35144-60011iBXD20199610-200110

35155AGASKET, TRANSMISSION CASE ADAPTER

main35182-60010iBXD20199610-200110

35156DCOVER, TRANSMISSION CASE REAR ADAPTER

main35156-60010iBXD20199610-200110

35156ERING, O(FOR TRANSMISSION CASE REAR ADAPTER COVER)

main90301-81005iBXD20199610-200110

35156FSEAL, OIL(FOR TRANSMISSION CASE REAR ADAPTER COVER)

main90311-48016iBXD20199610-200110

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iBXD20199610

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011iBXD20199610-200110

8271160250WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-60250

8271160260WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-60260

9010110073

main90101-10073

9011612038

main90116-12038

9011910758

main90119-10758

9011910797

main90119-10797

9011912294

main90119-12294

9011912295

main90119-12295

9015160004

main90151-60004

9046400535

main90464-00535

9161160616

main91611-60616

9161160820

main91611-60820

9161161035

main91611-61035

9161161040

main91611-61040

9161161045

main91611-61045

9161161050

main91611-61050

9161261045

main91612-61045

9161961235

main91619-61235

9161961255

main91619-61255

9165140816

main91651-40816

9453101000

main94531-01000

9613230400

main96132-30400

50 parts on this diagram · 1 diagram in section
