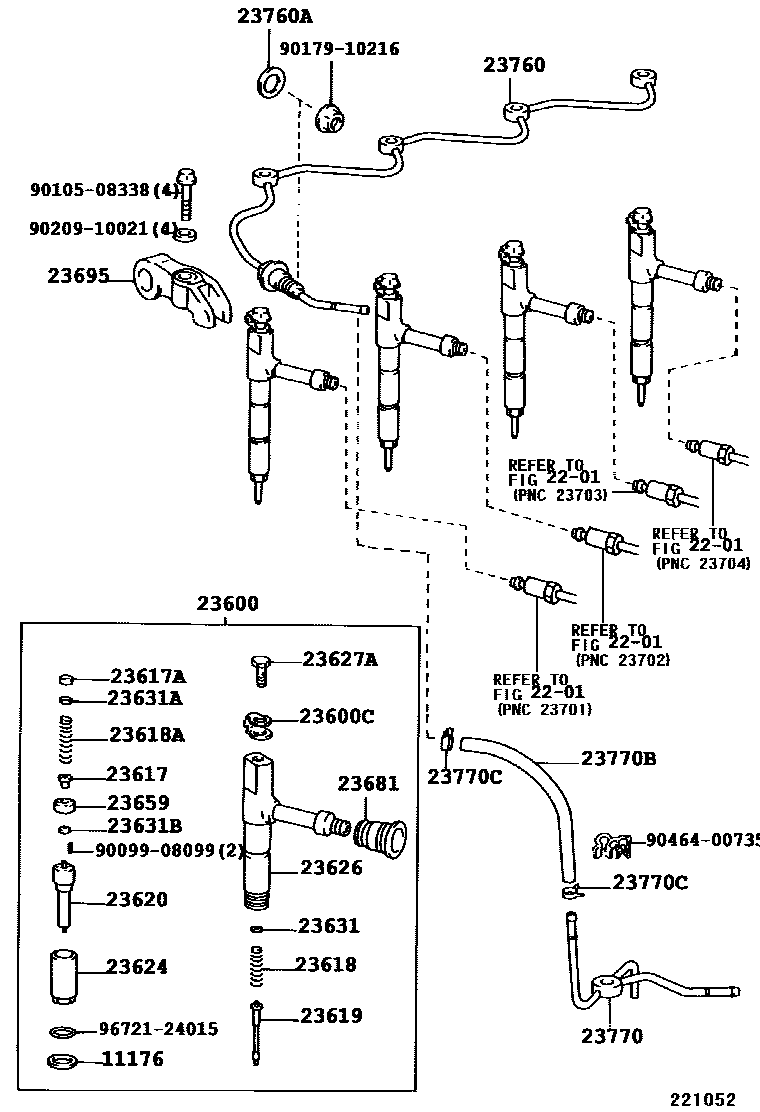

INJECTION NOZZLE
2201
23600HOLDER & NOZZLE SET, NOZZLE
sub23600-59217
23600CGASKET(FOR HOLDER & NOZZLE SET)
23617SEAT, PRESSURE SPRING
T=3.07
T=3.08
T=3.10
T=3.11
T=3.16
T=3.17
T=3.19
T=3.20
T=3.22
T=3.23
T=3.25
T=3.26
T=3.28
T=3.18
T=3.21
T=3.09
T=3.24
T=3.27
T=3.12
T=1.95
T=1.975
T=3.15
23617ASEAT, PRESSURE SPRING, NO.1
23618SPRING, NOZZLE HOLDER PRESSURE
23618ASPRING, NOZZLE HOLDER PRESSURE, NO.1
23619PIN, NOZZLE HOLDER PRESSURE
23620NOZZLE ASSY
23624NUT, NOZZLE RETAINING
23626BODY SUB-ASSY, NOZZLE
23627ASCREW, FOLLOW(FOR NOZZLE)
23631WASHER(FOR NOZZLE HOLDER PRESSURE SPRING)
T=0.8
T=0.9
T=0.975
T=1.05
T=1.125
T=1.2
T=1.275
T=1.35
T=1.425
T=1.5
T=1.575(DA=6.2)
T=0.85
T=0.875
T=0.925
T=0.95
T=1.0
T=1.025
T=1.075
T=1.1
T=1.15
T=1.175
T=1.225
T=1.25
T=1.3
T=1.325
T=1.375
T=1.4
T=1.45
T=1.475
T=1.525
T=1.55
T=1.65
T=1.725(DA=6.2)
T=1.8
T=1.875
T=1.95
T=2.0
T=2.1
T=2.175
T=1.6
T=1.625
T=0.825
T=1.675
T=1.7
T=1.75
T=1.775
T=1.825
T=1.85
T=1.9
T=1.925
T=1.975
T=2.05
T=2.075
T=2.125
T=2.15
T=2.2
23631AWASHER(FOR NOZZLE HOLDER PRESSURE SPRING NO.1)
T=1.85
T=1.95
T=2.0
T=2.1
T=2.15
T=1.525
T=1.625
T=1.675
T=1.775
T=1.9
T=2.05
T=1.575(OD=7.35)
T=1.725(OD=7.35)
T=1.000
T=1.050
T=1.100
T=1.150
T=1.200
T=1.250
T=1.300
T=1.350
T=1.400
T=1.450
T=1.500
T=1.550
T=1.600
T=1.650
T=1.700
T=1.750
T=1.800
T=1.275
T=1.325
T=1.375
T=1.425
T=1.475
T=0.950
T=0.700
T=0.750
T=0.800
T=0.850
T=0.900
T=0.975
T=1.025
T=1.075
T=1.125
T=1.175
T=1.225
23631BWASHER(FOR NOZZLE HOLDER PRESSURE SPRING NO.2)
T=1.925
T=2.0
T=1.9
T=1.95
T=1.975
23659PACKING, TIP(FOR NOZZLE)
23681SEAL, NOZZLE HOLDER
23695CLAMP, NOZZLE HOLDER, NO.1
23760AGASKET
23770PIPE ASSY, NOZZLE LEAKAGE, NO.2
23770BHOSE, FUEL
L=300(*H,L=240)
23770CCLAMP OR CLIP(FOR FUEL HOSE SET)
9009908099
main90099-08099
9010508338
main90105-08338
9017910216
main90179-10216
9020910021
main90209-10021
9046400735
main90464-00735
9672124015
main96721-24015
30 parts on this diagram · 1 diagram in section
