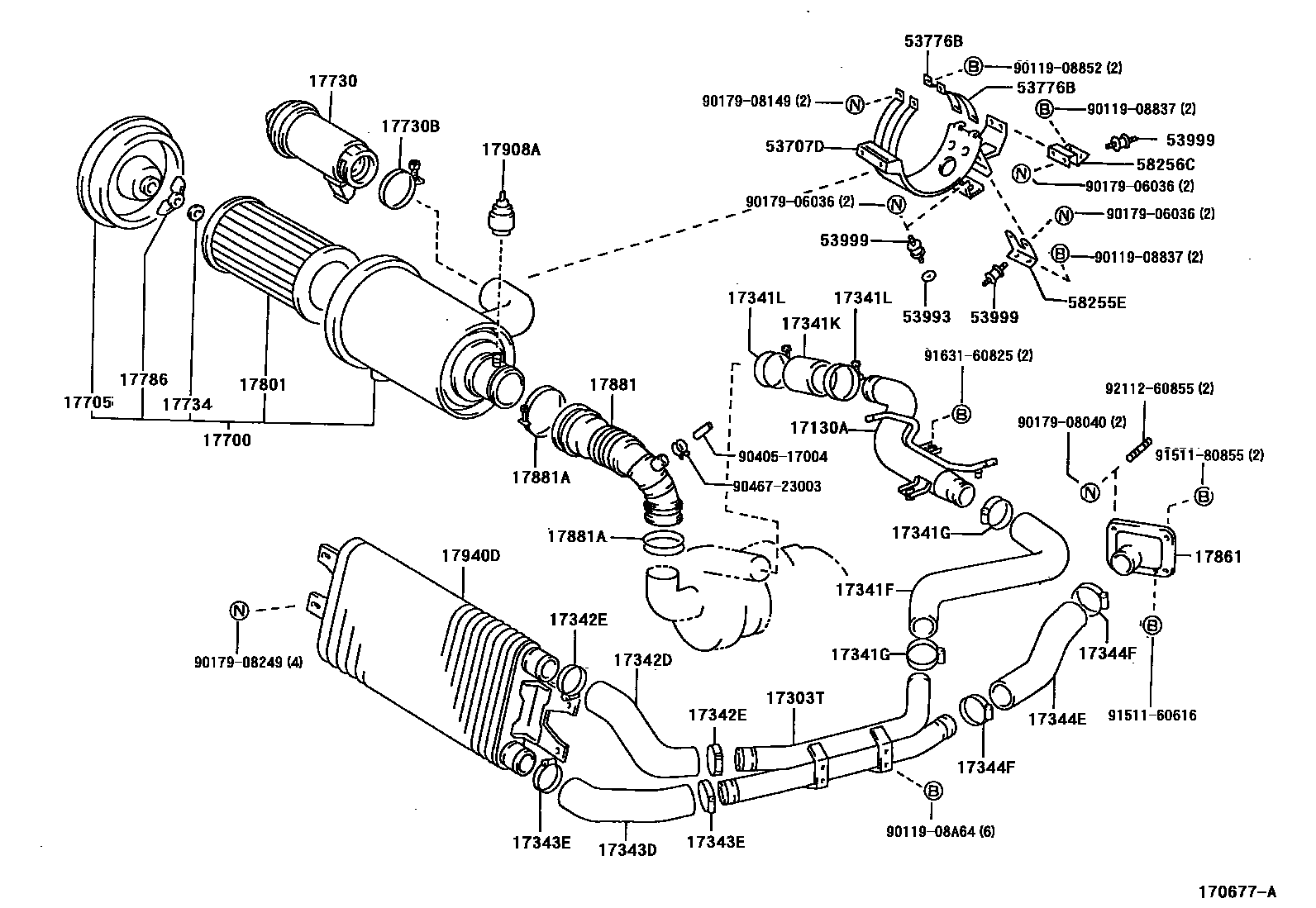

AIR CLEANER
17130APIPE ASSY, INTAKE
17303TPIPE SUB-ASSY, AIR
17341GCLAMP OR CLIP(FOR AIR HOSE, NO.1)
sub90460-65002
17341KHOSE, AIR, NO.1(FOR INTERCOOLER)
sub17341-58140
17341LCLAMP, HOSE
sub90460-65002
17342DHOSE, AIR, NO.2
17342ECLAMP OR CLIP(FOR AIR HOSE, NO.2)
sub90460-65002
17343DHOSE, AIR, NO.3
17343ECLAMP, HOSE(FOR AIR HOSE, NO.3)
sub90460-65002
17344EHOSE, AIR, NO.4
17344FCLAMP, HOSE(FOR AIR HOSE, NO.4)
sub90460-65002
17700CLEANER ASSY, AIR
17705CAP SUB-ASSY, AIR CLEANER
sub17705-58281
17730PRECLEANER ASSY, AIR W/HOSE
17730BCLAMP, HOSE(FOR PRECLEANER HOSE)
17734SEAT, AIR CLEANER CAP SPRING
17786CLAMP, AIR CLEANER
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
17861CONNECTOR, INTAKE AIR
17881HOSE, AIR CLEANER, NO.1
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
TURBO SIDE
AIR CLEANER SIDE
17908AINDICATOR SUB-ASSY, AIR CLEANER
17940DINTERCOOLER ASSY
53707DBRACKET SUB-ASSY, COOL AIR INTAKE, NO.3
53776BBRACKET, COOL AIR INTAKE DUCT MOUNT, NO.2
53993PACKING, AIR CLEANER INLET HOLE
53999CUSHION, AIR CLEANER INLET BRACKET
58255EBRACKET, AIR CLEANER
58256CBRACKET, AIR CLEANER, REAR
9011908837
main90119-08837
9011908852
main90119-08852
9011908A64
main90119-08A64
9017906036
main90179-06036
9017908040
main90179-08040
9017908149
main90179-08149
9017908249
main90179-08249
9040517004
main90405-17004
9046723003
main90467-23003
9151160616
main91511-60616
9151180855
main91511-80855
9163160825
main91631-60825
9211260855
main92112-60855
43 parts on this diagram · 1 diagram in section
