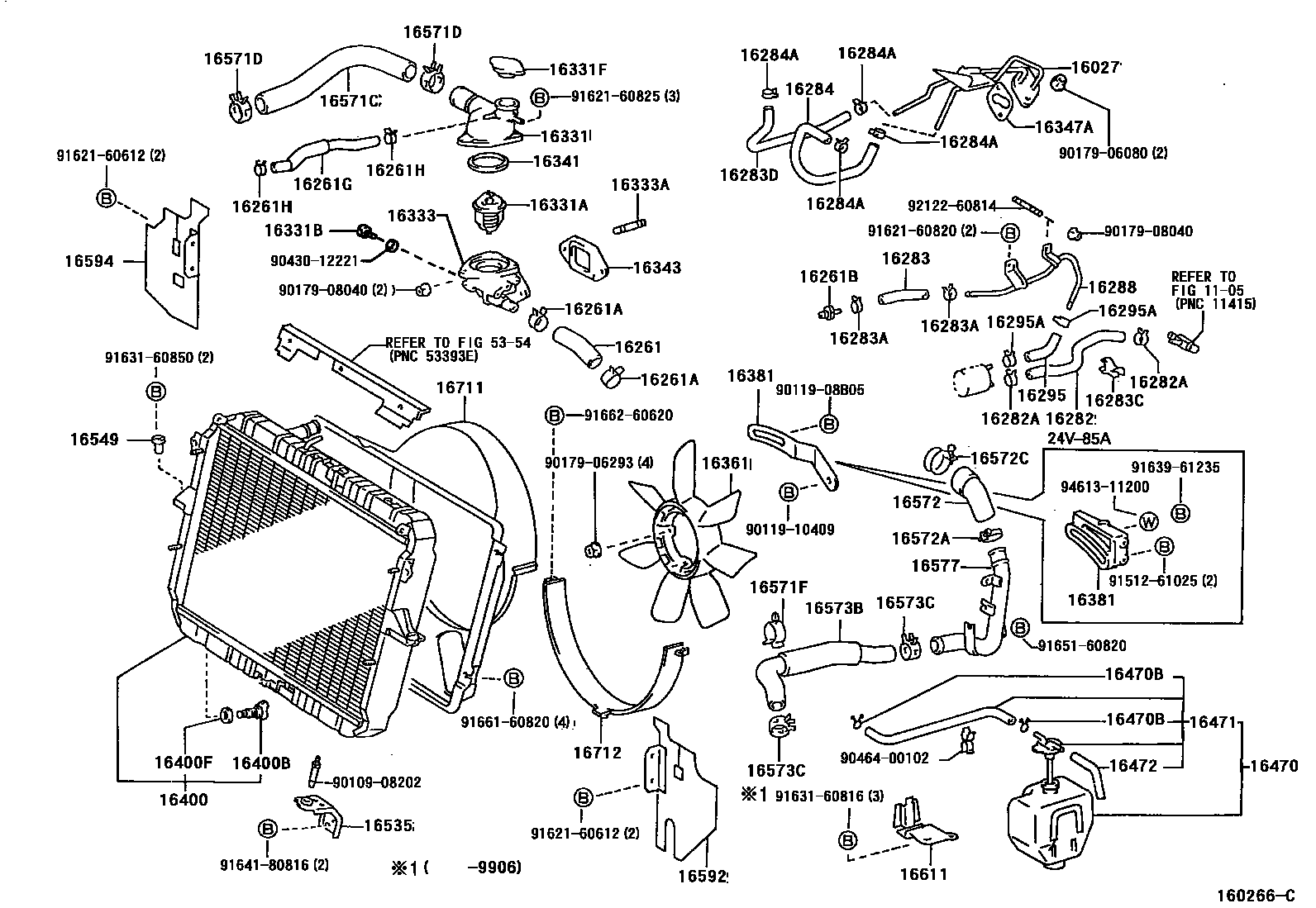

RADIATOR & WATER OUTLET
1105
16027PIPE SUB-ASSY, TURBO WATER, NO.1
16261HOSE, WATER BY-PASS
16261BUNION(FOR WATER BY-PASS HOSE)
16261GHOSE, WATER BY-PASS, NO.1
16261HCLIP(FOR WATER BY-PASS HOSE NO.1)
16282HOSE, WATER BY-PASS, NO.5
16282ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)
16283HOSE, WATER BY-PASS, NO.6
16283ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)
16283CCLAMP OR CLIP(FOR WATER BY-PASS HOSE)
16283DHOSE, WATER BY-PASS, NO.6
16284HOSE, TURBO WATER, NO.1
16284ACLIP(FOR TURBO WATER HOSE NO.1)
16288PIPE, WATER BY-PASS, NO.4
16295HOSE, WATER BY-PASS, NO.7
16295ACLIP(FOR WATER BY-PASS HOSE NO.7)
16331OUTLET, WATER
16331ATHERMOSTAT
16331BPLUG(FOR WATER OUTLET)
16331FCAP SUB-ASSY(FOR WATER OUTLET)
16333HOUSING, WATER OUTLET
16333ABOLT, STUD(FOR WATER OUTLET HOUSING)
16341GASKET, WATER OUTLET
16343GASKET, WATER OUTLET HOUSING
16347AGASKET(FOR TURBO WATER PIPE)
16361FAN
16381BAR, FAN BELT ADJUSTING
ALTERNATOR(24V-85A)
16400RADIATOR ASSY
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16470TANK ASSY, RADIATOR RESERVE
sub16470-78050
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16472HOSE, BREATHER
L=750,NO.2
NO.1
16535SUPPORT, RADIATOR, LOWER
16549COLLAR, RADIATOR SUPPORT, NO.2
16571CHOSE, RADIATOR, NO.1
16571DCLIP, RADIATOR HOSE, NO.1
sub90467-41002
16571FCLAMP OR CLIP(FOR WATER HOSE)
16572HOSE, RADIATOR, OUTLET
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
16572CCLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2)
16573BHOSE, RADIATOR, NO.3
16573CCLAMP OR CLIP, RADIATOR HOSE, NO.3
16577PIPE, RADIATOR, NO.7
16592GUIDE, RADIATOR AIR, NO.3
16594GUIDE, RADIATOR AIR, NO.2
16611BRACKET, RADIATOR RESERVE TANK
16711SHROUD, FAN
16712SHROUD, FAN, NO.2
5354
9010908202
main90109-08202
9011908B05
main90119-08B05
9011910409
main90119-10409
9017906080
main90179-06080
9017906293
main90179-06293
9017908040
main90179-08040
9043012221
main90430-12221
9046400102
main90464-00102
9151261025
main91512-61025
9162160612
main91621-60612
9162160820
main91621-60820
9162160825
main91621-60825
9163160816
main91631-60816
9163160850
main91631-60850
9163961235
main91639-61235
9164180816
main91641-80816
9165160820
main91651-60820
9166160820
main91661-60820
9166260620
main91662-60620
9212260814
main92122-60814
9461311200
main94613-11200
74 parts on this diagram · 2 diagrams in section
