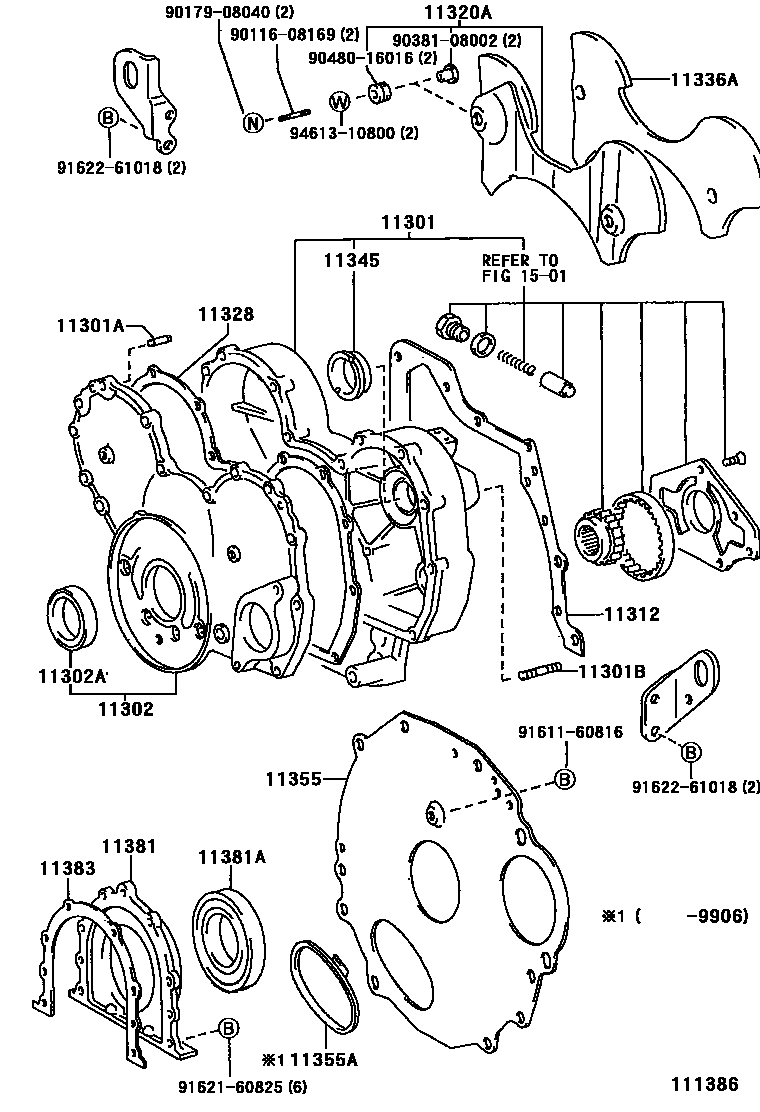

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1

11301CASE SUB-ASSY, TIMING GEAR

main11301-58010i15BFT..BXD20199610-199705

sub11301-58011

main11301-58011i15BFT..BXD20199705-199905

sub11301-58012

main11301-58012i15BFT..BXD20199905

11301APIN, STRAIGHT(FOR TIMING GEAR CASE)

main90250-08120i15BFT..BXD20199610

L=18,OD=8

11301BBOLT,STUD(FOR TIMING GEAR CASE)

main90116-08169i15BFT..BXD20199610

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-58010i15BFT..BXD20199610-199905

sub11302-58011

main11302-58011i15BFT..BXD20199905

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-50013i15BFT..BXD20199610

11312GASKET, FRONT END PLATE

main11312-56040i15BFT..BXD20199610

11320ACOVER ASSY, TIMING GEAR, NO.2

main11320-58010i15BFT..BXD20199610

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-56050i15BFT..BXD20199610-199905

main11328-58010i15BFT..BXD20199905

11336AINSULATOR, TIMING GEAR COVER

main11336-58010i15BFT..BXD20199610

11345BEARING, INJECTION PUMP GEAR THRUST

main11345-48010i15BFT..BXD20199610

11355PLATE, REAR END

main11355-58022i15BFT..BXD20199610

11355APLUG, HOLE(FOR REAR END PLATE)

main90950-01458i15BFT..BXD20199610-199906

11381RETAINER, ENGINE REAR OIL SEAL

main11381-58010i15BFT..BXD20199610-199905

sub11381-58011

main11381-58011i15BFT..BXD20199905

11381ASEAL, ENGINE REAR OIL

main90311-95011i15BFT..BXD20199610

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-56040i15BFT..BXD20199610

1501

9011608169

main90116-08169

9017908040

main90179-08040

9038108002

main90381-08002

9048016016

main90480-16016

9161160816

main91611-60816

9162160825

main91621-60825

9162261018

main91622-61018

9461310800

main94613-10800

24 parts on this diagram · 2 diagrams in section
