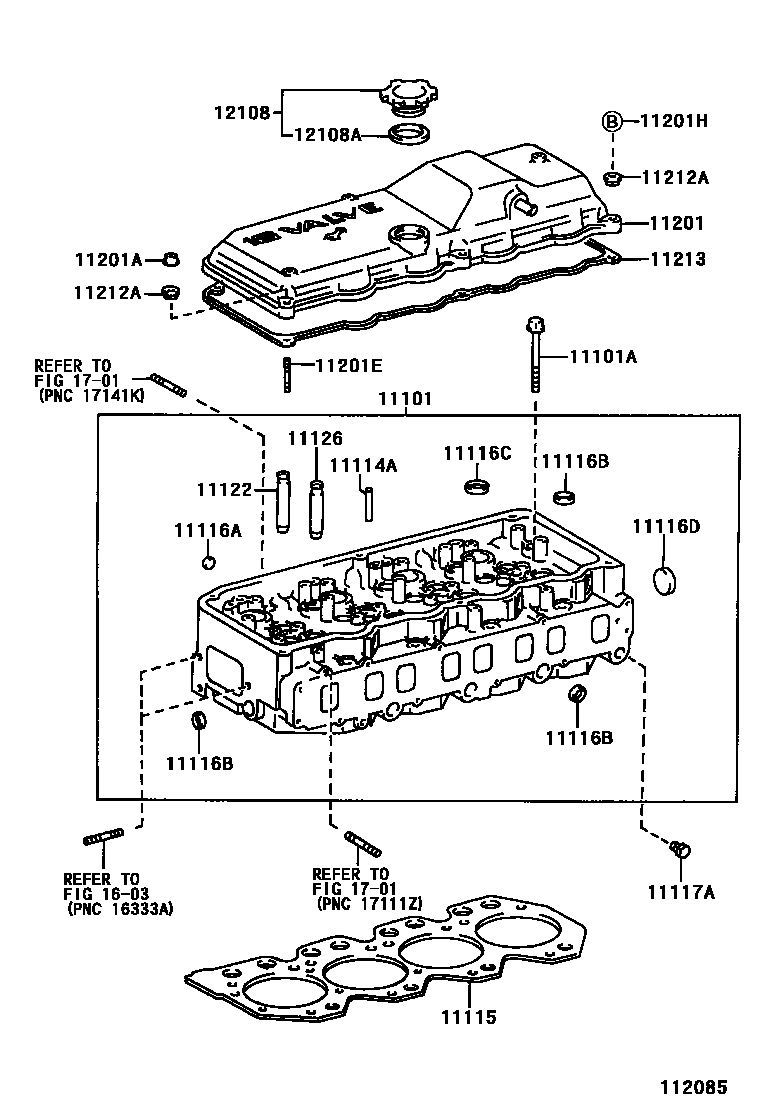

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
11101ABOLT(FOR CYLINDER HEAD SET)
11114APIN, STRAIGHT
L=53.5,OD=9
11115GASKET, CYLINDER HEAD
T=1.20
T=1.20
T=1.30
T=1.30
T=1.40
T=1.40
11116APLUG, TIGHT, NO.1
11116BPLUG, TIGHT, NO.2
11116CPLUG, TIGHT, NO.3
11116DPLUG, TIGHT, NO.4
11117APLUG, W/HEAD TAPER SCREW, NO.1
11122BUSH, INTAKE VALVE GUIDE
STD
STD
11126BUSH, EXHAUST VALVE GUIDE
STD
STD
11201COVER SUB-ASSY, CYLINDER HEAD
sub11201-58041
11201ANUT, CAP(FOR CYLINDER HEAD COVER)
11201EBOLT, STUD(FOR CYLINDER HEAD COVER SET)
11201HBOLT(FOR CYLINDER HEAD COVER)
sub91511-B0835
11212ACUSHION, CYLINDER HEAD COVER
11213GASKET, CYLINDER HEAD COVER
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
1603
1701
21 parts on this diagram · 1 diagram in section
