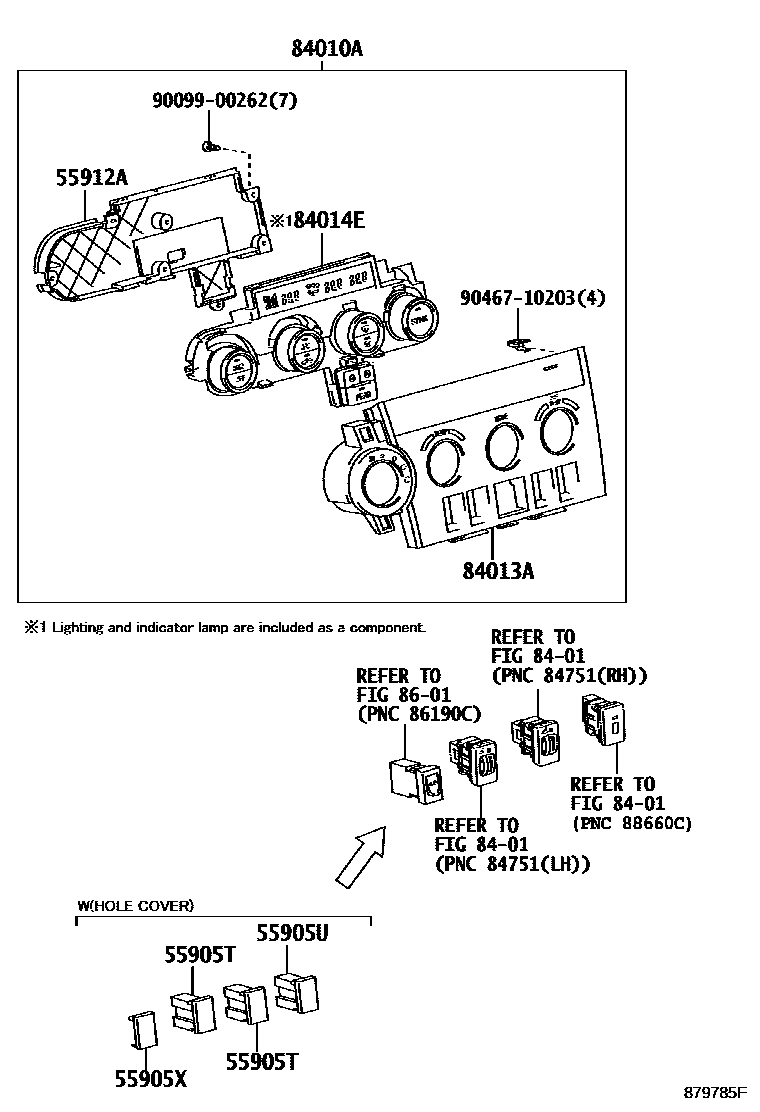

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1FRONT HEATER CONTROL 0002 1REAR HEATER CONTROL 0003 1FRONT AIR DUCT 0004 1REAR AIR DUCT 0005 1SENSOR

55905TCOVER, SWITCH HOLE, NO.1

main55539-0C090×2iUSK6#..SR5200811-201609

55905UCOVER, SWITCH HOLE, NO.2

main55539-0C110iUSK6#200811-201008

main55539-0C120iUSK6#..LIMD,SR5201008-201609

55905XCOVER, SWITCH HOLE, NO.3

main55539-0C160iUSK6#..LIMD,PLAT200901-201008

AUDIO-WITHOUT(AUDIO) 12SPEAKER

main55539-52060-C0iUSK60..LIMD,PLAT200811-200901

AUDIO-WITHOUT(AUDIO) 12SPEAKER,BLACK

55912AHOUSING, HEATER CONTROL

main55912-0C090iUSK6#200811-201609

8401

84010ACONTROL & PANEL ASSY, INTEGRATION

main84010-0CB30iUSK60..LIMD200811-200904

main84010-0CB40iUSK60..SR5200811-200904

main84010-0CB50iUSK60..PLAT200811-200904

main84010-0CD20iUSK6#..LIMD200904-201609

main84010-0CD30iUSK6#..SR5200904-201609

main84010-0CD40iUSK6#..PLAT200904-201609

84013APANEL SUB-ASSY, INTEGRATION

main84013-0C630iUSK60..LIMD,SR5200811-200904

main84013-0C640iUSK60..PLAT200811-200904

main84013-0C690iUSK6#..LIMD,SR5200904-201609

main84013-0C700iUSK6#..PLAT200904-201609

84014EBOARD SUB-ASSY, PRINTED WIRE INTEGRATION

main84014-0C490iUSK6#..LIMD,PLAT200904-201609

main84014-0C500iUSK6#..SR5200904-201609

main84014-0C790iUSK60..LIMD,PLAT200811-200904

main84014-0C800iUSK60..SR5200811-200904

8601

9009900262

main90099-00262

9046710203

main90467-10203

11 parts on this diagram · 5 diagrams in section
