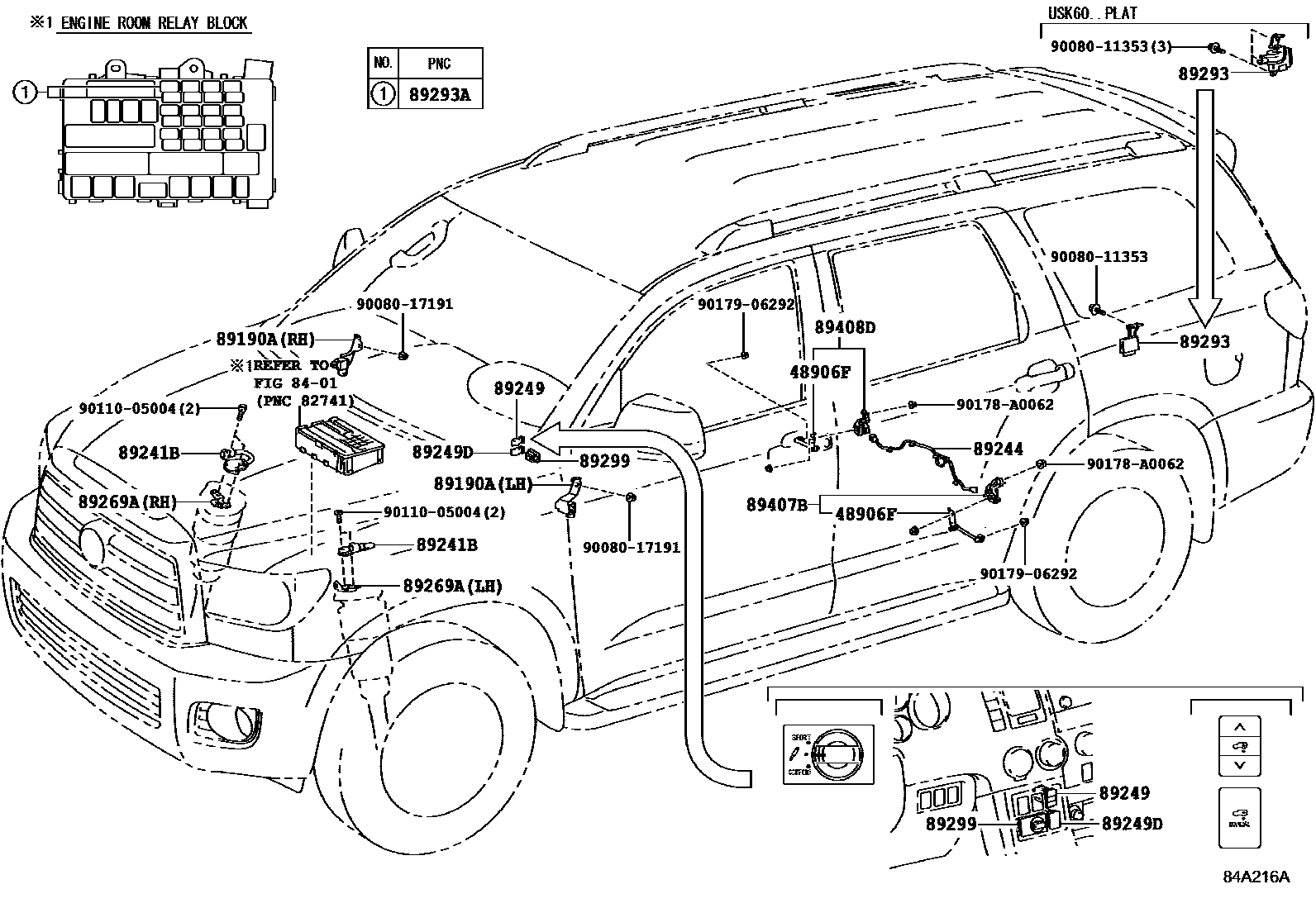

ELECTRONIC MODULATED SUSPENSION

48906FLINK SUB-ASSY, HEIGHT CONTROL SENSOR, REAR

main48906-34020iUSK6#..PLAT200811-201609

RH

main48906-34030iUSK6#..PLAT200811-201609

LH

8401

89190ASENSOR ASSY, ACCELERATION

main89190-34010iUSK6#..PLAT200811-201106

LH

main89190-34020iUSK6#..PLAT200811-201106

RH

main89190-34030iUSK6#..PLAT201107-201609

LH

main89190-34040iUSK6#..PLAT201107-201609

RH

89241BACTUATOR, ABSORBER CONTROL

main89241-34010×2iUSK6#..PLAT200811-201609

89244WIRE, ABSORBER CONTROL, REAR

main89244-0C010iUSK6#..PLAT200811-201609

89249SWITCH, ABSORBER CONTROL

main89249-0C030iUSK6#..PLAT200811-201609

89249DSWITCH, ABSORBER CONTROL NO.2

main89249-0C040iUSK6#..PLAT200811-201502

main89249-0C041iUSK6#..PLAT201503-201609

89269ABRACKET, SUSPENSION CONTROL

main89269-34010iUSK6#..PLAT200811-201609

RH

main89269-34020iUSK6#..PLAT200811-201609

LH

89293COMPUTER, SUSPENSION CONTROL

main89293-34031iUSK6#..PLAT200811-201107

main89293-34040iUSK6#..PLAT201107-201508

main89293-34041iUSK6#..PLAT201508-201609

main89293-34021iUSK60..SR5200811-200911

REAR SUSPENSION-AIR SUSPENSION

89293ARELAY, SUSPENSION CONTROL

main90080-87024iUSK6#..PLAT200811-201609

89299SWITCH, SUSPENSION CONTROL

main89299-0C010iUSK6#..PLAT200811-201609

89407BSENSOR SUB-ASSY, HEIGHT CONTROL, REAR RH

main89407-34020iUSK6#..PLAT200811-201609

89408DSENSOR SUB-ASSY, HEIGHT CONTROL, REAR LH

main89408-34030iUSK6#..PLAT200811-201609

9008011353

main90080-11353

9008017191

main90080-17191

9011005004

main90110-05004

90178A0062

main90178-A0062

9017906292

main90179-06292

18 parts on this diagram · 1 diagram in section
