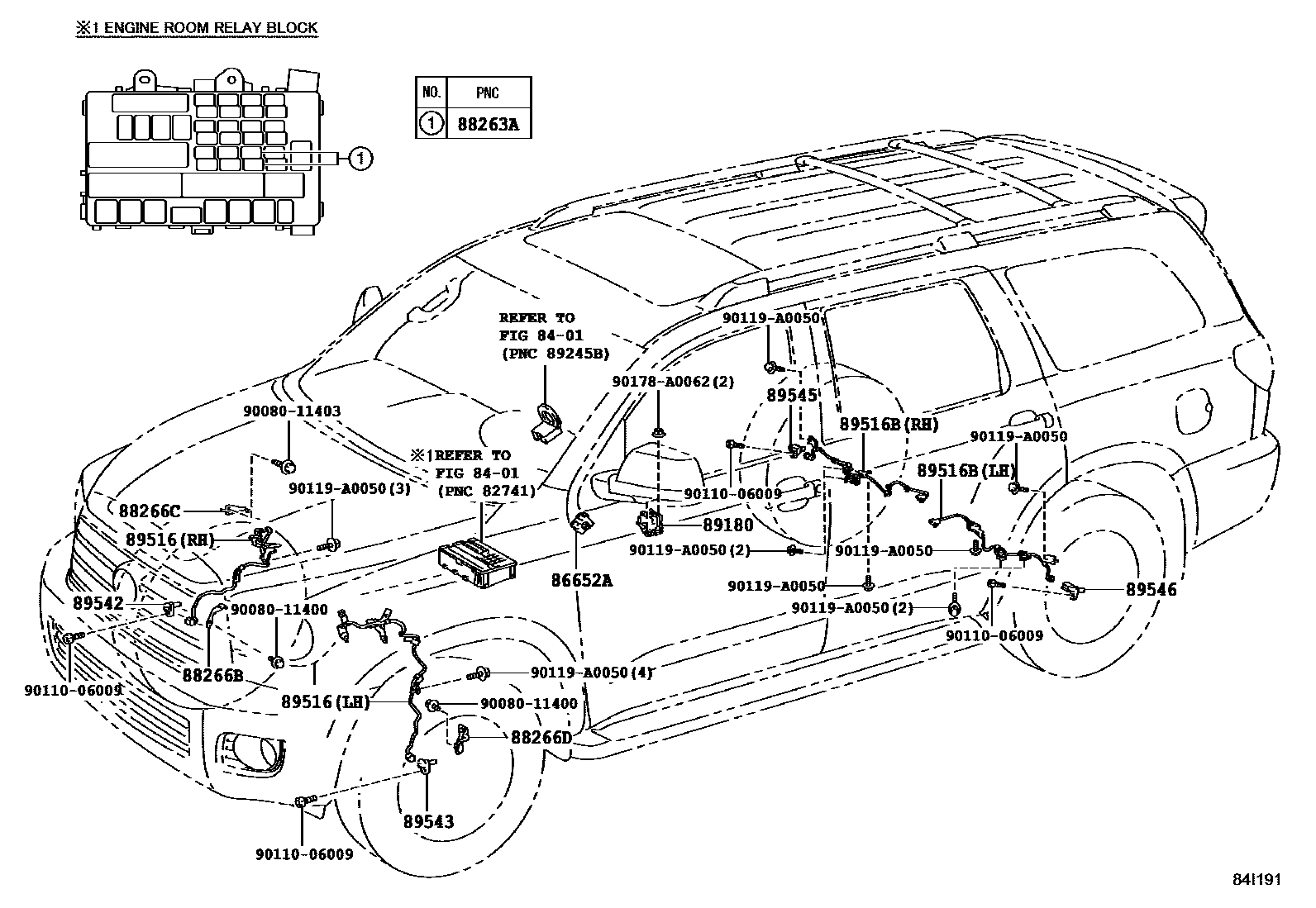

ABS & VSC

8401

86652ABUZZER ASSY, SKID CONTROL

main86652-04010iUSK60200811-200911

88263ARELAY, SKID CONTROL

main90084-98032×2iUSK6#200811-201609

88266BCLAMP, SKID CONTROL SENSOR, NO.1

main88266-0C030iUSK6#200811-201609

88266CCLAMP, SKID CONTROL SENSOR, NO.2

main88266-0C040iUSK6#200811-201609

88266DCLAMP, SKID CONTROL SENSOR, NO.3

main88266-0C080iUSK6#200811-201609

89180SENSOR ASSY, YAWRATE

main89180-0C040iUSK60200811-201303

main89180-0C050iUSK65200911-201303

main89180-0C060iUSK60201304-201609

main89180-0C070iUSK65201304-201609

89516WIRE, SKID CONTROL SENSOR

main89516-0C030iUSK6#200811-201609

RH

main89516-0C040iUSK6#200811-201609

LH

89516BWIRE, SKID CONTROL SENSOR

main89516-0C060iUSK6#200811-201609

RH

main89516-0C070iUSK6#200811-201609

LH

89542SENSOR, SPEED, FRONT RH

main89542-0C020iUSK6#200811-201609

89543SENSOR, SPEED, FRONT LH

main89543-0C020iUSK6#200811-201609

89545SENSOR, SPEED, REAR RH

main89545-0C030iUSK6#200811-201609

89546SENSOR, SPEED, REAR LH

main89546-0C030iUSK6#200811-201609

9008011400

main90080-11400

9008011403

main90080-11403

9011006009

main90110-06009

90119A0050

main90119-A0050

90178A0062

main90178-A0062

18 parts on this diagram · 1 diagram in section
