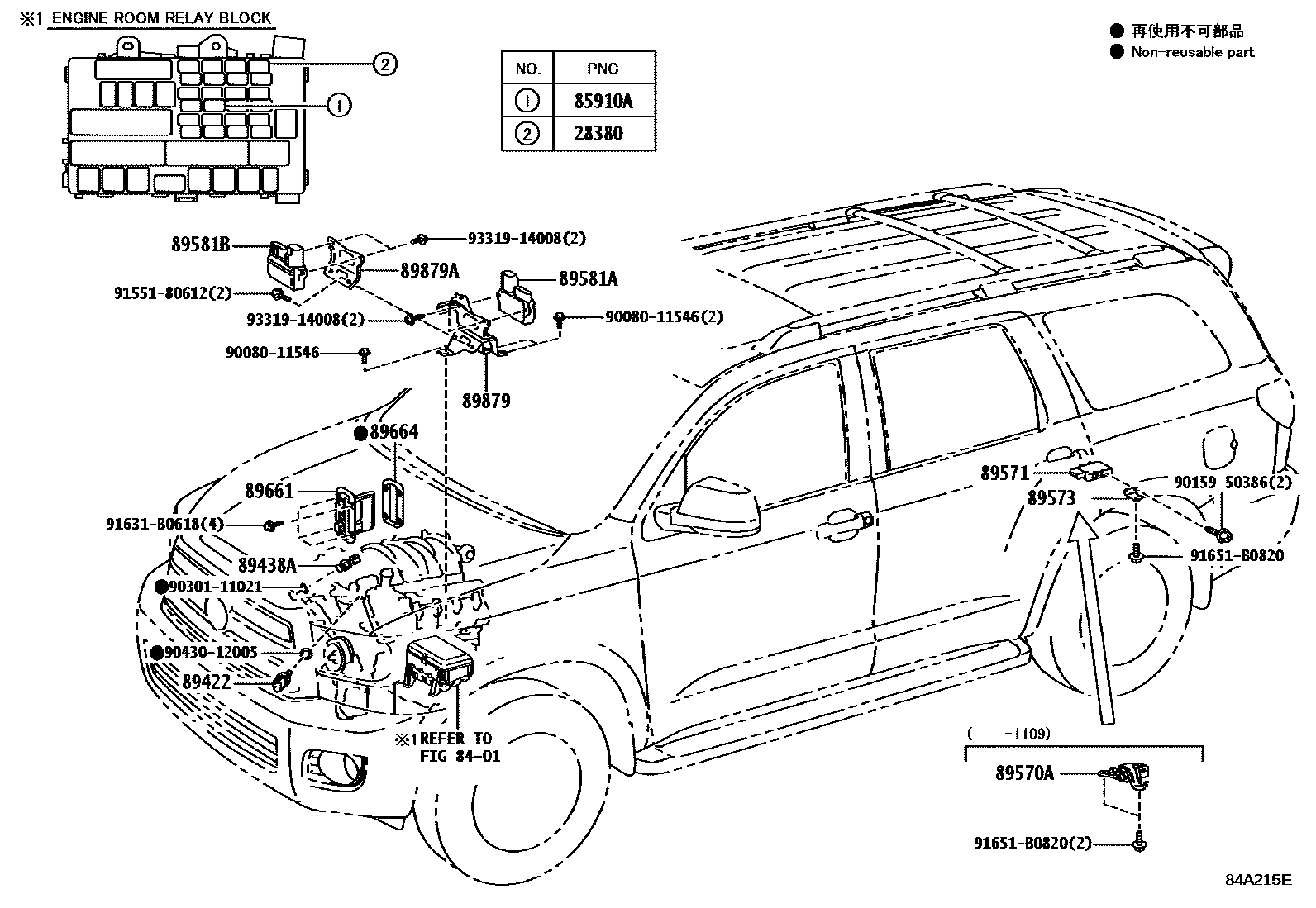

ELECTRONIC FUEL INJECTION SYSTEM

28380RELAY ASSY, FUEL PUMP

main90080-87026i3URFE..USK6#200811-201609

sub90987-02027

8401

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90080-87026iUSK6#200811-201109

sub90987-02027

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iUSK6#200811-201609

89438ASWITCH, POWER STEERING OIL PRESSURE

main89448-34020iUSK6#200811-201609

89570ACOMPUTER ASSY, FUEL PUMP CONTROL

main89570-34030iUSK6#200811-201109

89571COMPUTER, FUEL PUMP CONTROL

main89571-34070iUSK6#201109-201609

89573BRACKET, FUEL PUMP CONTROL COMPUTER

main89573-34040iUSK6#201109-201609

89581ADRIVER, AIR INJECTION CONTROL

main89581-34041iUSK60200811-200911

89581BDRIVER, AIR INJECTION CONTROL

main89581-34051iUSK60200811-200911

89661COMPUTER, ENGINE CONTROL

main89661-0CF10iUSK60200811-200911

main89661-0CK00iUSK65200911-201106

main89661-0CM40iUSK60200911-201106

main89661-0CN10iUSK6#201106-201308

main89661-0CP50iUSK6#201308-201609

89664PLATE, ENGINE CONTROL COMPUTER

main89664-34010iUSK6#200811-201609

89879BRACKET, INJECTOR DRIVER

main89589-34020iUSK60200811-200911

89879ABRACKET, INJECTOR DRIVER

main89589-34030iUSK60200811-200911

9008011546

main90080-11546

9015950386

main90159-50386

9030111021

main90301-11021

9043012005

main90430-12005

9155180612

main91551-80612

91631B0618

main91631-B0618

91651B0820

main91651-B0820

9331914008

main93319-14008

22 parts on this diagram · 1 diagram in section
