METER

0001 1METER 0002 1CLOCK

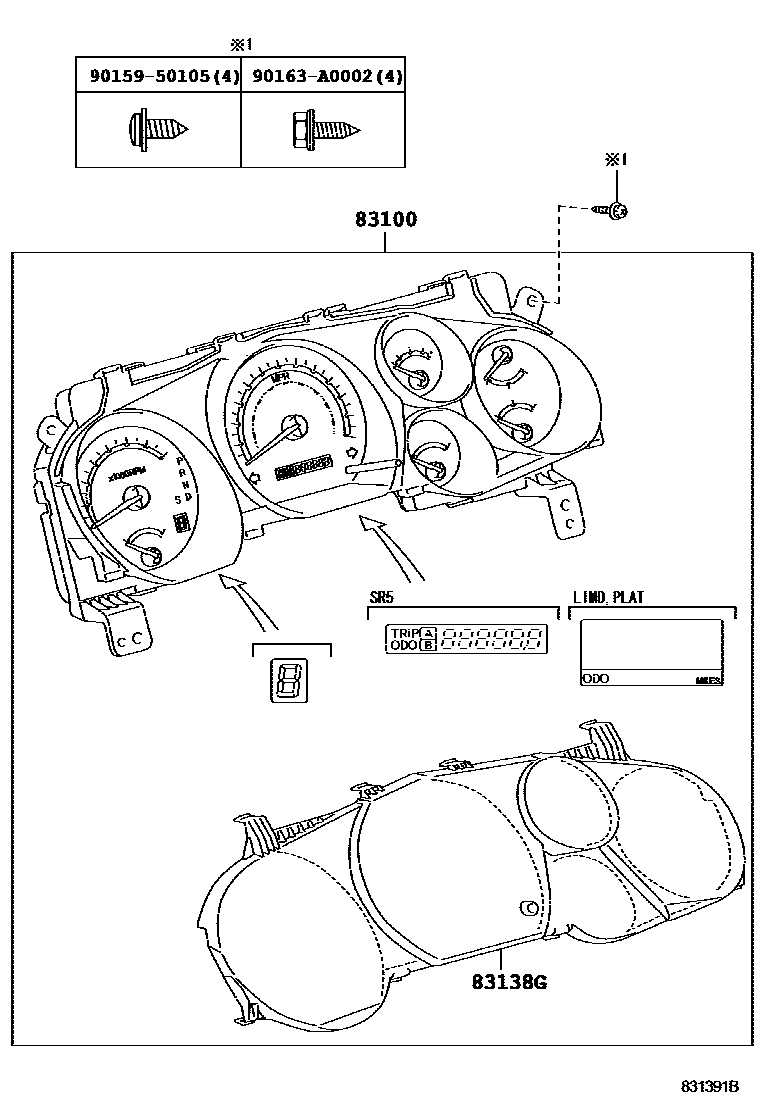

83100METER ASSY, COMBINATION

main83800-0CG20iUSK60..LIMD200811-200910

sub83800-0CG21

main83800-0CG20iUSK60..LIMD200904-200910

REAR SUSPENSION-AIR SUSPENSION

sub83800-0CG21

main83800-0CG21iUSK6#..LIMD200911-201008

REAR SUSPENSION-AIR SUSPENSION

main83800-0CG21iUSK6#..PLAT200911-201107

main83800-0CG22iUSK6#..PLAT201107-201408

main83800-0CG30iUSK60..SR5200904-200911

REAR SUSPENSION-AIR SUSPENSION

main83800-0CG30iUSK60..SR5200811-200904

main83800-0CJ00iUSK60..SR5200904-200910

sub83800-0CJ01

main83800-0CJ01iUSK6#..SR5200911-201107

main83800-0CJ02iUSK6#..SR5201107-201408

main83800-0CJ10iUSK60..LIMD200904-200910

sub83800-0CJ11

main83800-0CJ11iUSK6#..LIMD200911-201107

main83800-0CJ12iUSK6#..LIMD201107-201408

main83800-0CP50iUSK6#..PLAT201408-201609

main83800-0CQ20iUSK6#..SR5201408-201609

main83800-0CQ30iUSK6#..LIMD201408-201609

83138GGLASS, COMBINATION METER

main83852-0C880iUSK6#..LIMD,PLAT200811-201609

main83852-0C890iUSK6#..SR5200811-201609

9015950105

main90159-50105

90163A0002

main90163-A0002

4 parts on this diagram · 2 diagrams in section
