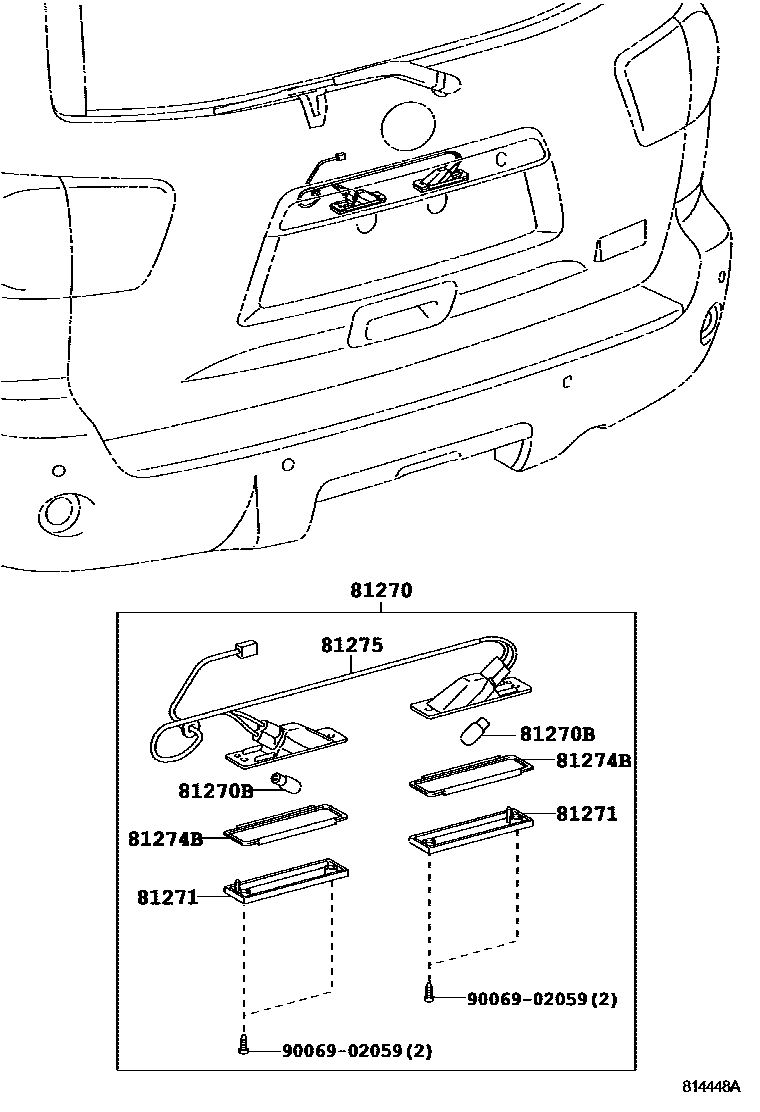

REAR LICENSE PLATE LAMP

81270LAMP ASSY, LICENSE PLATE

main81270-0C030iUSK6#200811-201609

81270BBULB (FOR LICENSE PLATE LAMP)

main90981-12010iUSK6#200811-201609

12V 5W

81271LENS, LICENSE PLATE LAMP

main81271-08010iUSK6#200811-201609

81274BPACKING, LICENSE PLATE LAMP

main81274-08010iUSK6#200811-201609

81275SOCKET AND WIRE, LICENSE PLATE LAMP

main81275-0C030iUSK6#200811-201609

9006902059

main90069-02059

6 parts on this diagram · 1 diagram in section
