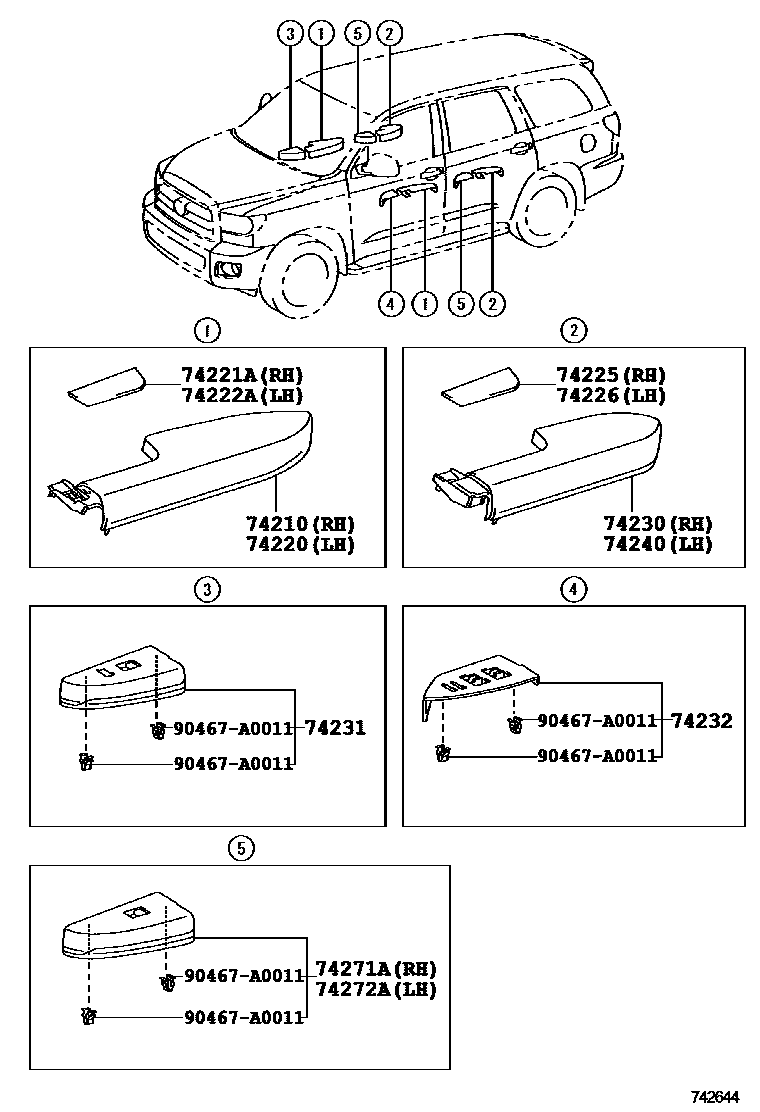

ARMREST & VISOR
74210ARMREST ASSY, FRONT, RH
GRAY,TRIM1#
REDROCK,TRIM2#
SAND BEIGE,TRIM4#
74220ARMREST ASSY, FRONT, LH
GRAY,TRIM1#
REDROCK,TRIM2#
SAND BEIGE,TRIM4#
74221ACOVER, FRONT DOOR ARMREST, RH
74222ACOVER, FRONT DOOR ARMREST, LH
74225CAP, DOOR ARMREST, REAR RH
74226CAP, DOOR ARMREST, REAR LH
74230ARMREST ASSY, REAR, RH
GRAY,TRIM1#
REDROCK,TRIM2#
SAND BEIGE,TRIM4#
74231PANEL, FRONT ARMREST BASE, UPPER RH
74232PANEL, FRONT ARMREST BASE, UPPER LH
74240ARMREST ASSY, REAR, LH
GRAY,TRIM1#
REDROCK,TRIM2#
SAND BEIGE,TRIM4#
74271APANEL, REAR DOOR ARMREST BASE, UPPER RH
74272APANEL, REAR DOOR ARMREST BASE, UPPER LH
90467A0011
main90467-A0011
13 parts on this diagram · 2 diagrams in section
