SEAT BELT

0001 1FRONT SEAT 0002 1REAR NO.1 SEAT - 7S 0003 1REAR NO.1 SEAT - 8S 0004 1REAR NO.2 SEAT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-0C010-B0iUSK6#..LIMD,SR5200811-201609

LT.GRAY,TRIM1#,2#

main73023-0C010-B0iUSK6#..PLAT200811-201609

LT.GRAY,TRIM1#

main73023-0C010-E0iUSK6#200811-201609

SAND BEIGE,TRIM4#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-0C010-B0iUSK6#..PLAT200811-201609

LT.GRAY,TRIM1#,2#

main73024-0C010-B0iUSK6#..PLAT200811-201609

LT.GRAY,TRIM1#

main73024-0C010-E0iUSK6#200811-201609

SAND BEIGE,TRIM4#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-06040iUSK6#¥4,410200811-201210

main73200-0C020iUSK6#¥3,680201211-201609

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-0C120-B0iUSK60200811-200904

GRAY,TRIM1#

main73210-0C120-C0iUSK60..PLAT200811-200904

BLACK,TRIM2#

main73210-0C120-E0iUSK60200811-200904

SAND BEIGE,TRIM4#

main73210-0C121-B0iUSK6#200904-201109

GRAY,TRIM1#

sub73210-0C121¥31,500

main73210-0C121-B1iUSK6#201109-201609

GRAY,TRIM1#

sub73210-0C121¥31,500

main73210-0C121-C0iUSK6#..PLAT200904-201109

BLACK,TRIM2#

sub73210-0C121¥31,500

main73210-0C121-C1iUSK6#..PLAT201109-201609

BLACK,TRIM2#

sub73210-0C121¥31,500

main73210-0C121-E0iUSK6#200904-201109

IVORY,TRIM4#

sub73210-0C121¥31,500

main73210-0C121-E1iUSK6#201109-201609

SAND BEIGE,TRIM4#

sub73210-0C121¥31,500

73219STOPPER, TONGUE PLATE

main73219-02010iUSK6#¥80200811-201609

BLACK

main73219-02020iUSK6#¥80200811-201609

GRAY

main73219-02030iUSK6#¥80200811-201609

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-0C110-B0iUSK60200811-200904

GRAY,TRIM1#

main73220-0C110-C0iUSK60..PLAT200811-200904

BLACK,TRIM2#

main73220-0C110-E0iUSK60200811-200904

SAND BEIGE,TRIM4#

main73220-0C140-B0iUSK6#200904-201109

GRAY,TRIM1#

sub73220-0C140

main73220-0C140-B1iUSK6#201109-201609

GRAY,TRIM1#

sub73220-0C140

main73220-0C140-C0iUSK6#..PLAT200904-201109

BLACK,TRIM2#

sub73220-0C140

main73220-0C140-C1iUSK6#..PLAT201109-201609

BLACK,TRIM2#

sub73220-0C140

main73220-0C140-E0iUSK6#200904-201109

IVORY,TRIM4#

sub73220-0C140

main73220-0C140-E1iUSK6#201109-201609

SAND BEIGE,TRIM4#

sub73220-0C140

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-0C150-B0iUSK6#..SR5200811-201609

GRAY,TRIM1#

main73230-0C150-E0iUSK6#..SR5200811-201609

SAND BEIGE,TRIM4#

main73230-0C160-B0iUSK6#..LIMD,PLAT200811-201609

GRAY,TRIM1#

main73230-0C160-C0iUSK6#..PLAT200811-201609

BLACK,TRIM2#

main73230-0C160-E0iUSK6#..LIMD,PLAT200811-201609

SAND BEIGE,TRIM4#

73233COVER, LAP BELT OUTER ANCHOR

main73233-0C010-C0iUSK6#..LIMD,SR5201106-201609

BLACK,TRIM1#,4#

main73233-0C010-C0iUSK6#..PLAT200811-201106

BLACK,TRIM1#,2#,44

main73233-0C010-C0iUSK6#..PLAT200811-201106

BLACK,TRIM1#,44

main73233-0C010-C0iUSK6#..PLAT201106-201609

BLACK,TRIM1#,2#,4#

main73233-0C010-E0iUSK6#200811-201106

DK. BROWN,TRIM44

73240BELT ASSY, FRONT SEAT INNER, LH

main73240-0C080-B0iUSK6#..LIMD200811-201609

GRAY,TRIM1#

main73240-0C080-E0iUSK6#..LIMD200811-201609

SAND BEIGE,TRIM4#

main73240-0C090-B0iUSK6#..SR5200811-201609

GRAY,TRIM1#

main73240-0C090-E0iUSK6#..SR5200811-201609

SAND BEIGE,TRIM4#

main73240-0C100-B0iUSK6#..PLAT200811-201609

GRAY,TRIM1#

main73240-0C100-C0iUSK6#..PLAT200811-201609

BLACK,TRIM2#

main73240-0C100-E1iUSK6#..PLAT200811-201609

SAND BEIGE,TRIM4#

732140E010PLATE, FRONT SEAT BELT ANCHOR

main73214-0E010¥260

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010¥170

9008017195

main90080-17195

90105A0082

main90105-A0082

90105A0088

main90105-A0088

90105A0186

main90105-A0186

90109A0033

main90109-A0033

90178A0081

main90178-A0081

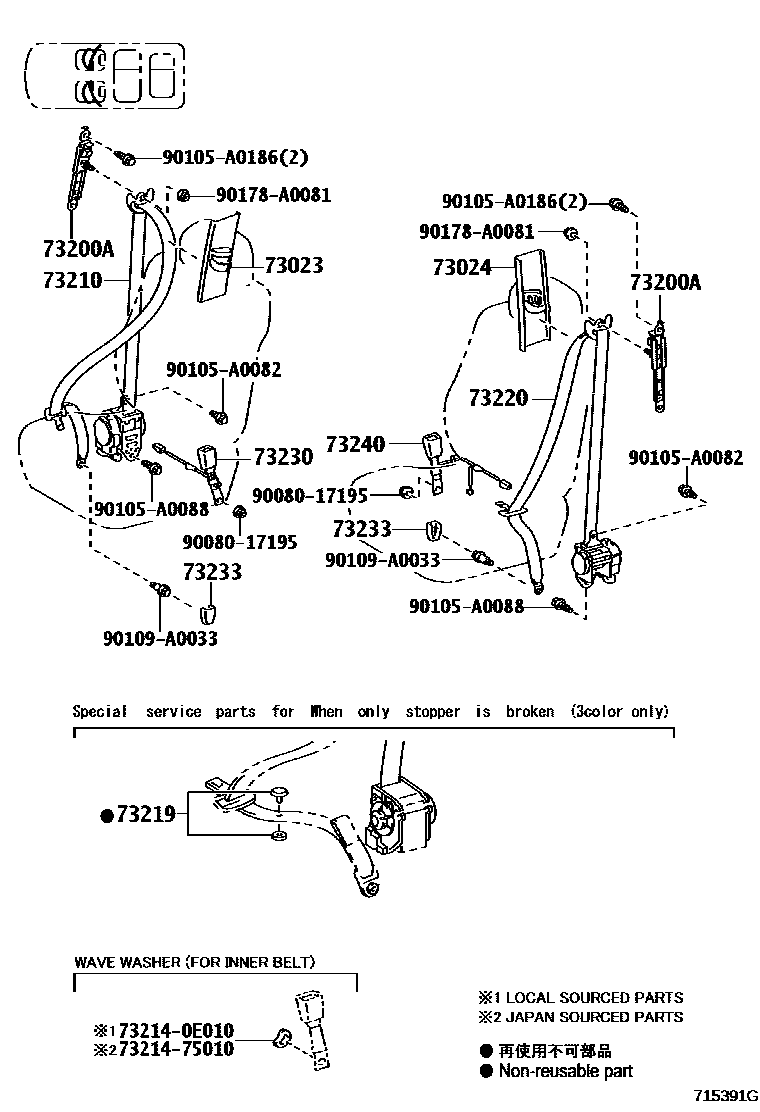

17 parts on this diagram · 4 diagrams in section
