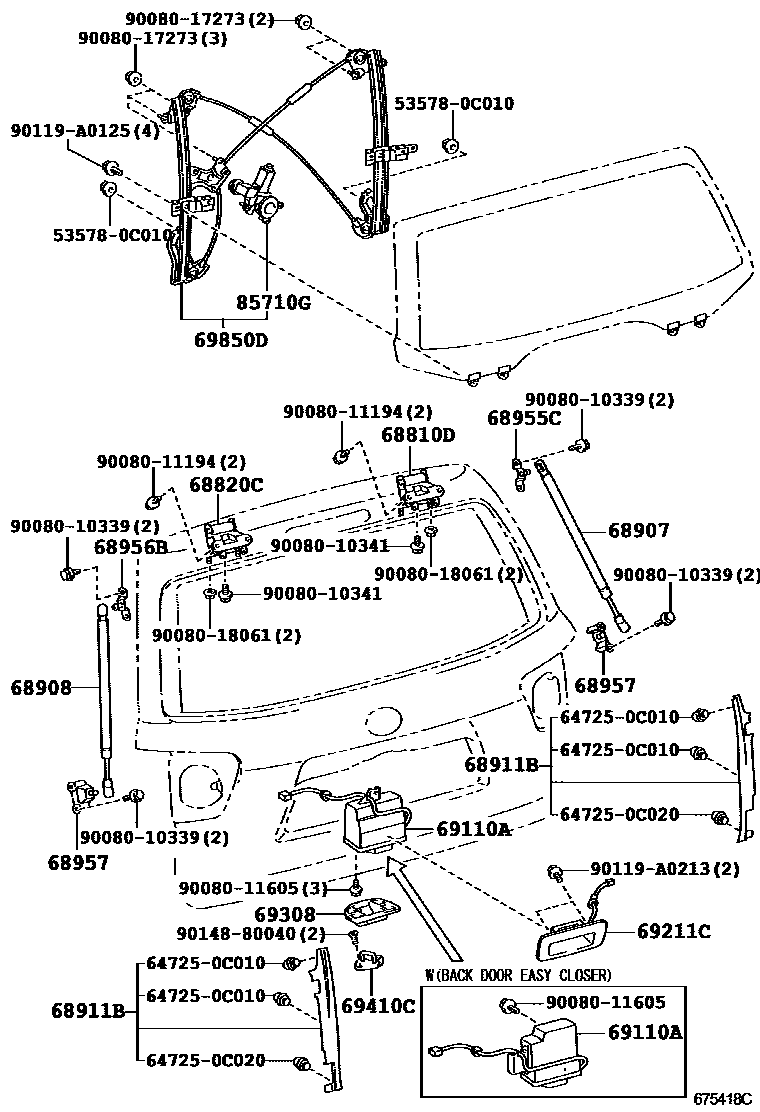

BACK DOOR LOCK & HINGE
68810DHINGE ASSY, BACK DOOR, RH
68820CHINGE ASSY, BACK DOOR, LH
68907STAY SUB-ASSY, BACK DOOR DAMPER, RH
sub68907-0C040
68908STAY SUB-ASSY, BACK DOOR DAMPER, LH
sub68908-0C040
68955CBRACKET, BACK WINDOW STAY, UPPER RH
68956BBRACKET, BACK DOOR STAY, UPPER LH
68957BRACKET, BACK DOOR STAY
RH
LH
69110ALOCK ASSY, BACK DOOR W/MOTOR
POWER BACK DOOR-WITH
POWER BACK DOOR-WITH
POWER BACK DOOR-WITH
69211CHANDLE, BACK DOOR OUTSIDE
SUPER WHITE 2,040
WHITE PEARL CS.,071
WHITE PEARL CS.,070
SILVER ME.,1D6
GRAY ME.,1F9
GRAY ME.,1G3
BLACK,202
DK RED MC,3Q7
BLACKISH RED MC.,3R0
BEIGE M. M.,4Q2
BRONZE M.M.,4T3
BEIGE ME.,4T8
DK.GREEN M.M.,6T8
DK.GREEN MC.,6V4
DK.BLUE MC.,8S6
69308PROTECTOR SUB-ASSY, BACK DOOR LOCK
69410CPLATE ASSY, BACK DOOR LOCK STRIKER
69850DREGULATOR ASSY, BACK DOOR POWER WINDOW
85710GMOTOR ASSY, POWER WINDOW REGULATOR, RH
535780C010NUT, HOOD LOCK
main53578-0C010
647250C010RETAINER, LUGGAGE COMPARTMENT COVER, NO.1
main64725-0C010
647250C020RETAINER, LUGGAGE COMPARTMENT COVER, NO.1
main64725-0C020
9008010339
main90080-10339
9008010341
main90080-10341
9008011194
main90080-11194
9008011605
main90080-11605
9008017273
main90080-17273
9008018061
main90080-18061
90119A0125
main90119-A0125
90119A0213
main90119-A0213
9014880040
main90148-80040
26 parts on this diagram · 2 diagrams in section
