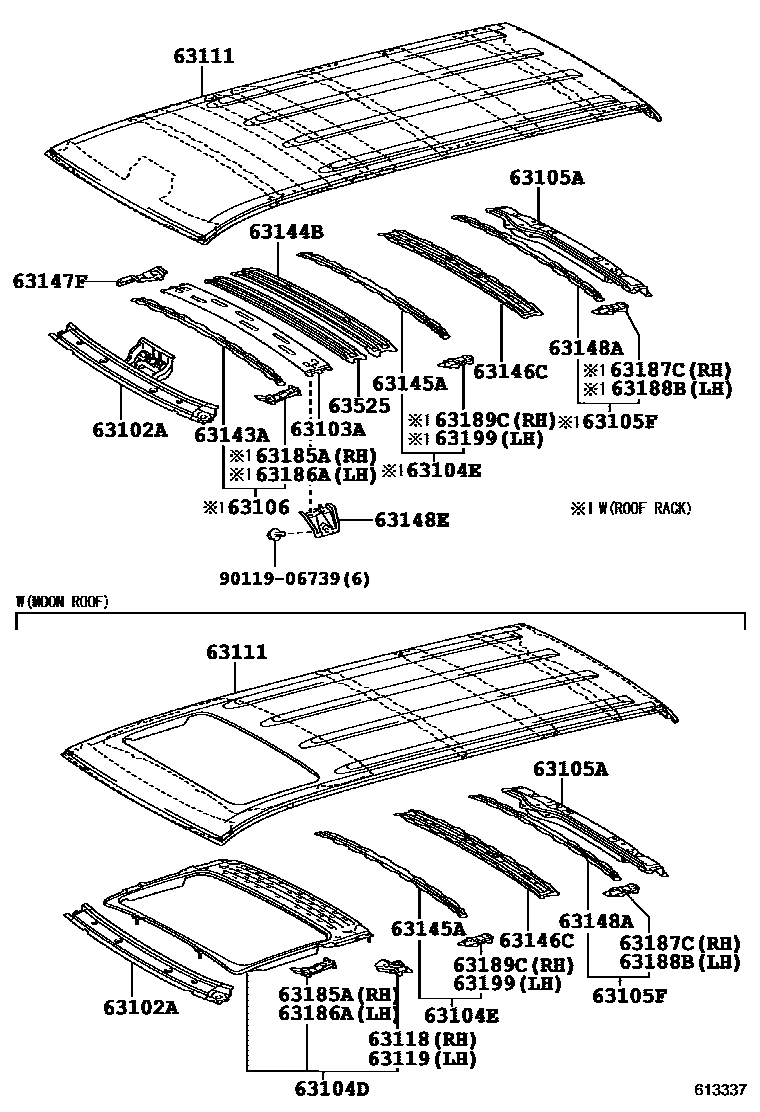

ROOF PANEL & BACK PANEL
63102APANEL SUB-ASSY, WINDSHIELD HEADER
MOON ROOF-WITH
63103AREINFORCEMENT SUB-ASSY, ROOF PANEL
63104DREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2
MOON ROOF-WITH
63104EREINFORCEMENT SUB-ASSY, ROOF PANEL, REAR
63105AFRAME SUB-ASSY, BACK DOOR OPENING
63105FREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.3
63106REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.4
63111PANEL, ROOF
MOON ROOF-WITH
63118SUPPORT, ROOF PANEL, RH
MOON ROOF-WITH
63119SUPPORT, ROOF PANEL, LH
MOON ROOF-WITH
63143AREINFORCEMENT, ROOF PANEL
63144BREINFORCEMENT, ROOF PANEL, NO.4
63145AREINFORCEMENT, ROOF PANEL, NO.5
63146CREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.6
63147FBRACKET, ROOF PANEL REINFORCEMENT, RH
63148AREINFORCEMENT, ROOF PANEL, NO.7
63148EBRACKET, ROOF PANEL REINFORCEMENT, LH
63185ABRACKET, ROOF RACK, FRONT RH
63186ABRACKET, ROOF RACK, FRONT LH
63187CBRACKET, ROOF RACK, NO.1 REAR RH
63188BBRACKET, ROOF RACK, NO.1 REAR LH
63189CBRACKET, ROOF RACK, CENTER RH
63199BRACKET, ROOF RACK, CENTER LH
63525BRACKET, TELEVISION RACK, NO.1
9011906739
main90119-06739
25 parts on this diagram · 3 diagrams in section
