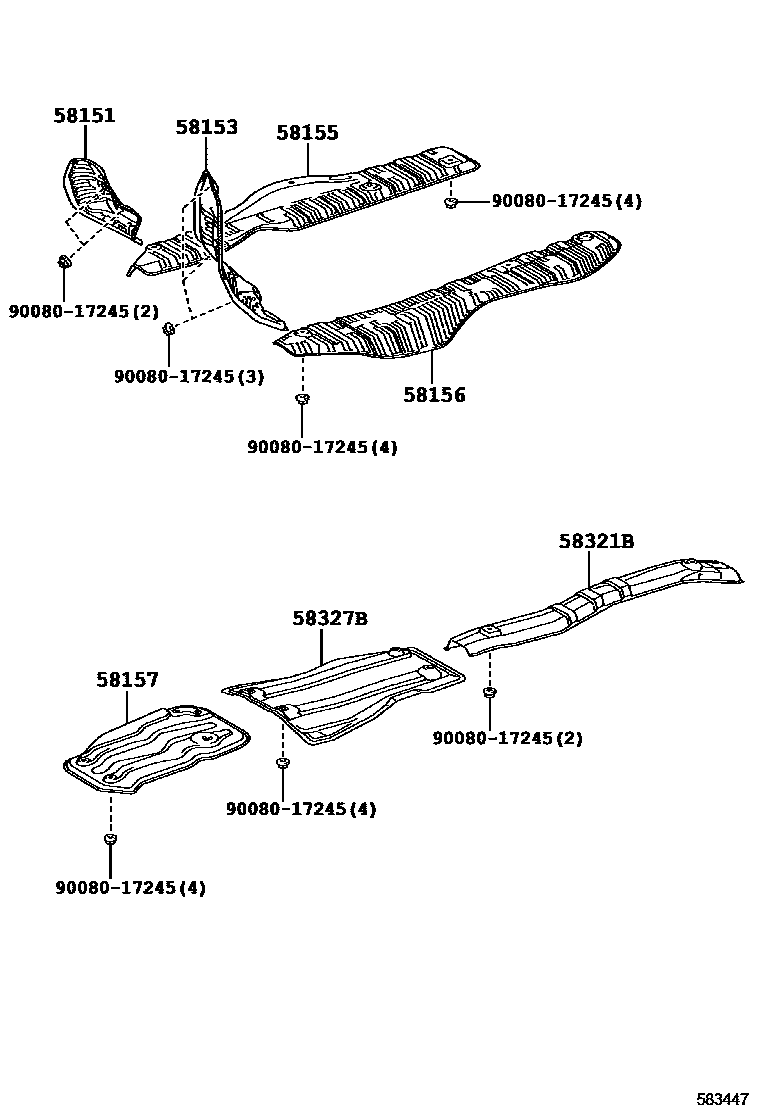

FLOOR INSULATOR
58151INSULATOR, FRONT FLOOR HEAT, NO.1
sub58151-0C041
58153INSULATOR, FRONT FLOOR HEAT, NO.2
sub58153-0C051
58155INSULATOR, FRONT FLOOR HEAT, NO.3
sub58155-0C021
58156INSULATOR, FRONT FLOOR HEAT, NO.4
sub58156-0C012
58157INSULATOR, FRONT FLOOR HEAT, NO.5
sub58157-0C011
58321BINSULATOR, REAR FLOOR HEAT, NO.1
sub58321-0C011
58327BINSULATOR, MAIN MUFFLER HEAT
sub58327-0C091
9008017245
main90080-17245
8 parts on this diagram · 1 diagram in section
