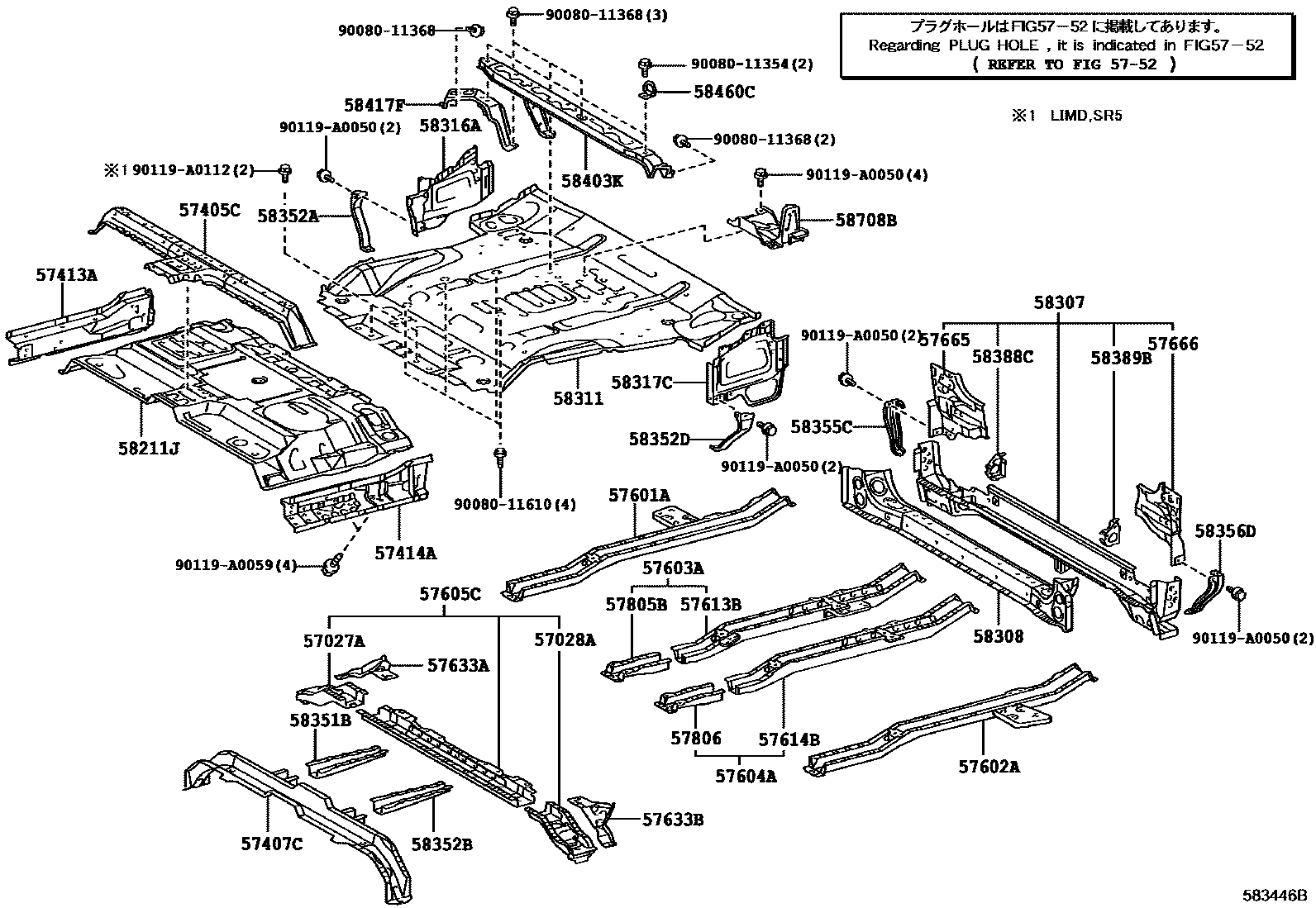

REAR FLOOR PANEL & REAR FLOOR MEMBER
57027ABRACKET SUB-ASSY, BODY MOUNTING, NO.4 RH
57028ABRACKET SUB-ASSY, BODY MOUNTING, NO.4 LH
57407CMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1
57413AMEMBER, FLOOR SIDE, INNER REAR RH
57414AMEMBER, FLOOR SIDE, INNER REAR LH
5752
57601AMEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57602AMEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH
57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH
57605CMEMBER SUB-ASSY, REAR FLOOR CROSS
57613BMEMBER, REAR FLOOR SIDE CENTER, RH
57614BMEMBER, REAR FLOOR SIDE, CENTER LH
57633AEXTENSION, REAR FLOOR SIDE MEMBER, REAR RH
57633BEXTENSION, REAR FLOOR SIDE MEMBER, REAR LH
57805BREINFORCEMENT SUB-ASSY, BELT ANCHOR, RH
57806REINFORCEMENT SUB-ASSY, BELT ANCHOR, LH
58211JPAN, CENTER FLOOR
58308PANEL SUB-ASSY, BODY LOWER BACK, INNER
58311PAN, REAR FLOOR
58351BREINFORCEMENT, REAR FLOOR PANEL, RH
58352ABRACKET, REAR FLOOR STAY
58352BREINFORCEMENT, REAR FLOOR PANEL, LH
58352DBRACKET, REAR FLOOR STAY
58355CBRACKET, REAR BUMPER ARM
58356DBRACKET, REAR BUMPER ARM, LH
58388CPLATE, BODY LOWER BACK REINFORCEMENT, RH
58389BPLATE, BODY LOWER BACK REINFORCEMENT, LH
58403KREINFORCEMENT SUB-ASSY, DECK BOARD
58417FBRACKET, DECK BOARD
58460CSTRIKER ASSY, LUGGAGE HOLD BELT
58708BCARRIER, SUB-ASSY, JACK(FOR REAR FLOOR)
9008011354
main90080-11354
9008011368
main90080-11368
9008011610
main90080-11610
90119A0050
main90119-A0050
90119A0059
main90119-A0059
90119A0112
main90119-A0112
44 parts on this diagram · 1 diagram in section
