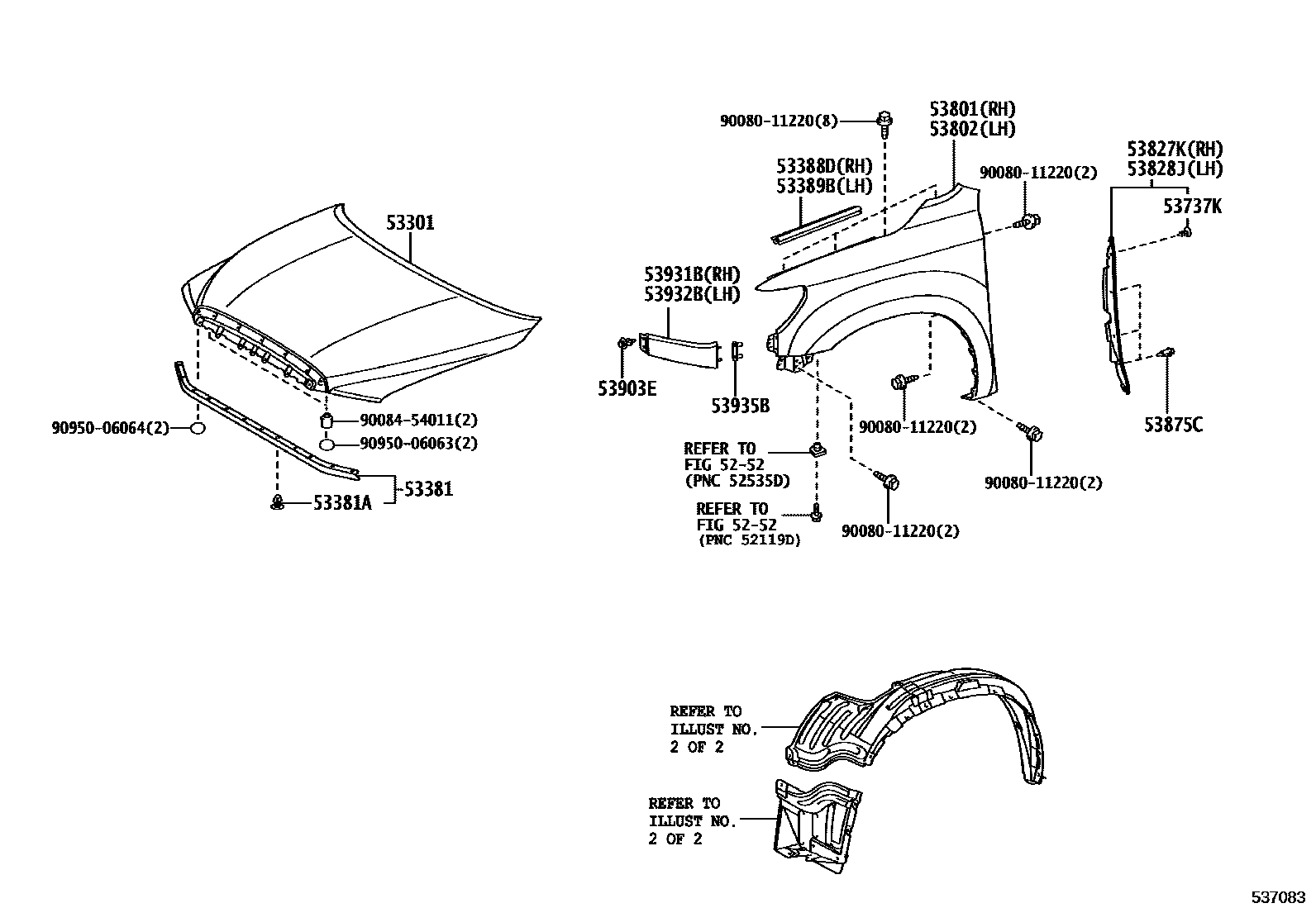

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

5252

53301HOOD SUB-ASSY

main53301-0C030iUSK6#201002-201609

main53301-0C040iUSK6#200811-201002

sub53301-0C030

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-0C020iUSK6#200811-201609

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iUSK6#200811-201609

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-0C020iUSK6#200811-201609

53389BSEAL, HOOD TO FRONT FENDER, LH

main53389-0C010iUSK6#200811-201609

53737KCLIP(FOR FRONT FENDER APRON SEAL)

main90467-08186-C0iUSK6#200811-201609

BLACK

sub90467-08186

53801FENDER SUB-ASSY, FRONT RH

main53801-0C230iUSK6#201002-201609

sub53801-0C240

main53801-0C240iUSK6#200811-201002

sub53801-0C230

53802FENDER SUB-ASSY, FRONT LH

main53802-0C170iUSK6#201002-201609

main53802-0C200iUSK6#200811-201002

sub53802-0C170

53827KPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-0C010iUSK6#200811-201609

53828JPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-0C010iUSK6#200811-201609

53875CCLIP, FRONT FENDER LINER

main90467-05138iUSK6#200811-201609

main90467-A0016-C0iUSK6#200811-201609

BLACK

53903ECLIP, FRONT END PANEL

main90467-07201iUSK6#200811-201609

53931BPANEL, FRONT END, RH

main53931-0C901iUSK6#..LIMD,SR5200811-201609

main53931-0C902iUSK6#..PLAT200811-201609

53932BPANEL, FRONT END, LH

main53932-0C901iUSK6#..LIMD,SR5200811-201609

main53932-0C902iUSK6#..PLAT200811-201609

53935BPROTECTOR, FRONT END PANEL

main53935-0C010iUSK6#200811-201609

9008011220

main90080-11220

9008454011

main90084-54011

9095006063

main90950-06063

9095006064

main90950-06064

20 parts on this diagram · 2 diagrams in section
