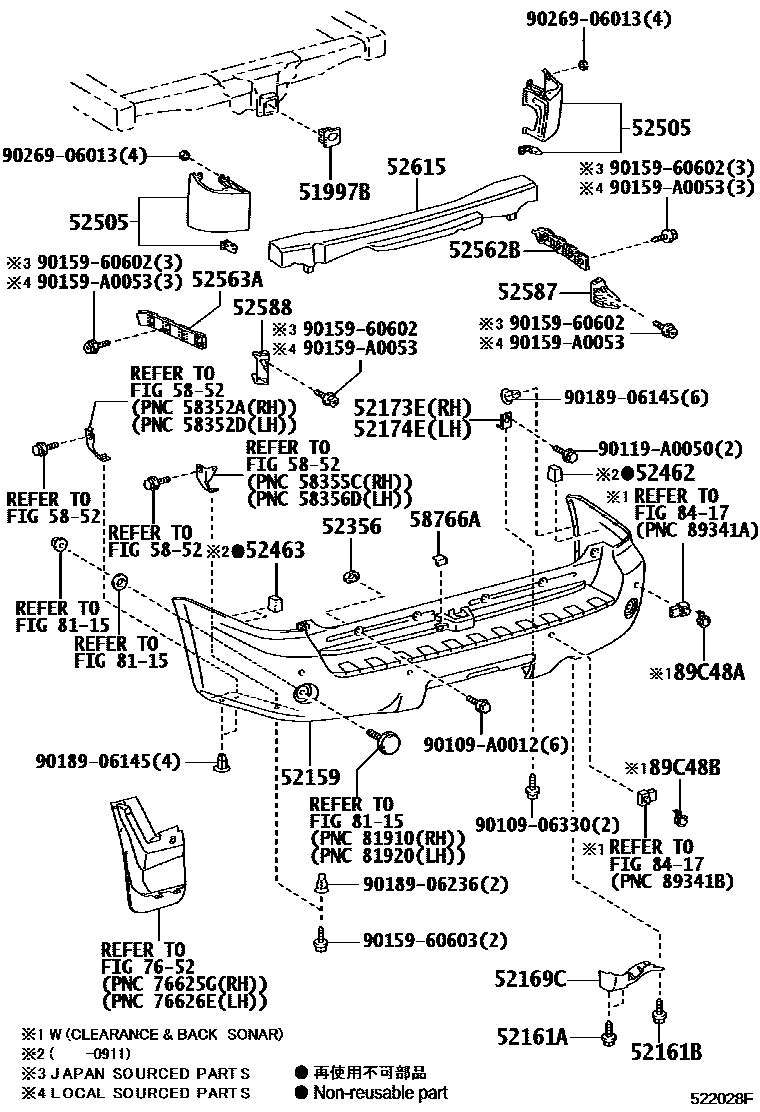

REAR BUMPER & BUMPER STAY

51997BCAP, RECEIVER HITCH

main51997-0C040iUSK6#200811-201609

52159COVER, REAR BUMPER

main52159-0C905iUSK6#..SR5200811-201002

PAINT REQ.

sub52159-0C909

main52159-0C905iUSK6#..LIMD,PLAT200811-201002

PAINT REQ.,CLEARANCE & BACK SONAR-WITH(FRONT & REAR)

sub52159-0C909

main52159-0C906iUSK6#..SR5200811-201002

PAINT REQ.

sub52159-0C910

main52159-0C909iUSK6#..LIMD,PLAT201002-201408

PAINT REQ.,CLEARANCE & BACK SONAR-WITH(FRONT & REAR)

main52159-0C909iUSK6#..LIMD,PLAT201002-201408

PAINT REQ.

main52159-0C910iUSK6#..SR5201002-201408

PAINT REQ.

main52159-0C911iUSK6#201408-201609

PAINT REQ.

52161APIECE, REAR BUMPER, RH

main52161-02020iUSK6#200811-201609

52161BPIECE, REAR BUMPER

main52161-02020iUSK6#200811-201609

52169CCOVER, REAR BUMPER, LOWER

main52169-0C020iUSK6#200811-201609

NO PAINT REQ.

52173EBRACKET, REAR BUMPER BAR, RH

main52173-0C080iUSK6#200811-201609

52174EBRACKET, REAR BUMPER BAR, LH

main52173-0C080iUSK6#200811-201609

52356CUSHION, REAR BUMPER STEP

main52356-0C020iUSK6#..SR5201301-201408

sub52356-60050

main52356-60050iUSK6#..SR5200811-201609

52462PAD, REAR BUMPER, RH

main52462-0C010iUSK60200811-200911

52463PAD, REAR BUMPER, LH

main52462-0C010iUSK60200811-200911

52505FILLER SUB-ASSY, REAR BUMPER

main52505-0C010iUSK6#200811-201609

RH

main52507-0C010iUSK6#200811-201609

LH

52562BRETAINER, REAR BUMPER, UPPER RH

main52562-0C010iUSK6#200811-201609

52563ARETAINER, REAR BUMPER, UPPER LH

main52563-0C010iUSK6#200811-201609

52587RETAINER, REAR BUMPER END, RH

main52587-0C010iUSK6#200811-201609

52588RETAINER, REAR BUMPER END, LH

main52588-0C010iUSK6#200811-201609

52615ABSORBER, REAR BUMPER ENERGY

main52615-0C010iUSK6#200811-201609

5852

58766ACOVER, JACK BOX HOLE

main58766-0C010iUSK6#200811-201609

7652

8115

8417

89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER

main89348-33060-A0iUSK6#..LIMD200811-201408

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),SUPER WHITE 2,040

sub89348-33060

main89348-33060-A0iUSK6#..LIMD200811-201408

SUPER WHITE 2,040

sub89348-33060

main89348-33060-A1iUSK60..LIMD,PLAT200811-200904

WHITE PEARL CS.,071

sub89348-33060

main89348-33060-A2iUSK6#..SR5200904-201408

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),WHITE PEARL CS.,070

sub89348-33060

main89348-33060-A2iUSK6#..SR5200904-201408

WHITE PEARL CS.,070

sub89348-33060

main89348-33060-B1iUSK6#..SR5200811-201408

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),SILVER ME.,1D6

sub89348-33060

main89348-33060-B1iUSK6#..LIMD,PLAT200811-201408

SILVER ME.,1D6

sub89348-33060

main89348-33060-B2iUSK6#..LIMD,PLAT200811-201008

GRAY ME.,1F9

sub89348-33060

main89348-33060-B2iUSK6#..LIMD,PLAT200811-201008

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),GRAY ME.,1F9

sub89348-33060

main89348-33060-B5iUSK6#..LIMD,PLAT201008-201408

GRAY ME.,1G3

sub89348-33060

main89348-33060-B5iUSK6#..SR5201008-201408

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),GRAY ME.,1G3

sub89348-33060

main89348-33060-C0iUSK6#..SR5200811-201408

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BLACK,202

sub89348-33060

main89348-33060-C0iUSK6#..LIMD,PLAT200811-201408

BLACK,202

sub89348-33060

main89348-33060-D1iUSK6#..SR5200811-201107

DK RED MC,3Q7

sub89348-33060

main89348-33060-D1iUSK6#..LIMD,PLAT200811-201107

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),DK RED MC,3Q7

sub89348-33060

main89348-33060-D7iUSK6#..SR5201107-201408

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BLACKISH RED MC.,3R0

sub89348-33060

main89348-33060-D7iUSK6#..SR5201107-201408

BLACKISH RED MC.,3R0

sub89348-33060

main89348-33060-E1iUSK60..SR5200811-200904

BEIGE M. M.,4Q2

sub89348-33060

main89348-33060-E1iUSK60..SR5200811-200904

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BEIGE M. M.,4Q2

sub89348-33060

main89348-33060-E2iUSK6#..LIMD,PLAT200811-201408

BRONZE M.M.,4T3

sub89348-33060

main89348-33060-E2iUSK6#..LIMD,PLAT200811-201408

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BRONZE M.M.,4T3

sub89348-33060

main89348-33060-E7iUSK6#..LIMD,PLAT200904-201408

BEIGE ME.,4T8

sub89348-33060

main89348-33060-E7iUSK6#..SR5200904-201408

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BEIGE ME.,4T8

sub89348-33060

main89348-33060-G1iUSK60..LIMD,PLAT200811-200904

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),DK.GREEN M.M.,6T8

sub89348-33060

main89348-33060-G1iUSK60..SR5200811-200904

DK.GREEN M.M.,6T8

sub89348-33060

main89348-33060-G5iUSK6#..SR5200904-201008

DK.GREEN MC.,6V4

sub89348-33060

main89348-33060-G5iUSK6#..LIMD,PLAT200904-201008

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),DK.GREEN MC.,6V4

sub89348-33060

main89348-33060-J2iUSK6#..SR5200811-201008

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),DK.BLUE MC.,8S6

sub89348-33060

main89348-33060-J2iUSK6#..LIMD,PLAT200811-201008

DK.BLUE MC.,8S6

sub89348-33060

89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER

main89348-33040-A0iUSK6#..LIMD200811-201408

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),SUPER WHITE 2,040

sub89348-33040

main89348-33040-A0iUSK6#..SR5200811-201408

SUPER WHITE 2,040

sub89348-33040

main89348-33040-A1iUSK60..LIMD,PLAT200811-200904

WHITE PEARL CS.,071

sub89348-33040

main89348-33040-A2iUSK6#..LIMD,PLAT200904-201408

WHITE PEARL CS.,070

sub89348-33040

main89348-33040-A2iUSK6#..SR5200904-201408

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),WHITE PEARL CS.,070

sub89348-33040

main89348-33040-B1iUSK6#..SR5200811-201408

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),SILVER ME.,1D6

sub89348-33040

main89348-33040-B1iUSK6#..LIMD,PLAT200811-201408

SILVER ME.,1D6

sub89348-33040

main89348-33040-B2iUSK6#..LIMD,PLAT200811-201008

GRAY ME.,1F9

sub89348-33040

main89348-33040-B2iUSK6#..LIMD,PLAT200811-201008

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),GRAY ME.,1F9

sub89348-33040

main89348-33040-B5iUSK6#..LIMD,PLAT201008-201408

GRAY ME.,1G3

sub89348-33040

main89348-33040-B5iUSK6#..LIMD,PLAT201008-201408

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),GRAY ME.,1G3

sub89348-33040

main89348-33040-C0iUSK6#..SR5200811-201408

BLACK,202

sub89348-33040

main89348-33040-C0iUSK6#..SR5200811-201408

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BLACK,202

sub89348-33040

main89348-33040-D1iUSK6#..LIMD,PLAT200811-201107

DK RED MC,3Q7

sub89348-33040

main89348-33040-D1iUSK6#..LIMD,PLAT200811-201107

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),DK RED MC,3Q7

sub89348-33040

main89348-33040-D6iUSK6#..SR5201107-201408

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BLACKISH RED MC.,3R0

sub89348-33040

main89348-33040-D6iUSK6#..LIMD,PLAT201107-201408

BLACKISH RED MC.,3R0

sub89348-33040

main89348-33040-E1iUSK60..SR5200811-200904

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BEIGE M. M.,4Q2

sub89348-33040

main89348-33040-E1iUSK60..LIMD,PLAT200811-200904

BEIGE M. M.,4Q2

sub89348-33040

main89348-33040-E2iUSK6#..LIMD,PLAT200811-201408

BRONZE M.M.,4T3

sub89348-33040

main89348-33040-E2iUSK6#..LIMD,PLAT200811-201408

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BRONZE M.M.,4T3

sub89348-33040

main89348-33040-E8iUSK6#..SR5200904-201408

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BEIGE ME.,4T8

sub89348-33040

main89348-33040-E8iUSK6#..LIMD,PLAT200904-201408

BEIGE ME.,4T8

sub89348-33040

main89348-33040-G1iUSK60..LIMD,PLAT200811-200904

DK.GREEN M.M.,6T8

sub89348-33040

main89348-33040-G1iUSK60..SR5200811-200904

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),DK.GREEN M.M.,6T8

sub89348-33040

main89348-33040-G6iUSK6#..LIMD,PLAT200904-201008

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),DK.GREEN MC.,6V4

sub89348-33040

main89348-33040-G6iUSK6#..SR5200904-201008

DK.GREEN MC.,6V4

sub89348-33040

main89348-33040-J2iUSK6#..SR5200811-201008

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),DK.BLUE MC.,8S6

sub89348-33040

main89348-33040-J2iUSK6#..LIMD,PLAT200811-201008

DK.BLUE MC.,8S6

sub89348-33040

9010906330

main90109-06330

90109A0012

main90109-A0012

90119A0050

main90119-A0050

9015960602

main90159-60602

9015960603

main90159-60603

90159A0053

main90159-A0053

9018906145

main90189-06145

9018906236

main90189-06236

9026906013

main90269-06013

32 parts on this diagram · 1 diagram in section
