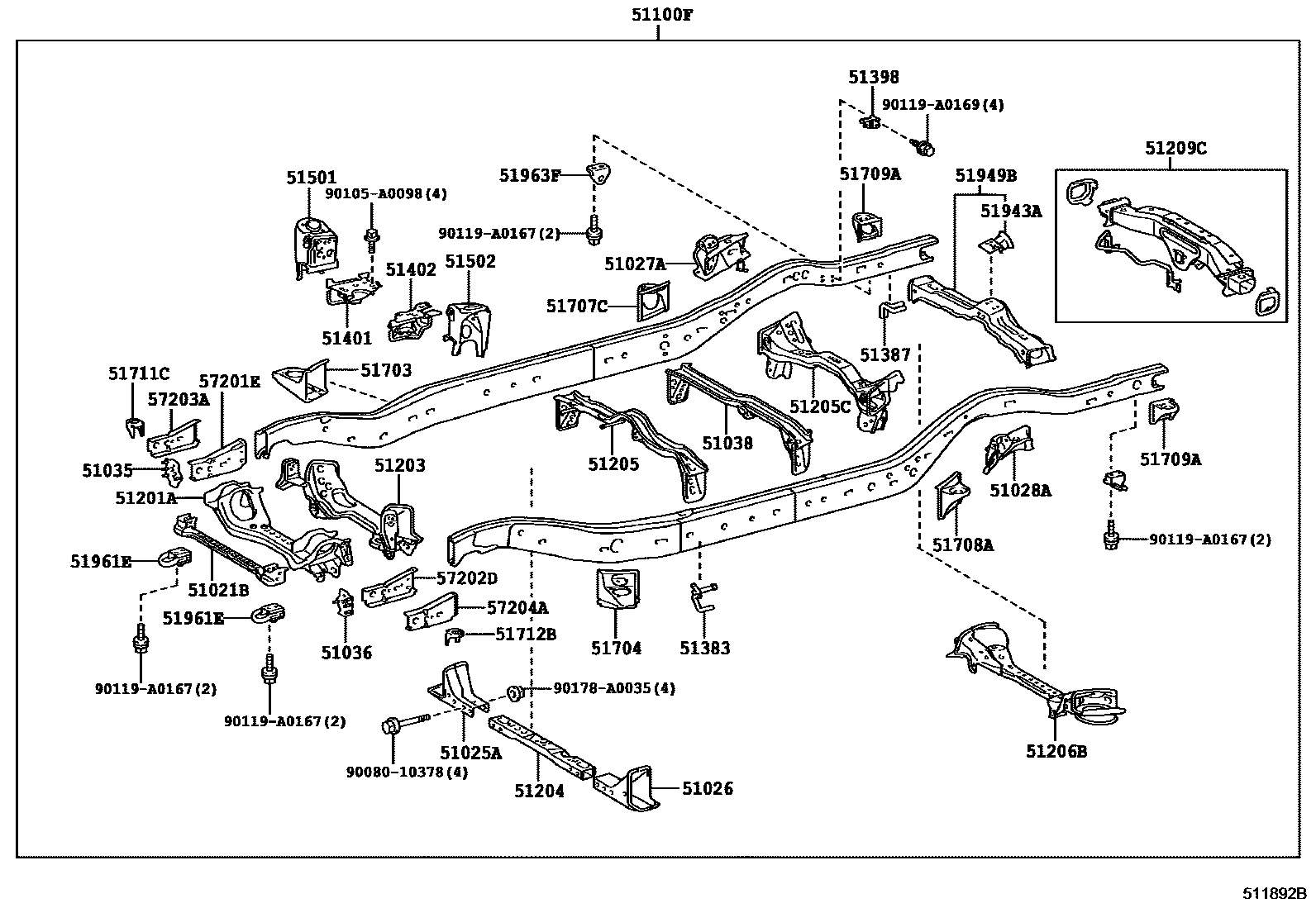

FRAME
51021BCROSSMEMBER SUB-ASSY, FRAME AUXILIARY
51025ABRACKET SUB-ASSY, FRAME NO.3 CROSSMEMBER, RH
51026BRACKET SUB-ASSY, FRAME NO.3 CROSSMEMBER, LH
51027ABRACKET SUB-ASSY, FRAME NO.4 CROSSMEMBER, RH
51028ABRACKET SUB-ASSY, FRAME NO.4 CROSSMEMBER, LH
51035PLATE SUB-ASSY, FRAME SIDE RAIL, RH
51036PLATE SUB-ASSY, FRAME SIDE RAIL, LH
51038MEMBER SUB-ASSY, FUEL TANK SUPPORT
51201ACROSSMEMBER SUB-ASSY, FRAME, FRONT
51204CROSSMEMBER SUB-ASSY, FRAME, NO.3
51205CROSSMEMBER SUB-ASSY, FRAME, NO.4
51383ROD, NO.3 CROSSMEMBER EXHAUST PIPE HANGER
51387ROD, NO.7 CROSSMEMBER EXHAUST PIPE HANGER
51398BRACKET, EXHAUST PIPE SUPPORT
51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51501SUPPORT SUB-ASSY, SUSPENSION ARM, RH
51502SUPPORT SUB-ASSY, SUSPENSION ARM, LH
51703BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH
51704BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH
51707CBRACKET SUB-ASSY, CAB MOUNTING, NO.4 RH
51708ABRACKET SUB-ASSY, CAB MOUNTING, NO.4 LH
51709ABRACKET SUB-ASSY, BODY REAR END MOUNTING
51711CBRACKET, CAB MOUNTING, NO.1 RH
51712BBRACKET, CAB MOUNTING, NO.1 LH
51943ABRACKET, SPARE WHEEL CARRIER
51949BCROSSMEMBER, SPARE WHEEL CARRIER
51963FHOOK, TRANSPORT
57201EEXTENSION SUB-ASSY, FRONT SIDE MEMBER, RH
57202DEXTENSION SUB-ASSY, FRONT SIDE MEMBER, LH
57203AEXTENSION SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH
57204AEXTENSION SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH
9008010378
main90080-10378
90105A0098
main90105-A0098
90119A0167
main90119-A0167
90119A0169
main90119-A0169
90178A0035
main90178-A0035
43 parts on this diagram · 1 diagram in section
