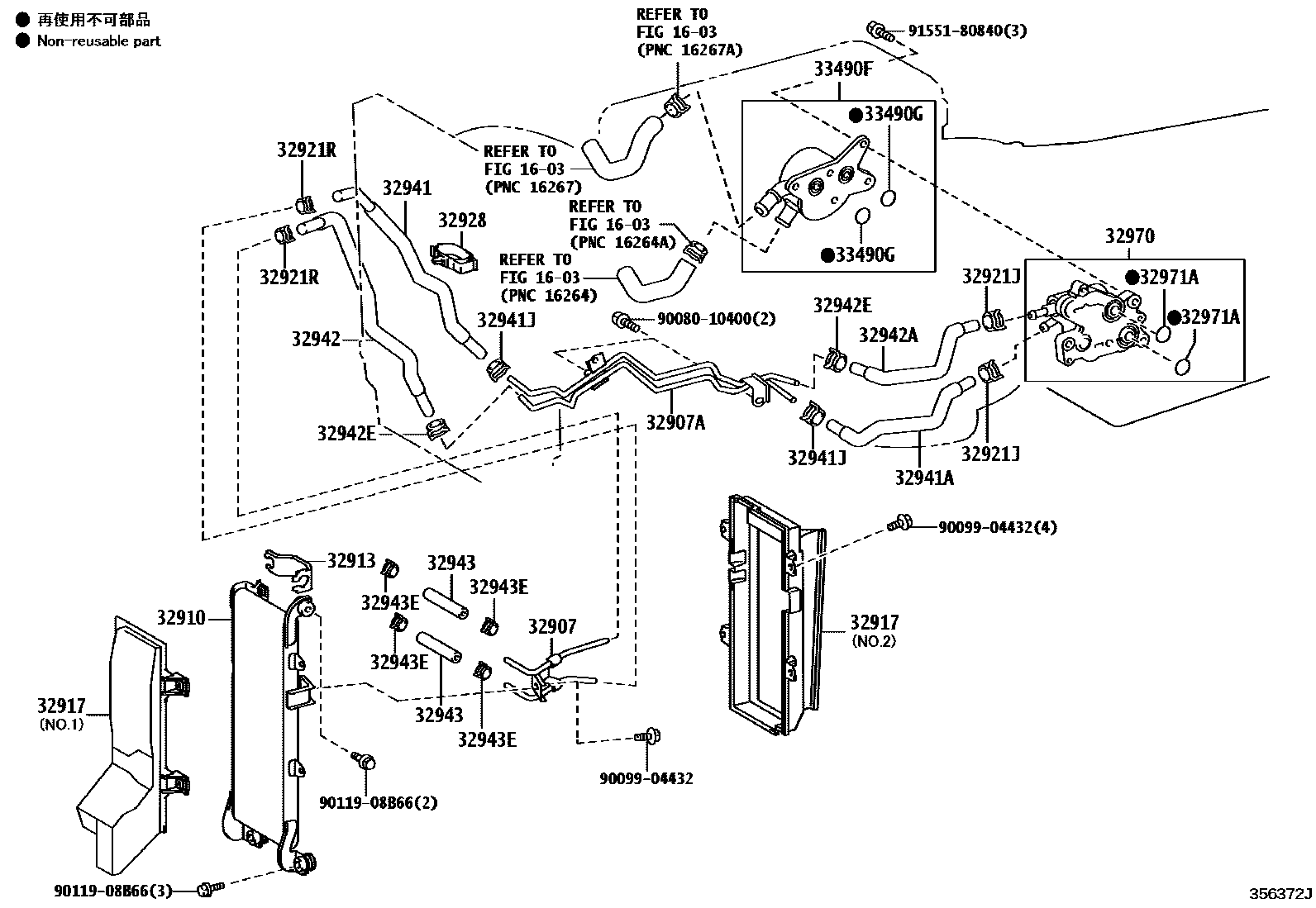

OIL COOLER & TUBE (ATM)

1603

32907TUBE SUB-ASSY, OIL COOLER OUTLET, NO.2

main32907-0C030iUSK6#200811-201609

32907ATUBE, OIL COOLER

main32907-0C020iUSK6#200811-201609

32910COOLER ASSY, OIL

main32910-0C010iUSK6#200811-201609

32913BRACKET, OIL COOLER

main32913-0C010iUSK6#200811-201609

32917DUCT, TRANSMISSION OIL COOLER AIR

main32917-0C020iUSK6#200811-201609

NO.2

main32917-0C030iUSK6#200811-201609

NO.1

32921JCLIP(FOR OIL COOLER HOSE)

main90466-A0014×2iUSK6#201004-201609

main90467-A0012×2iUSK6#200811-201004

32921RCLIP, NO.2(FOR OIL COOLER HOSE)

main90466-16005×2iUSK6#201206-201609

sub90466-16004

main90467-16022×2iUSK6#200811-201205

32928CLAMP, FLEXIBLE HOSE, NO.1

main32928-04040iUSK6#201602-201609

main32928-34030iUSK6#200811-201601

32941HOSE, OIL COOLER INLET, NO.1

main32941-0C020iUSK6#200811-201308

main32941-0C080iUSK6#201308-201609

32941AHOSE, OIL COOLER INLET, NO.2

main32941-0C030iUSK6#200811-201609

32941JCLIP, NO.1(FOR OIL COOLER HOSE)

main90467-A0012×2iUSK6#200811-201609

32942HOSE, OIL COOLER OUTLET, NO.1

main32942-0C030iUSK6#200811-201308

main32942-0C090iUSK6#201308-201609

32942AHOSE, OIL COOLER OUTLET, NO.2

main32942-0C040iUSK6#200811-201609

32942ECLIP, NO.2(FOR OIL COOLER HOSE)

main90467-A0012×2iUSK6#200811-201609

32943HOSE, TRANSMISSION OIL COOLER, NO.1

main32943-34020×2iUSK6#200811-201609

32943ECLIP, NO.3(FOR OIL COOLER HOSE)

main90467-A0012×4iUSK6#200811-201609

32970COOLER ASSY, TRANSMISSION OIL W/THERMOSTAT

main32970-34030iUSK6#200811-201609

32971ARING, O(FOR TRANSMISSION OIL THERMOSTAT)

main35147-34010×2iUSK6#200811-201609

33490FCOOLER ASSY, TRANSMISSION OIL

main33490-34010iUSK6#200811-201609

33490GRING, O (FOR TRANSMISSION OIL COOLER)

main90301-19020×2iUSK6#200811-201609

9008010400

main90080-10400

9009904432

main90099-04432

9011908B66

main90119-08B66

9155180840

main91551-80840

25 parts on this diagram · 1 diagram in section
