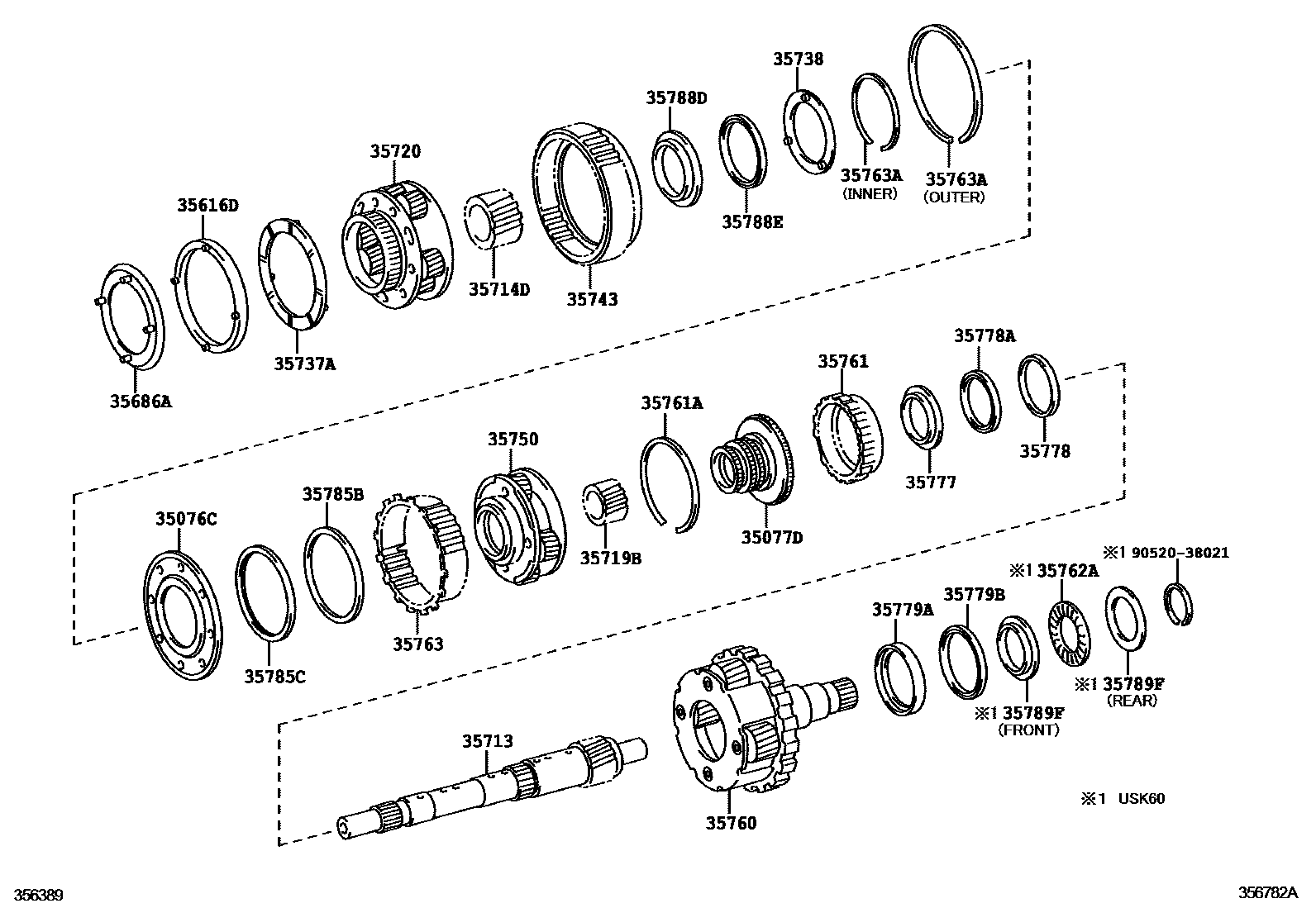

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)
35077DFLANGE SUB-ASSY, RR PLANETARY RING GEAR
35616DWASHER, CLUTCH DRUM THRUST
35686AWASHER, CLUTCH DRUM THRUST, NO.2
35713SHAFT, INTERMEDIATE
35714DGEAR, FR PLANETARY SUN
35719BGEAR, PLANETARY SUN
35720GEAR ASSY, FRONT PLANETARY
35737AWASHER, PLANETARY CARRIER THRUST, NO.1
35738WASHER, PLANETARY CARRIER THRUST, NO.2
35743GEAR, FRONT PLANETARY RING
35750GEAR ASSY, CENTER PLANETARY
35761GEAR, REAR PLANETARY RING
35761ARING, HOLE SNAP (FOR REAR PLANETARY RING GEAR)
35762ABEARING, THRUST NEEDLE ROLLER (FOR REAR PLANETARY FLANGE)
35763ARING, SNAP(FOR CENTER PLANETARY RING GEAR)
INNER
OUTER
35777RACE, THRUST BEARING, NO.7
35778RACE, THRUST BEARING, NO.8
35778ABEARING, THRUST NEEDLE ROLLER
35779ARACE, THRUST BEARING, NO.9
35779BBEARING, THRUST NEEDLE ROLLER
35785BRACE, THRUST BEARING, NO.4
35785CBEARING, THRUST NEEDLE ROLLER
35788DRACE, THRUST BEARING, NO.3
35788EBEARING, THRUST NEEDLE ROLLER
35789FRACE, THRUST BEARING (FOR REAR PLANETARY FLANGE)
FRONT
REAR,T=3.85
REAR,T=3.95
REAR,T=4.05
REAR,T=4.15
REAR,T=4.25
REAR,T=3.9
REAR,T=4.0
REAR,T=4.1
REAR,T=4.2
REAR,T=4.30
REAR,T=4.35
REAR,T=4.40
9052038021
main90520-38021
29 parts on this diagram · 1 diagram in section
