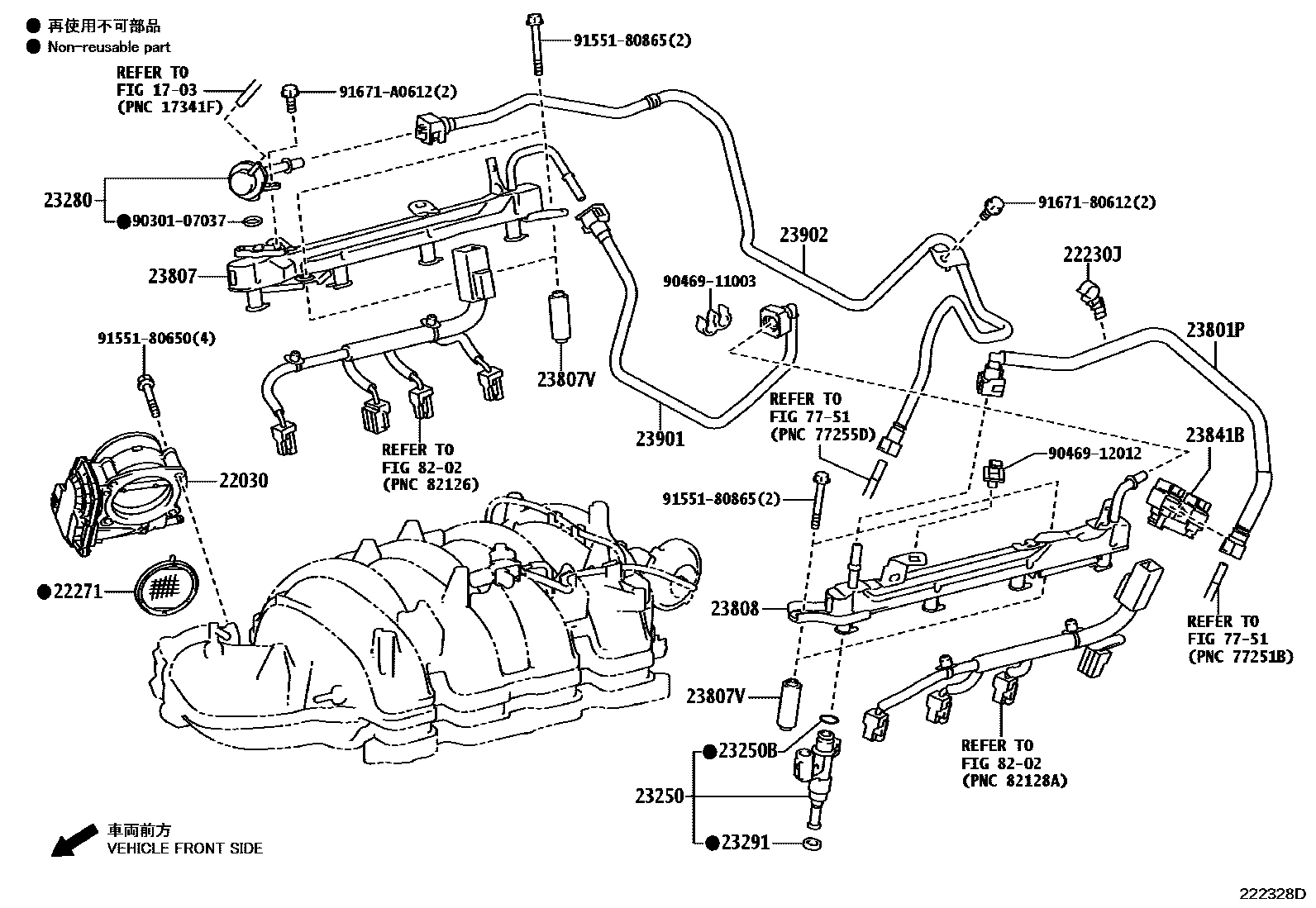

FUEL INJECTION SYSTEM
1703
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22230JCLAMP
PNC 23841B=TYPE A
PNC 23841B=TYPE B
22271GASKET, THROTTLE BODY
23250INJECTOR ASSY, FUEL
(L)
(J)
23250BRING, O(FOR FUEL INJECTOR)
(J)
(L)
23291INSULATOR, INJECTOR VIBRATION
23801PPIPE SUB-ASSY, FUEL, NO.1
PNC 23841B=TYPE A
PNC 23841B=TYPE B
23807VSPACER, NO.1(FOR DELIVERY PIPE)
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
23901TUBE SUB-ASSY, FUEL
23902TUBE SUB-ASSY, FUEL
(L)
(J)
7751
8202
9030107037
main90301-07037
9046911003
main90469-11003
9046912012
main90469-12012
9155180650
main91551-80650
9155180865
main91551-80865
9167180612
main91671-80612
91671A0612
main91671-A0612
