ALTERNATOR

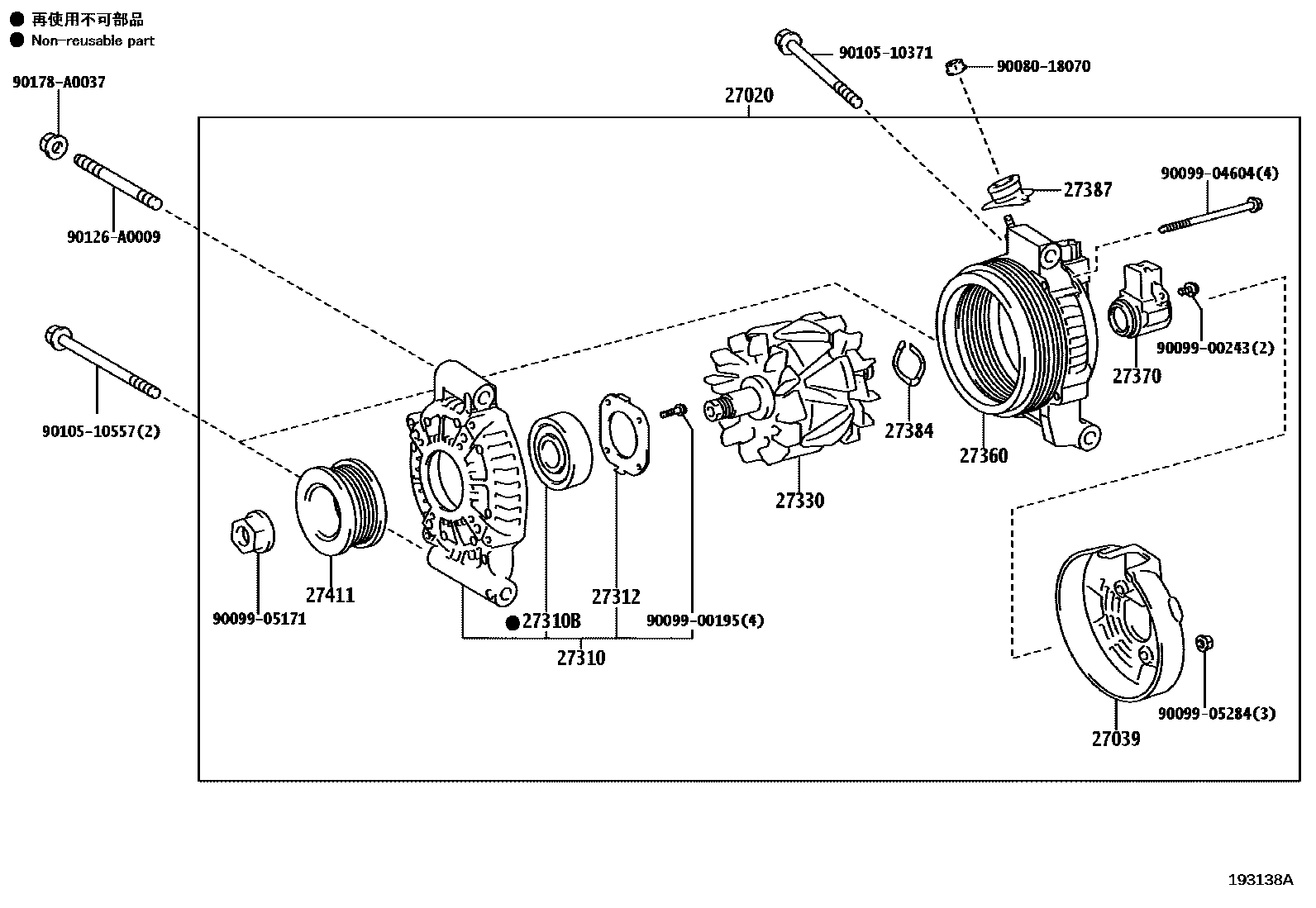

Parts diagram

27020ALTERNATOR ASSY

main27060-0S020i200811-201609

12V 150A

main27060-38050i200811-201609

12V 180A

27039COVER, ALTERNATOR REAR END

main27039-0A110i200811-200906

main27039-0T040i200906-201308

main27039-31390i201308-201609

main27039-38140i200811-201609

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-0S010i200811-201308

main27310-38140i200811-201609

main27310-38170i201308-201609

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90068-10033i200811-201308

main90099-10223i201308-201609

main90099-10226i200811-201609

27312PLATE, RETAINER

main27312-42010i200811-201609

main27312-72100i200811-201609

27330ROTOR ASSY, ALTERNATOR

main27330-0A110i200811-201308

main27330-38140i200811-201609

main27330-58460i201308-201609

27360COIL ASSY, ALTERNATOR

main27360-0S020i200811-201308

main27360-38140i200811-201609

main27360-38180i201308-201609

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-0S010i200811-201308

main27370-27060i200811-201609

27384WASHER

main27384-0A020i200811-201308

main27384-38130i200811-201609

main27384-50030i201308-201609

27387INSULATOR, TERMINAL

main27387-0V060i201010-201308

main27387-20130i201308-201609

main27387-38130i200811-201609

27411PULLEY, ALTERNATOR

main27411-0S010i200811-201404

main27411-38090i201404-201609

main27411-38140i200811-201609

9008018070

main90080-18070

9009900195

main90099-00195

9009900243

main90099-00243

9009904604

main90099-04604

9009905171

main90099-05171

9009905284

main90099-05284

9010510371

main90105-10371

9010510557

main90105-10557

90126A0009

main90126-A0009

90178A0037

main90178-A0037

21 parts on this diagram · 2 diagrams in section
