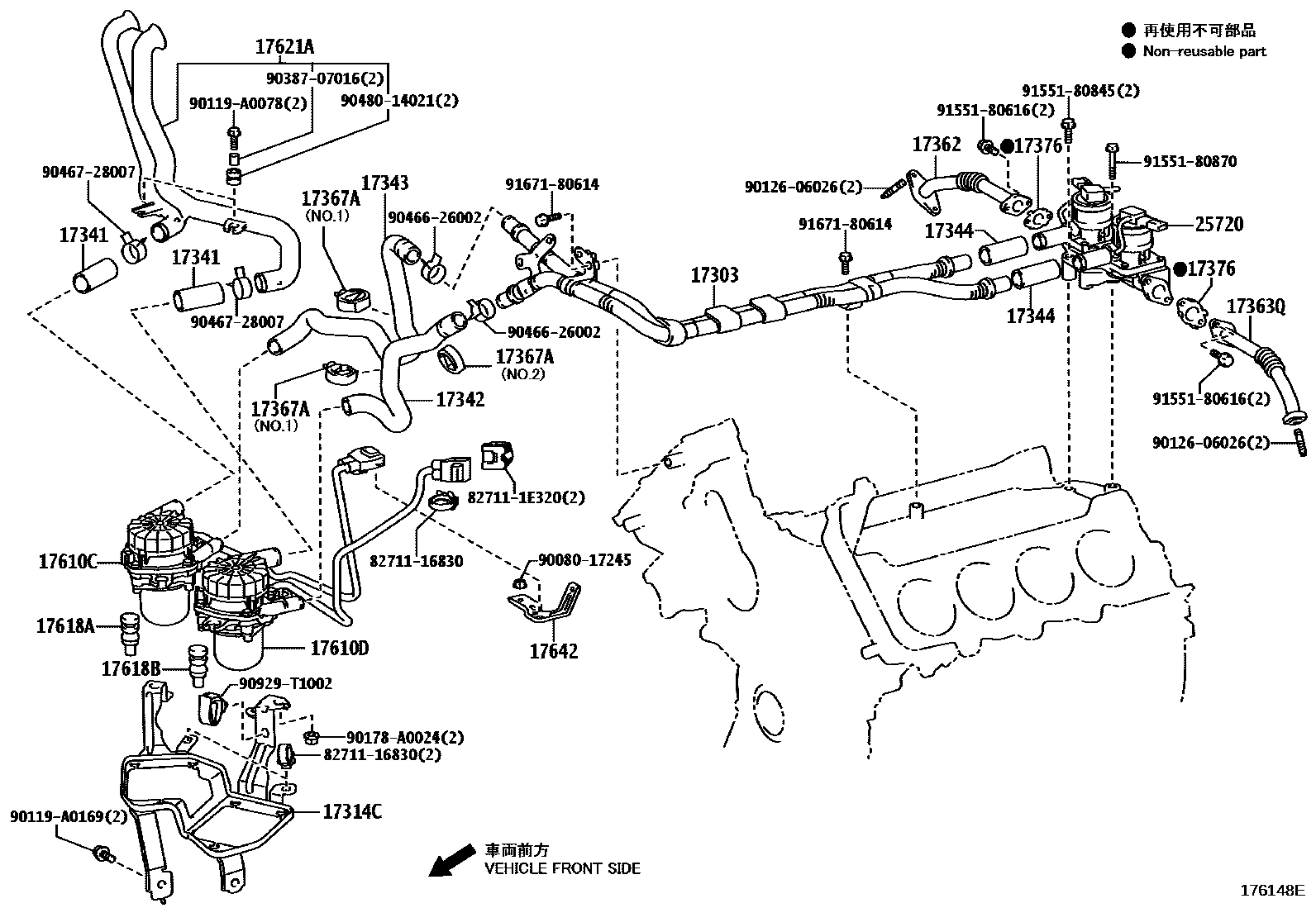

MANIFOLD AIR INJECTION SYSTEM
17303PIPE SUB-ASSY, AIR
17314CBRACKET, AIR PUMP
17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)
17342HOSE, NO.2(FOR AIR INJECTION SYSTEM)
17343HOSE, NO.3(FOR AIR INJECTION SYSTEM)
17344HOSE, NO.4(FOR AIR INJECTION SYSTEM)
17362TUBE, AIR, NO.2
17363QTUBE, AIR, NO.3
17367ACLAMP, AIR INJECTION HOSE, NO.2
NO.2
17376GASKET, AIR TUBE, NO.1
17610CPUMP ASSY, AIR
17610DPUMP ASSY, AIR, NO.1
17618AINSULATOR, AIR PUMP
17618BINSULATOR, AIR PUMP, NO.1
17621AINLET, AIR PUMP
sub17621-0S012
17642BRACKET, AIR PUMP WIRE
25720VALVE ASSY, ELECTRIC AIR CONTROL
sub25701-38061
8271116830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16830
827111E320WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E320
9008017245
main90080-17245
90119A0078
main90119-A0078
90119A0169
main90119-A0169
9012606026
main90126-06026
90178A0024
main90178-A0024
9038707016
main90387-07016
9046626002
main90466-26002
9046728007
main90467-28007
9048014021
main90480-14021
90929T1002
main90929-T1002
9155180616
main91551-80616
9155180845
main91551-80845
9155180870
main91551-80870
9167180614
main91671-80614
33 parts on this diagram · 1 diagram in section
