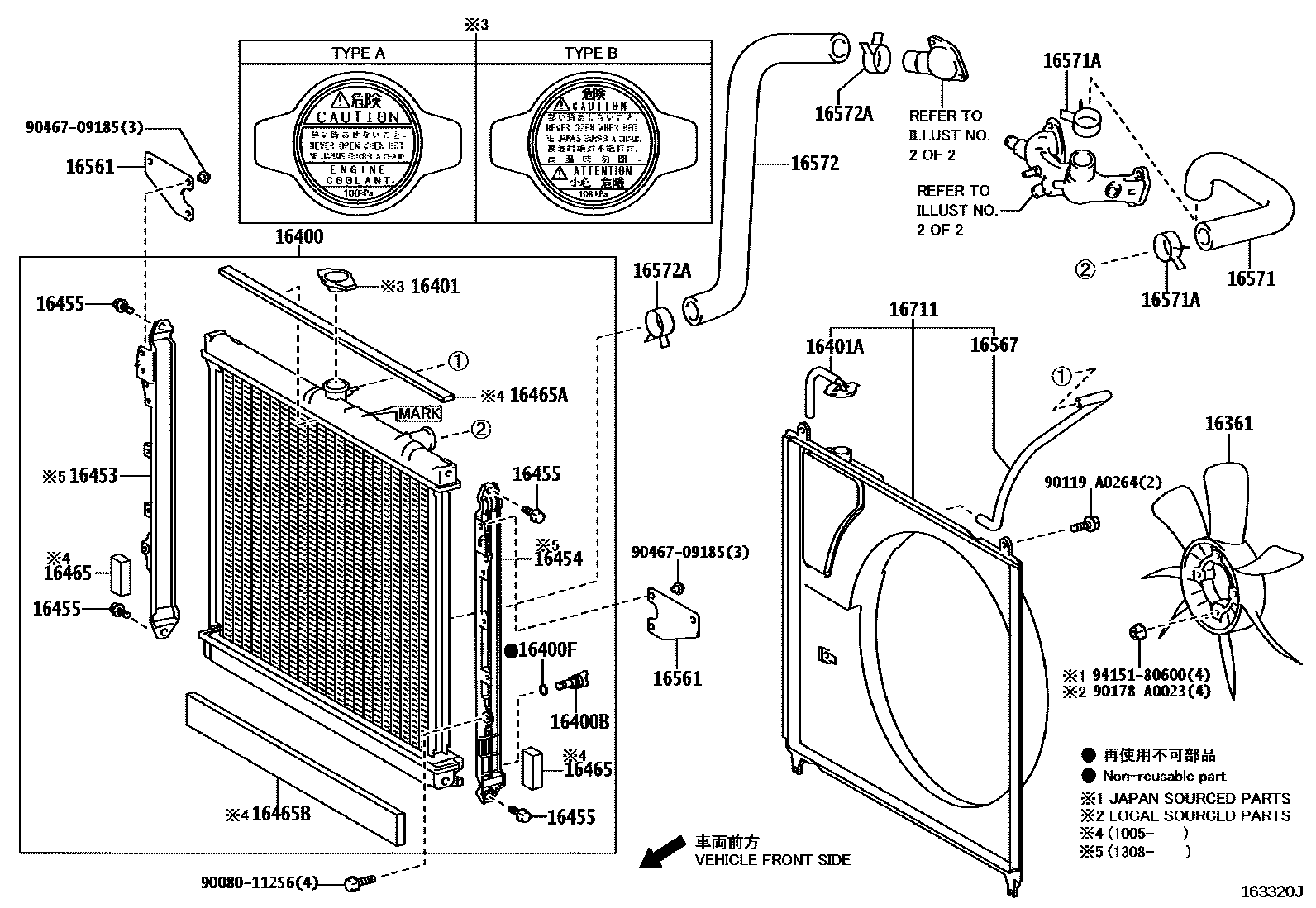

RADIATOR & WATER OUTLET
16361FAN
16400RADIATOR ASSY
MARK=0S01
MARK=0S02
MARK=0S04
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16401CAP SUB-ASSY, RADIATOR
TYPE B:REFER ILLUST.
16401ACAP SUB-ASSY, RADIATOR RESERVE TANK
16453PLATE, RADIATOR SIDE
16454PLATE, RADIATOR SIDE
16455BOLT, RADIATOR SIDE SUPPORT PLATE
16465PACKING, RADIATOR
16465APACKING, RADIATOR, NO.1
16465BPACKING, RADIATOR, NO.2
PNC 16400=MARK 0S02
PNC 16400=MARK 0S04
16561SEAL, RADIATOR TO SUPPORT, NO.1
16567HOSE(FOR RADIATOR RESERVE TANK)
16571HOSE, RADIATOR, INLET
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16572HOSE, RADIATOR, OUTLET
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
9008011256
main90080-11256
90119A0264
main90119-A0264
90178A0023
main90178-A0023
9046709185
main90467-09185
9415180600
main94151-80600
24 parts on this diagram · 3 diagrams in section
