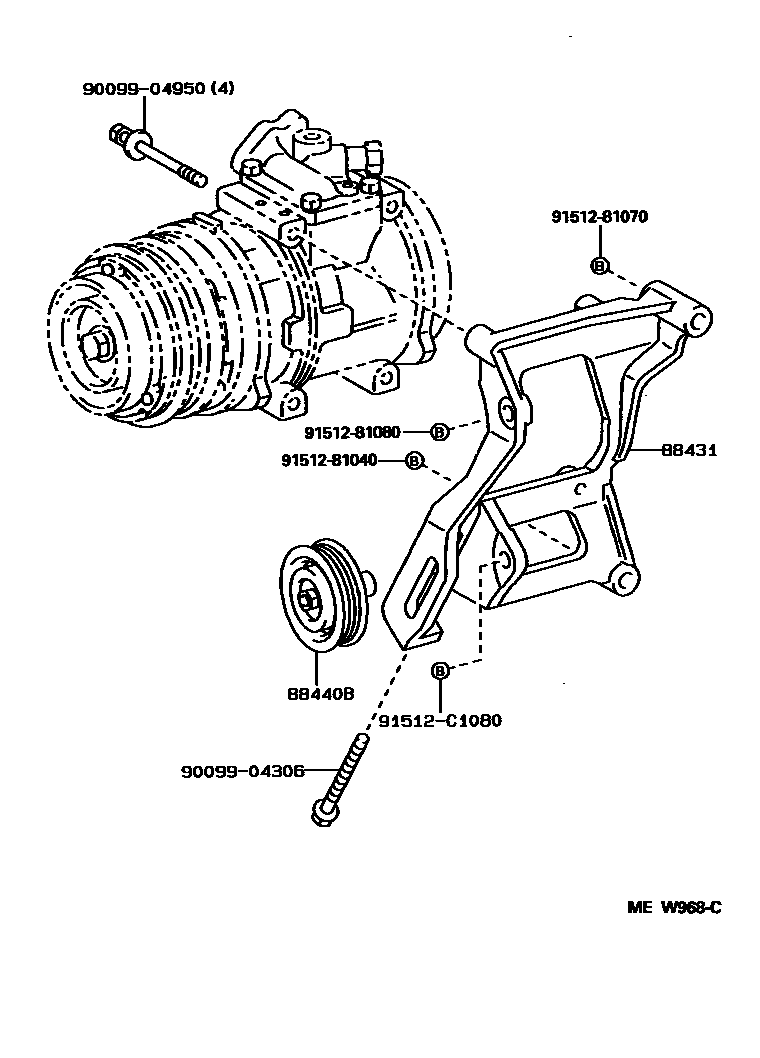

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-34020iRCK10199309-199608

88440BPULLEY ASSY, IDLE

main88440-20160iRCK10199309-199608

9009904306

main90099-04306

9009904950

main90099-04950

9151281040

main91512-81040

9151281070

main91512-81070

9151281080

main91512-81080

91512C1080

main91512-C1080

8 parts on this diagram · 3 diagrams in section
