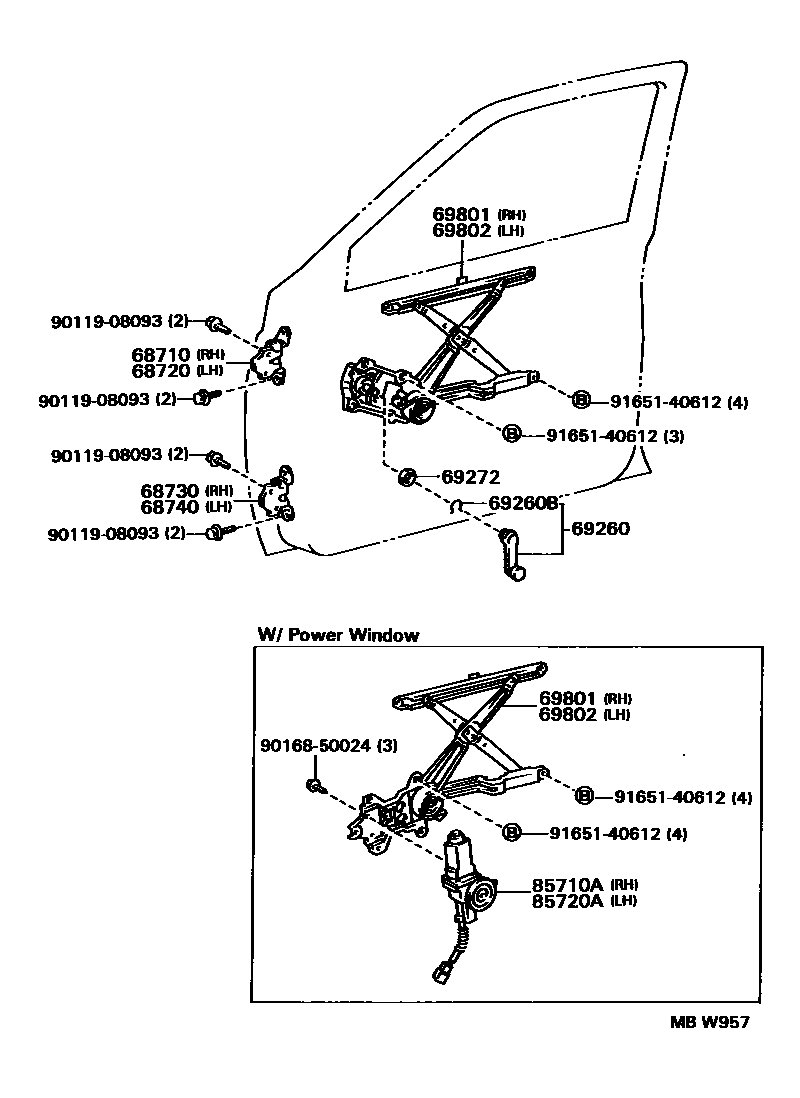

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-34010iRCK10199309-199608

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-34010iRCK10199309-199608

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-34010iRCK10199309-199608

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-34010iRCK10199309-199608

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-89104-B0iRCK10..STD199309-199608

MEDIUM GRAY,TRIM1#

sub69260-89104

main69260-89104-E2iRCK10..STD199408-199608

OAK,TRIM4#

sub69260-89104

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002iRCK10..STD199309-199608

sub90520-01274

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69268-20020iRCK10..STD199309-199608

sub69285-22010

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-34010iRCK10..SR5199309-199608

main69810-0W010iRCK10..STD199309-199608

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-34010iRCK10..SR5199309-199608

main69820-0W010iRCK10..STD199309-199608

85710AMOTOR ASSY, POWER WINDOW REGULATOR, FRONT RH

main85710-34010iRCK10..SR5199309-199608

sub85710-34020

85720AMOTOR ASSY, POWER WINDOW REGULATOR, FRONT LH

main85720-34010iRCK10..SR5199309-199608

sub85720-34020

9011908093

main90119-08093

9016850024

main90168-50024

9165140612

main91651-40612

14 parts on this diagram · 1 diagram in section
