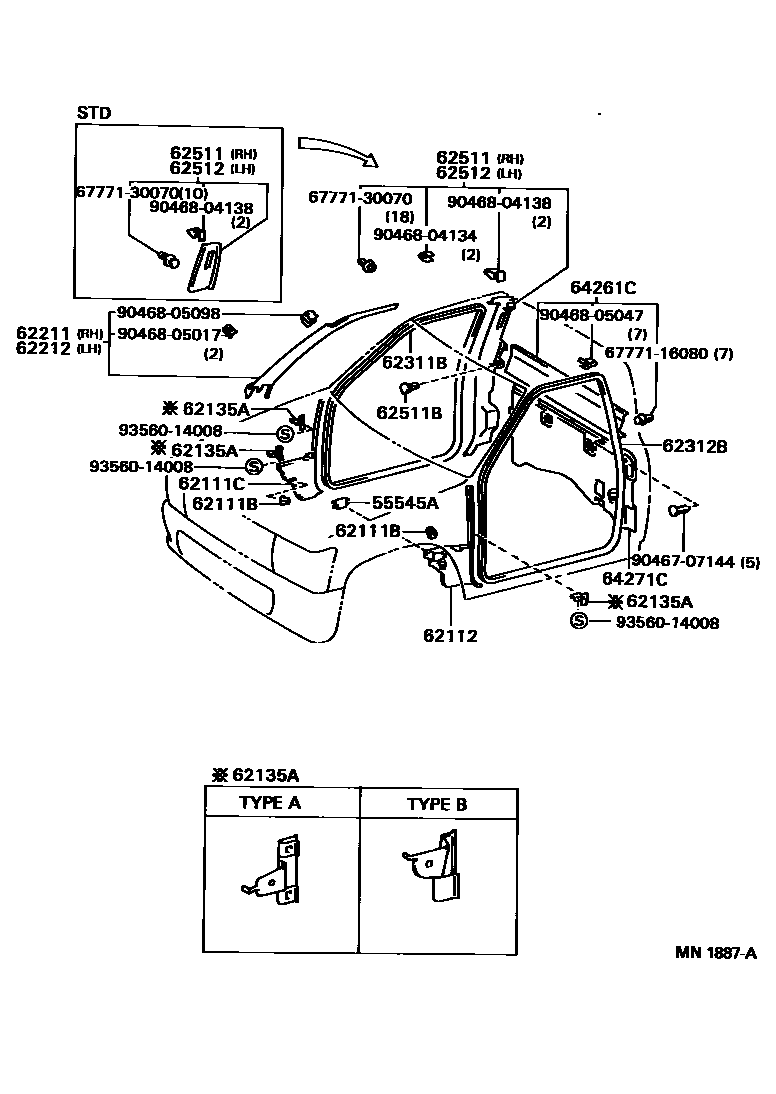

INSIDE TRIM BOARD
55545ACOVER, FUSE BOX OPENING
62111BCLIP(FOR COWL SIDE TRIM)
62111CBOARD, COWL SIDE TRIM, RH
62112BOARD, COWL SIDE TRIM, LH
62135ARETAINER, COWL SIDE COVER
TYPE B,RH
TYPE B,LH
62211GARNISH, FRONT PILLAR, RH
62212GARNISH, FRONT PILLAR, LH
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62511BOARD, QUARTER INSIDE TRIM, RH
62511BCLIP (FOR QUARTER INSIDE TRIM BOARD)
62512BOARD, QUARTER INSIDE TRIM, LH
64261CGARNISH, BACK PANEL, UPPER
GRAY,TRIM1#
OAK,TRIM4#
64271CTRIM, BACK PANEL
GRAY,TRIM1#
OAK,TRIM4#
6777116080WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-16080
6777130070WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-30070
9046707144
main90467-07144
9046804134
main90468-04134
9046804138
main90468-04138
9046805017
main90468-05017
9046805047
main90468-05047
9046805098
main90468-05098
9356014008
main93560-14008
23 parts on this diagram · 1 diagram in section
