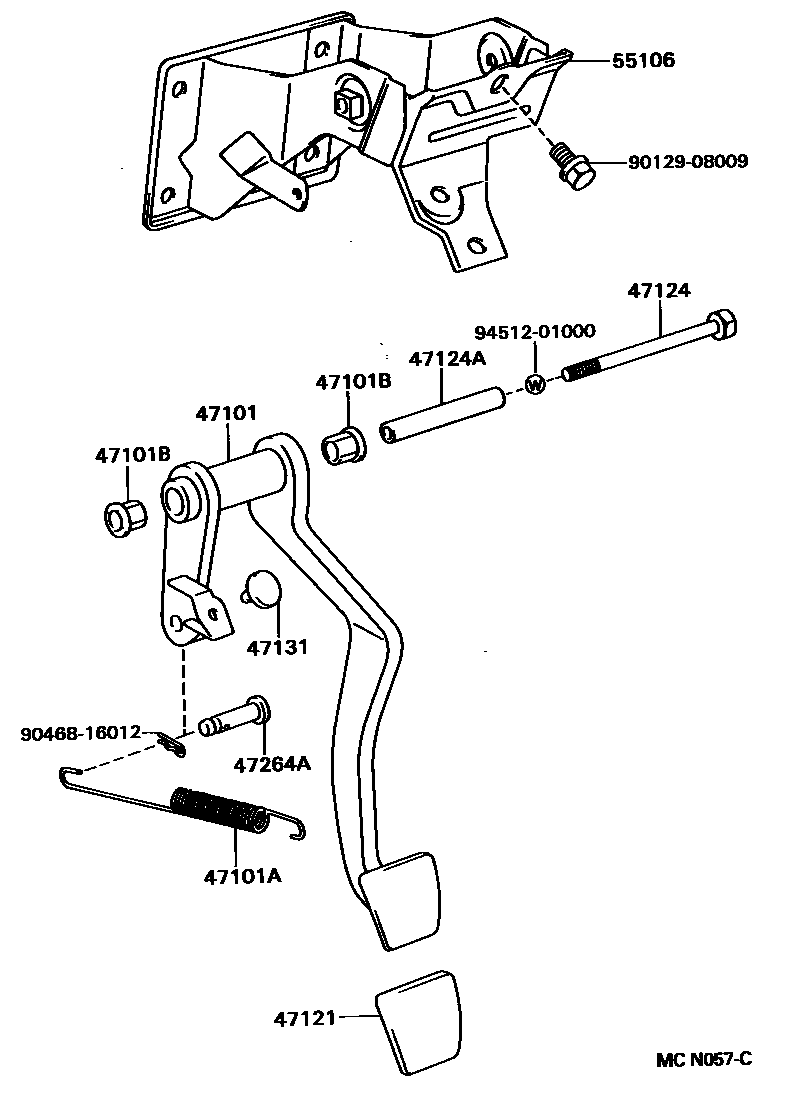

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-34010iRCK10199309-199608

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-14020iRCK10199309-199608

47101BBUSH(FOR BRAKE PEDAL)

main90386-13020×2iRCK10199309-199608

47121PAD, BRAKE PEDAL

main31321-14020iRCK10199309-199608

47124SHAFT, BRAKE PEDAL

main90101-10480iRCK10199309-199608

sub91552-81090

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main47144-35030iRCK10199309-199608

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iRCK10199309-199608

47264APIN(FOR PUSH ROD)

main47148-35010iRCK10199309-199608

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-34010iRCK10199309-199608

9012908009

main90129-08009

9046816012

main90468-16012

9451201000

main94512-01000

12 parts on this diagram · 1 diagram in section
