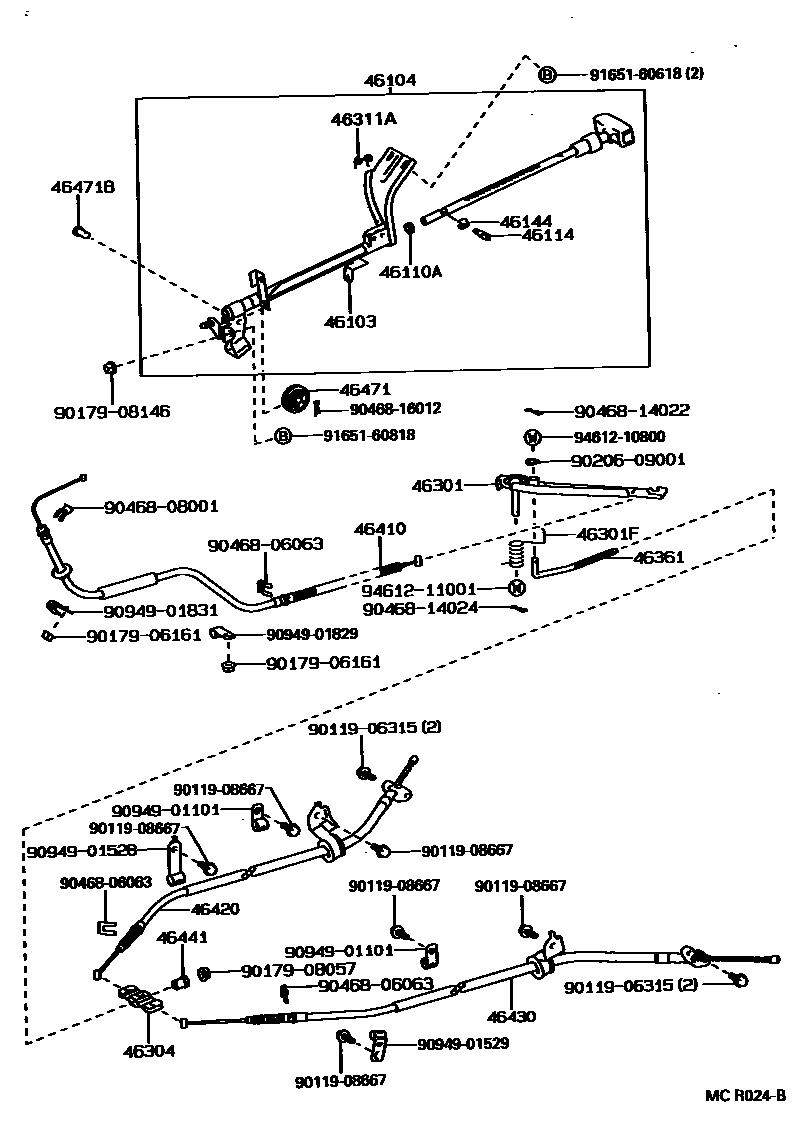

PARKING BRAKE & CABLE

46103GUIDE SUB-ASSY, PARKING BRAKE PLUNGER

main46103-34010iRCK10199309-199608

46104HANDLE SUB-ASSY, PARKING BRAKE CONTROL

main46104-34010iRCK10199309-199608

46110ABUSH OR RING, O (FOR PARKING BRAKE PLUNGER)

main90386-11195iRCK10199309-199608

46114PIN, PARKING BRAKE PLUNGER

main46114-20010iRCK10199309-199608

46144ANTI-RATTLE, PARKING BRAKE PLUNGER

main46144-30020iRCK10199309-199608

46301LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

main46301-34010iRCK10199309-199608

46301FSPRING, TORSION(FOR PARKING BRAKE INTERMEDIATE LEVER)

main90508-32018iRCK10199309-199608

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46304-22020iRCK10199309-199608

46311ASPRING(FOR PARKING BRAKE PAWL)

main90508-08106iRCK10199309-199608

46361ROD, PARKING BRAKE PULL

main46361-35070iRCK10199309-199608

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-34030iRCK10199309-199408

main46410-34040iRCK10199408-199608

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-34040iRCK10199309-199608

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-34030iRCK10199309-199608

46441NUT, WIRE ADJUSTING, NO.1

main46441-35010iRCK10199309-199608

46471PULLEY, WIRE

main46471-20010iRCK10199309-199608

46471BPIN, W/HOLE(FOR WIRE PULLEY SET)

main90240-08017iRCK10199309-199608

9011906315

main90119-06315

9011908667

main90119-08667

9017906161

main90179-06161

9017908057

main90179-08057

9017908146

main90179-08146

9020609001

main90206-09001

9046806063

main90468-06063

9046808001

main90468-08001

9046814022

main90468-14022

9046814024

main90468-14024

9046816012

main90468-16012

9094901101

main90949-01101

9094901528

main90949-01528

9094901529

main90949-01529

9094901829

main90949-01829

9094901831

main90949-01831

9165160618

main91651-60618

9165160818

main91651-60818

9461210800

main94612-10800

9461211001

main94612-11001

36 parts on this diagram · 1 diagram in section
