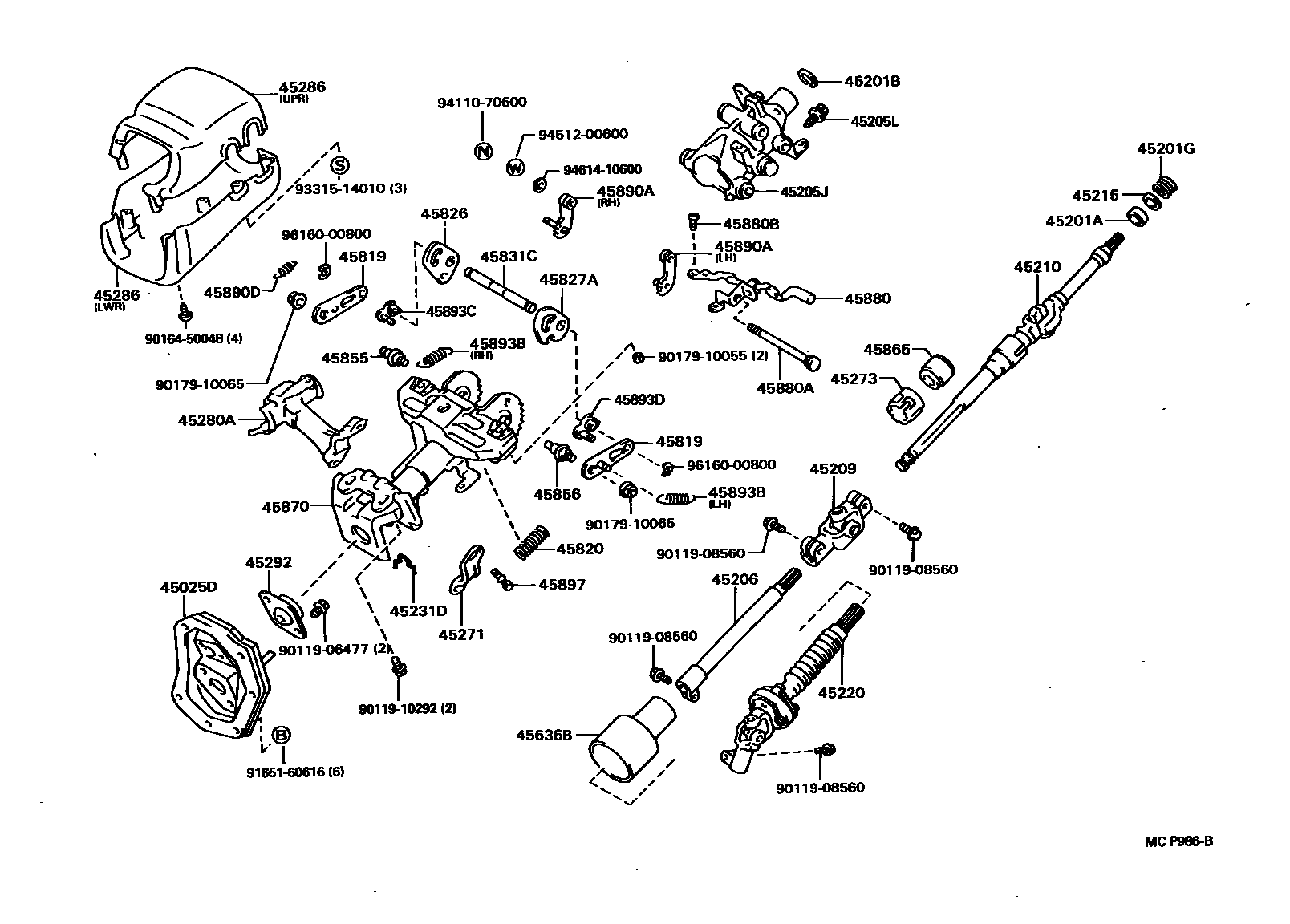

STEERING COLUMN & SHAFT
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45201ABEARING(FOR STEERING MAIN SHAFT)
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
T=1.20,LWR
T=1.20,W(COLLAPSIBLE TILT STEERING)
T=1.20
T=1.20,UPR
45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)
45205JTUBE SUB-ASSY, STEERING COLUMN, UPPER
45205LSCREW(FOR STEERING COLUMN TUBE)
45206YOKE SUB-ASSY, STEERING SLIDING W/SHAFT
45209YOKE SUB-ASSY, STEERING SLIDING
45210SHAFT ASSY, STEERING MAIN
W(TILT STEERING)
45215COLLAR, MAIN SHAFT BEARING THRUST
45231DRING, HOLE SNAP(FOR STEERING MAIN SHAFT)
45271CLAMP, STEERING COLUMN, UPPER
W(TILT STEERING)
45273BUSH, STEERING MAIN SHAFT
45280ABRACKET ASSY, STEERING COLUMN, UPPER
W(TILT STEERING)
45286COVER, STEERING COLUMN
45292SEAL, MAIN SHAFT LOWER DUST
45636BPROTECTOR, INTERMEDIATE LINK JOINT
45819RETAINER, TILT LEVER
45820SPRING ASSY, TILT STEERING SUPPORT
45826LEVER, STEERING TILT
45827ALEVER, STEERING TILT SUB
45831CSHAFT, TILT LEVER LOCK
45855BOLT, TILT STEERING, NO.1
OD=9.989-9.998
45856BOLT, TILT STEERING, NO.2
OD=9.989-9.998
45865COLLAR, STEERING MAIN SHAFT
45870TUBE ASSY, STEERING COLUMN
W(TILT STEERING)
45880LEVER ASSY, STEERING TILT
45880ABOLT(FOR STEERING TILT LEVER)
45880BSCREW(FOR STEERING TILT LEVER)
45890APAWL ASSY, TILT STEERING
LH
RH
45890DSPRING, TENSION(FOR TILT STEERING PAWL ASSY)
45893BSPRING, TENSION(FOR TILT STEERING PAWL STOPPER)
LH
RH
45893CSTOPPER, STEERING PAWL, RH
MARK 1
MARK 2
MARK 3
MARK 4
MARK 5
MARK 1
MARK 2
MARK 3
MARK 4
MARK 5
MARK 6
MARK 7
45893DSTOPPER, STEERING PAWL, LH
MARK A
MARK B
MARK C
MARK D
MARK E
MARK F
MARK G
MARK A
MARK B
MARK C
MARK D
MARK E
45897BOLT, STEERING LOCK SET
9011906477
main90119-06477
9011908560
main90119-08560
9011910292
main90119-10292
9016450048
main90164-50048
9017910055
main90179-10055
9017910065
main90179-10065
9165160616
main91651-60616
9331514010
main93315-14010
9411070600
main94110-70600
9451200600
main94512-00600
9461410600
main94614-10600
9616000800
main96160-00800
48 parts on this diagram · 2 diagrams in section
