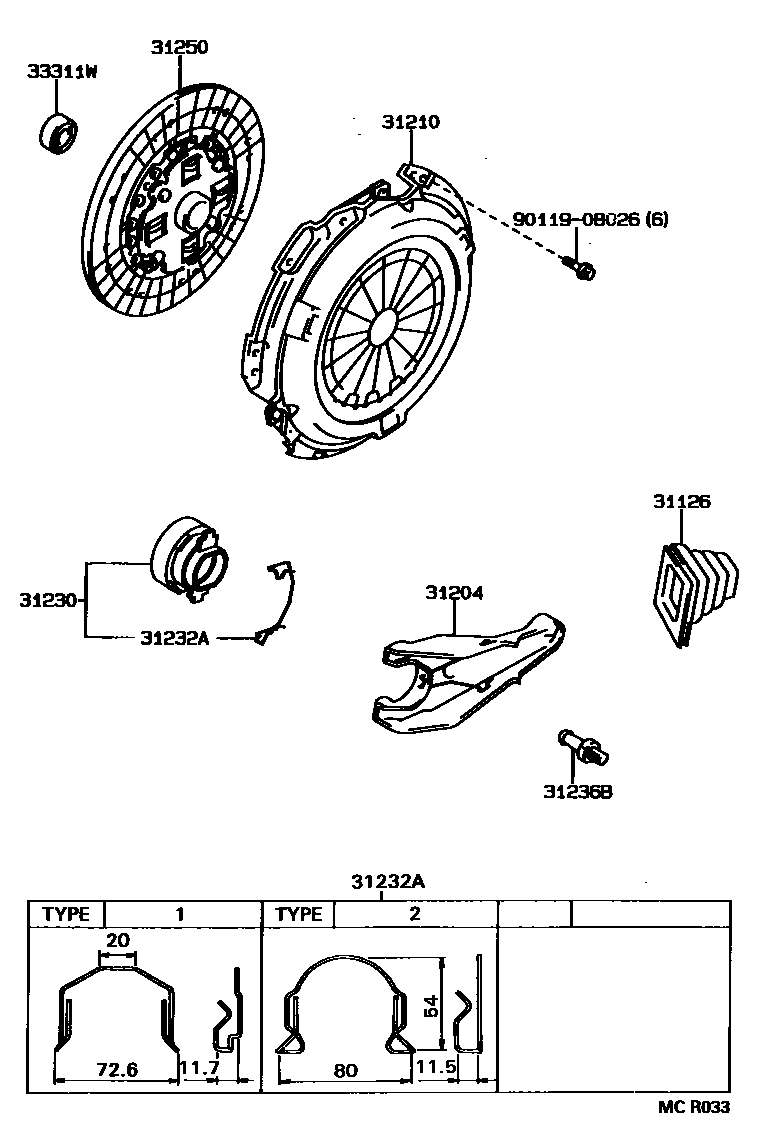

CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-26020iRCK10199309-199608

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-20071iRCK10199309-199608

31210COVER ASSY, CLUTCH

main31210-35200iRCK10199309-199608

sub31210-26170

31230BEARING ASSY, CLUTCH RELEASE

main31230-35090iRCK10199309-199608

sub31230-35091

31232ACLIP, RELEASE BEARING HUB

main31232-35020iRCK10199309-199608

main31232-35040iRCK10199309-199608

31236BSUPPORT, RELEASE FORK

main31236-30060iRCK10199309-199608

31250DISC ASSY, CLUTCH

main31250-34010iRCK10199309-199608

sub31250-35400

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iRCK10199309-199608

sub90363-12024

9011908026

main90119-08026

9 parts on this diagram · 1 diagram in section
