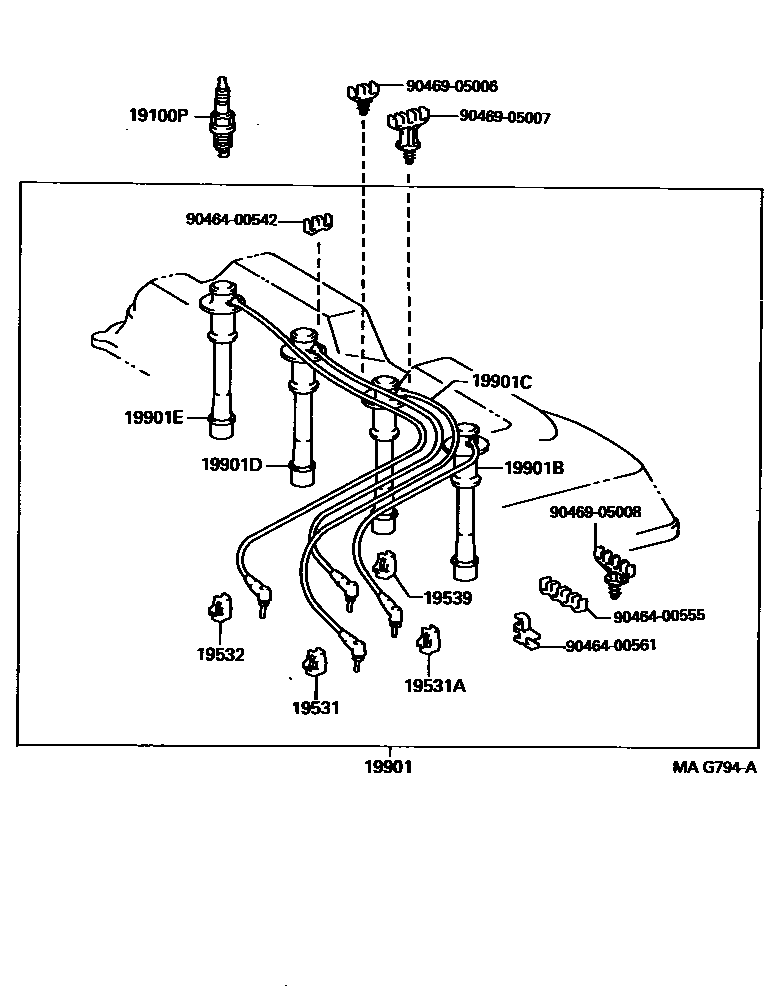

IGNITION COIL & SPARK PLUG / GLOW PLUG

19100PPLUG, SPARK

main90919-01176×4i3RZF..RCK10199309-199608

K16R-U

19531HOLDER, RESISTIVE CORD, NO.1

main19539-62010i3RZF..RCK10199309-199608

19531AHOLDER, RESISTIVE CODE, NO.3

main19539-62020i3RZF..RCK10199309-199608

19532HOLDER, RESISTIVE CODE, NO.2

main19532-46010i3RZF..RCK10199309-199608

19539HOLDER, RESISTIVE CODE, NO.4

main19539-74020i3RZF..RCK10199309-199608

19901CORD SET, COIL & SPARK, W/RESISTIVE

main19037-75020i3RZF..RCK10199309-199608

sub19037-75021

19901BCORD, SPARK PLUG RESISTIVE, NO.1

main90919-15388i3RZF..RCK10199309-199608

sub90919-15526

19901CCORD, SPARK PLUG RESISTIVE, NO.2

main90919-15389i3RZF..RCK10199309-199608

sub90919-15527

19901DCORD, SPARK PLUG RESISTIVE, NO.3

main90919-15390i3RZF..RCK10199309-199608

sub90919-15528

19901ECORD, SPARK PLUG RESISTIVE, NO.4

main90919-15391i3RZF..RCK10199309-199608

sub90919-15529

9046400542

main90464-00542

9046400555

main90464-00555

9046400561

main90464-00561

9046905006

main90469-05006

9046905007

main90469-05007

9046905008

main90469-05008

16 parts on this diagram · 1 diagram in section
