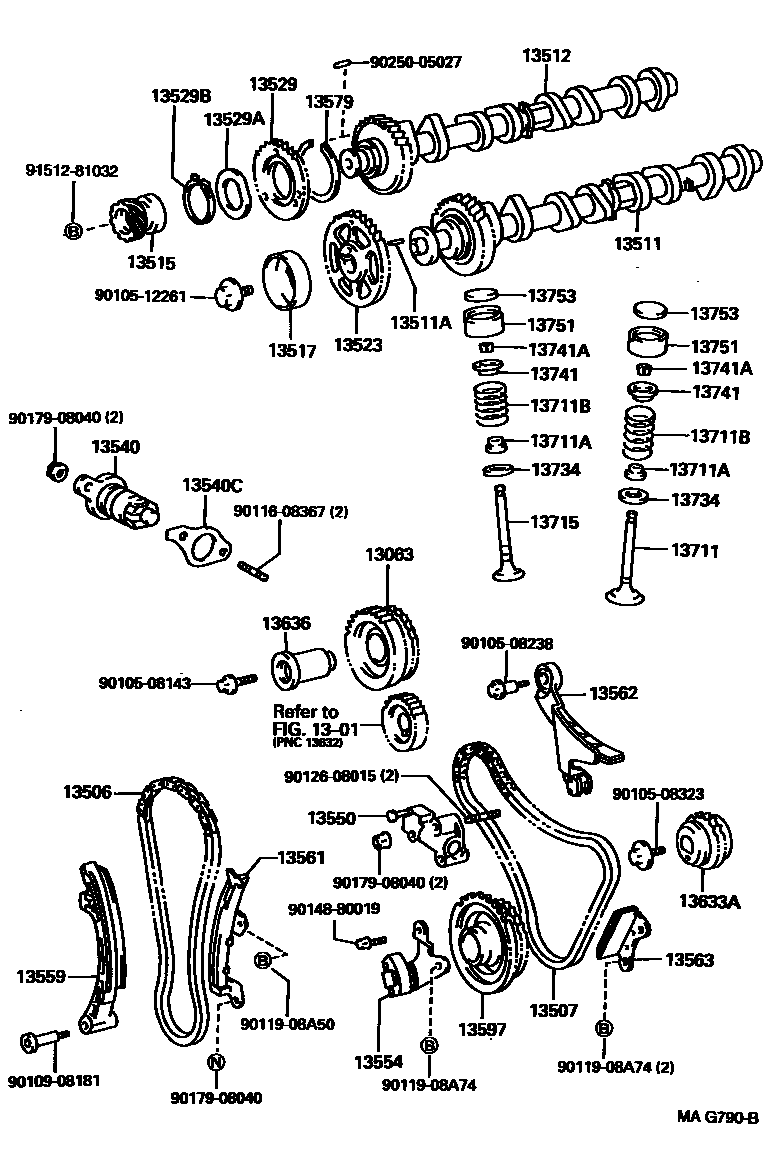

CAMSHAFT & VALVE
1301
13063GEAR SUB-ASSY, BALANCESHAFT DRIVE
sub13063-75011
13506CHAIN SUB-ASSY
13507CHAIN SUB-ASSY, NO.2
TSUBAKIMOTO
DAIDOH
13511CAMSHAFT
sub13501-75903
13511APIN, STRAIGHT(FOR CAMSHAFT KNOCK)
L=11,OD=6
13512CAMSHAFT, NO.2
13515GEAR, DISTRIBUTOR DRIVE
13517CAM, FUEL PUMP DRIVE
13523GEAR OR SPROCKET, CAMSHAFT TIMING
13529GEAR, CAMSHAFT SUB
13529AWASHER, WAVE(FOR CAMSHAFT SUB GEAR)
13529BRING, SHAFT SNAP(FOR CAMSHAFT SUB GEAR)
13540TENSIONER ASSY, CHAIN, NO.1
13540CGASKET(FOR CHAIN TENSIONER)
13550TENSIONER ASSY, CHAIN, NO.2
13554DAMPER, CHAIN VIBRATION, NO.4
13559SLIPPER, CHAIN TENSIONER
13561DAMPER, CHAIN VIBRATION, NO.1
13562DAMPER, CHAIN VIBRATION, NO.2
13563DAMPER, CHAIN VIBRATION, NO.3
13579WASHER, CAMSHAFT TIMING GEAR BOLT
13597SPROCKET, CRANKSHAFT TIMING, NO.2
13633AGEAR, BALANCESHAFT DRIVEN, NO.2
13636SHAFT, BALANCESHAFT DRIVE GEAR
13711VALVE, INTAKE
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
INTAKE SIDE
EXHAUST SIDE
13711BSPRING, COMPRESSION(FOR INNER)
sub90501-31017
13715VALVE, EXHAUST
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13751LIFTER, VALVE
13753SHIM, VALVE ADJUSTING
T=2.50
T=2.55
T=2.60
T=2.65
T=2.70
T=2.75
T=2.80
T=2.85
T=2.90
T=2.95
T=3.00
T=3.05
T=3.10
T=3.15
T=3.20
T=3.25
T=3.30
9010508143
main90105-08143
9010508238
main90105-08238
9010508323
main90105-08323
9010512261
main90105-12261
9010908181
main90109-08181
9011608367
main90116-08367
9011908A50
main90119-08A50
9011908A74
main90119-08A74
9012608015
main90126-08015
9014880019
main90148-80019
9017908040
main90179-08040
9025005027
main90250-05027
9151281032
main91512-81032
47 parts on this diagram · 1 diagram in section
