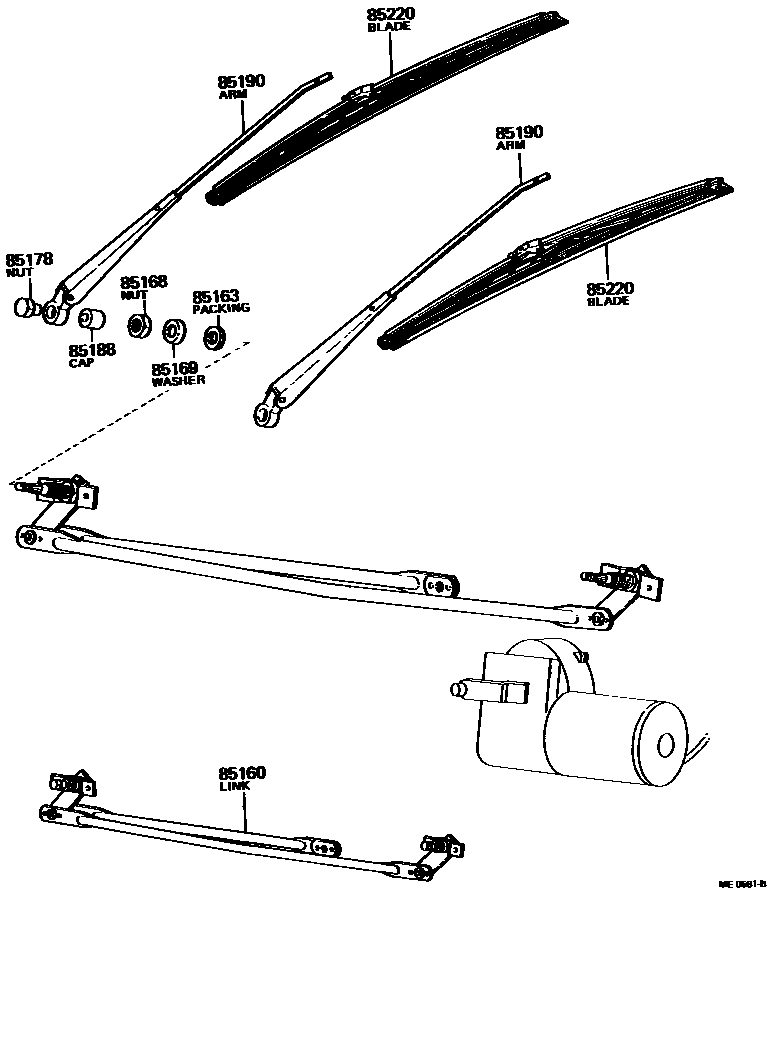

WINDSHIELD WIPER

0001 1 0002 1 0003 1 0004 1 0005 1

85160LINK ASSY, WINDSHIELD WIPER

main85160-56010iDB10#,FB100196903-197403

main85160-95200iDA11#,FA100,11#,FC100196903-198002

main85160-95211iDA11#,FA100,115198002-198006

sub85102-95210

sub85101-95210

85163PACKING, WINDSHIELD WIPER PIVOT

main85185-25040iDA11#,FA100,11#,FC100196903-198002

main85185-56010iDB10#,FB100196903-197403

main85185-95A00iDA11#,FA100,115198002-200112

85168NUT, WINDSHIELD WIPER LINK PIVOT

main85168-55010iDA11#,FA100,11#,FC100196903-197511

main85168-56010iDB10#,FB100196903-197403

main90170-12001iDA11#,FA100,115197511-198002

sub85168-55010

main90170-14004iDA11#,FA100,115198002-200112

85169WASHER, WINDSHIELD WIPER LINK PIVOT, NO.1

main85167-56010iDB10#,FB100196903-197403

main85169-55010iDA11#,FA100,11#,FC100196903-197511

sub90209-12002

main85169-95A00iDA11#,FA100,115198002-200112

main90209-12002iDA11#,FA100,115197511-198002

85178NUT (FOR FRONT WIPER ARM SETTING)

main85182-60040iDA11#,FA100,11#,FC100196903-198002

main90099-05129iDA11#,FA100,115198002-200112

85188CAP, WINDSHIELD WIPER PIVOT, NO.1

main85135-55010iDA11#,FA100,11#,FC100196903-198002

main85135-56010iDB10#,FB100196903-197403

main85135-95A00iDA11#,FA100,115198002-200112

85190ARM ASSY, WINDSHIELD WIPER

main85190-95200iDA11#,FA100,11#,FC100..RHD196903-198002

main85190-95202iDA11#,FA100,11#,FC100..LHD196903-198002

main85190-95211iDA11#,FA100,115..RHD198002-200112

main85190-95212iDA11#,FA100,115..LHD198002-200112

85220BLADE ASSY, WINDSHIELD WIPER

main85220-95210iDA11#,FA100,115198002-200112

main85220-95403iDA11#,FA100,11#,FC100196903-198002

8 parts on this diagram · 5 diagrams in section
