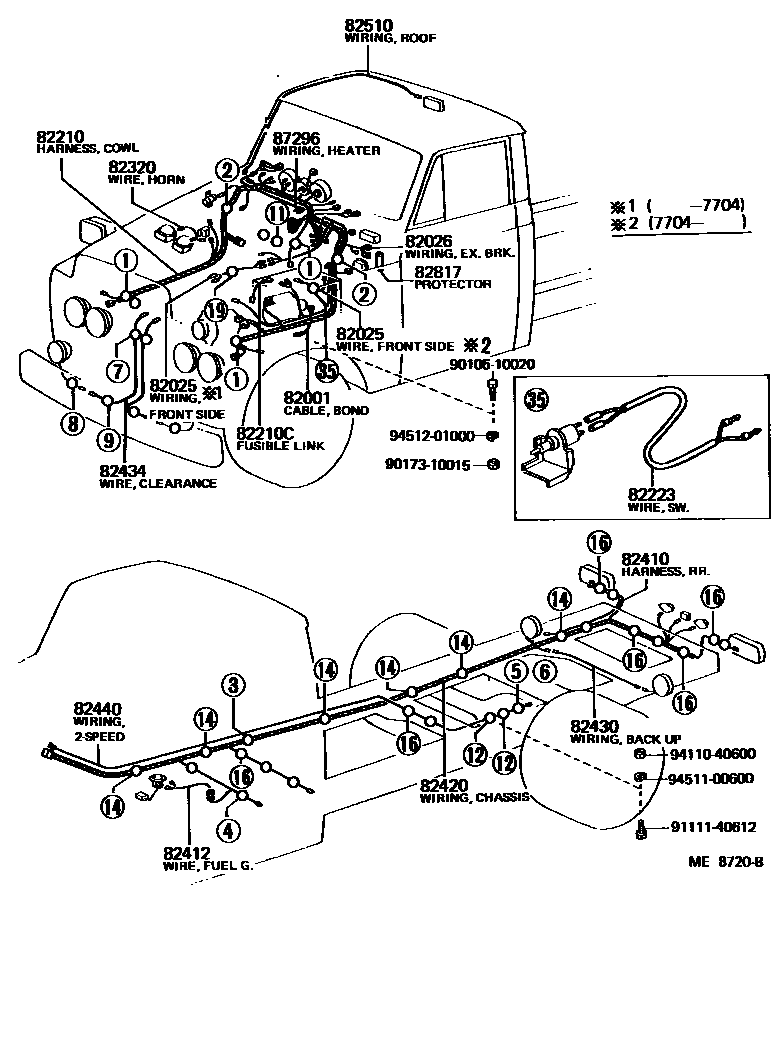

WIRING & CLAMP
82001CABLE, BOND, NO.1
82025WIRING SUB-ASSY, FRONT SIDE
L=500,W/EXHAUST BRAKE
L=500
L=500,W/EXHAUST BRAKE
L=380
MECHA.GOVERNOR EXHUST BRAKE
MECHA.GOVERNOR EXHUST BRAKE
W/MECHANICAL GAVERNOR
L=500,W/EXHAUST BRAKE
82026WIRING SUB-ASSY EXHAUST BRAKE
82210HARNESS ASSY, WIRING COWL TO HEADLAMP, NO.1
W/EXHAUST BRAKE
W/EXHAUST BRAKE & SEDIMENTER
W/FUEL SEDIMENTER
*SAA OR GULF SPEC
*SA SPEC
*SA SPEC,W/EXHAUST BRAKE
sub82220-95241
sub82220-95242
W/EXHAUST BRAKE OR SEDIMENTER
W/EXHAUST BRAKE OR SEDIMENTER
W/EXHAUST BRAKE & SEDIMENTER
W/FUEL SEDIMENTER
W/FUEL SEDIMENTER
W/EXHAUST BRAKE
W/EXHAUST BRAKE OR SEDIMENTER
W/EXHAUST BRAKE & SEDIMENTER
W/FUEL SEDIMENTER
W/FUEL SEDIMENTER
*SAA OR GULF SPEC
*SA SPEC
*SA SPEC,W/EXHAUST BRAKE
82210CFUSIBLE LINK
L=120
L=130
82223WIRE, SWITCH
W/AIR SERVO BRAKE
82320WIRE ASSY, TO HORN
82410HARNESS ASSY, WIRING TO REAR LAMP
82412WIRE, FUEL GAGE
AUSTRALIA SPEC
INDONESIA SPEC
INDONESIA SPEC
AUSTRALIA SPEC
*SAA OR GULF SPEC
82420WIRING ASSY, CHASSIS
sub82420-56093
AUSTRALIA SPEC
AUSTRALIA SPEC
W/VACUUM OR AIR SERVO BRAKE
W/VACUUM OR AIR SERVO BRAKE
W/AIR OVER BRAKE
W/AIR OVER BRAKE
W/VACUUM OR AIR SERVO BRAKE
W/VACUUM OR AIR SERVO BRAKE
W/AIR OVER BRAKE
W/AIR OVER BRAKE
W/VACUUM OR AIR SERVO BRAKE
W/VACUUM OR AIR SERVO BRAKE
W/AIR OVER BRAKE
W/AIR OVER BRAKE
82430WIRING ASSY, BACK-UP LAMP FEED
82434WIRE, CLEARANCE LAMP
AUSTRALIA SPEC
82440WIRING ASSY, 2 SPEED INDICATOR SWITCH
82510WIRING ASSY, ROOF
82817PROTECTOR, WIRING HARNESS, NO.1
sub74671-95405
87296WIRING, HEATER, NO.2 (FOR SWITCH TO HEATER)
9010510020
main90105-10020
9017310015
main90173-10015
9111140612
main91111-40612
9411040600
main94110-40600
9451100600
main94511-00600
9451201000
main94512-01000
22 parts on this diagram · 7 diagrams in section
