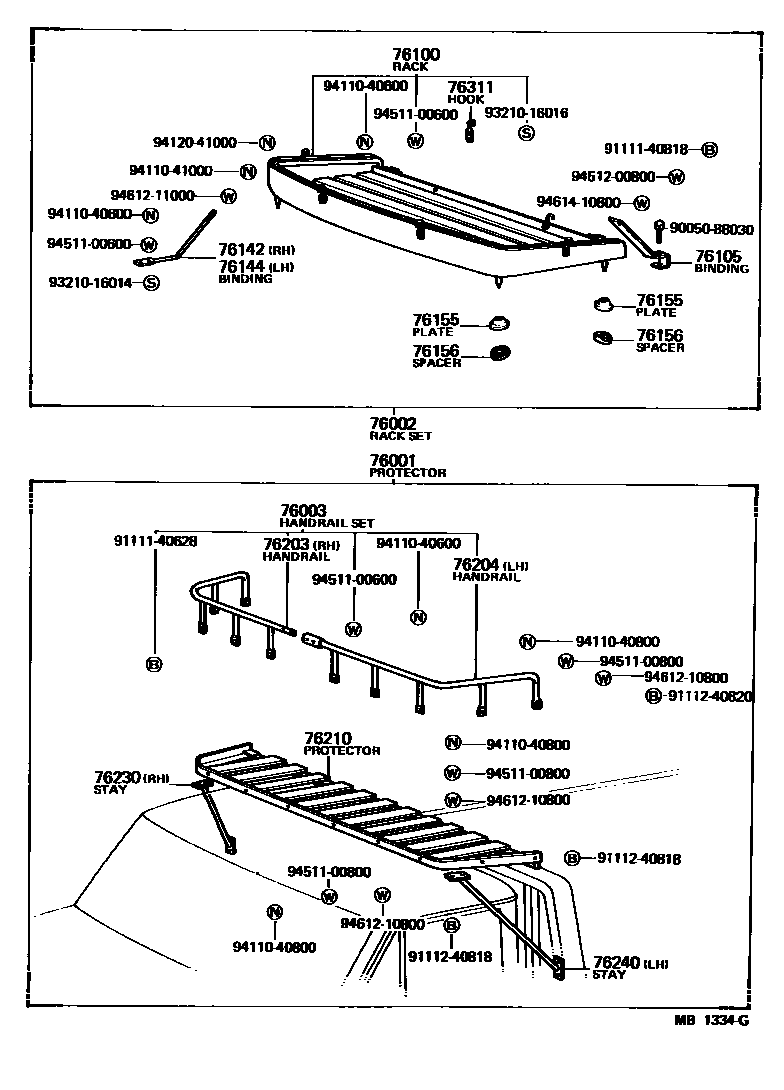

ROOF RACK
76001PROTECTOR SET
76002RACK SET, ROOF
76003HANDRAIL SET, PROTECTOR
76100RACK ASSY, ROOF
76105BINDING SUB-ASSY, ROOF RACK, REAR
76142BINDING, ROOF RACK, FRONT RH
76144BINDING, ROOF RACK, FRONT LH
76155PLATE, ROOF RACK JOINT
76156SPACER, ROOF RACK RUBBER
76203HANDRAIL SUB-ASSY, PROTECTOR, RH
76204HANDRAIL SUB-ASSY, PROTECTOR, LH
76210PROTECTOR ASSY
76230STAY ASSY, PROTECTOR, RH
76240STAY ASSY, PROTECTOR, LH
76311HOOK, ROOF RACK ROPE
9005088030
main90050-88030
9111140628
main91111-40628
9111140818
main91111-40818
9111240818
main91112-40818
9111240820
main91112-40820
9321016014
main93210-16014
9321016016
main93210-16016
9411040600
main94110-40600
9411040800
main94110-40800
9411041000
main94110-41000
9412041000
main94120-41000
9451100600
main94511-00600
9451100800
main94511-00800
9451200800
main94512-00800
9461210800
main94612-10800
9461211000
main94612-11000
9461410800
main94614-10800
32 parts on this diagram · 1 diagram in section
