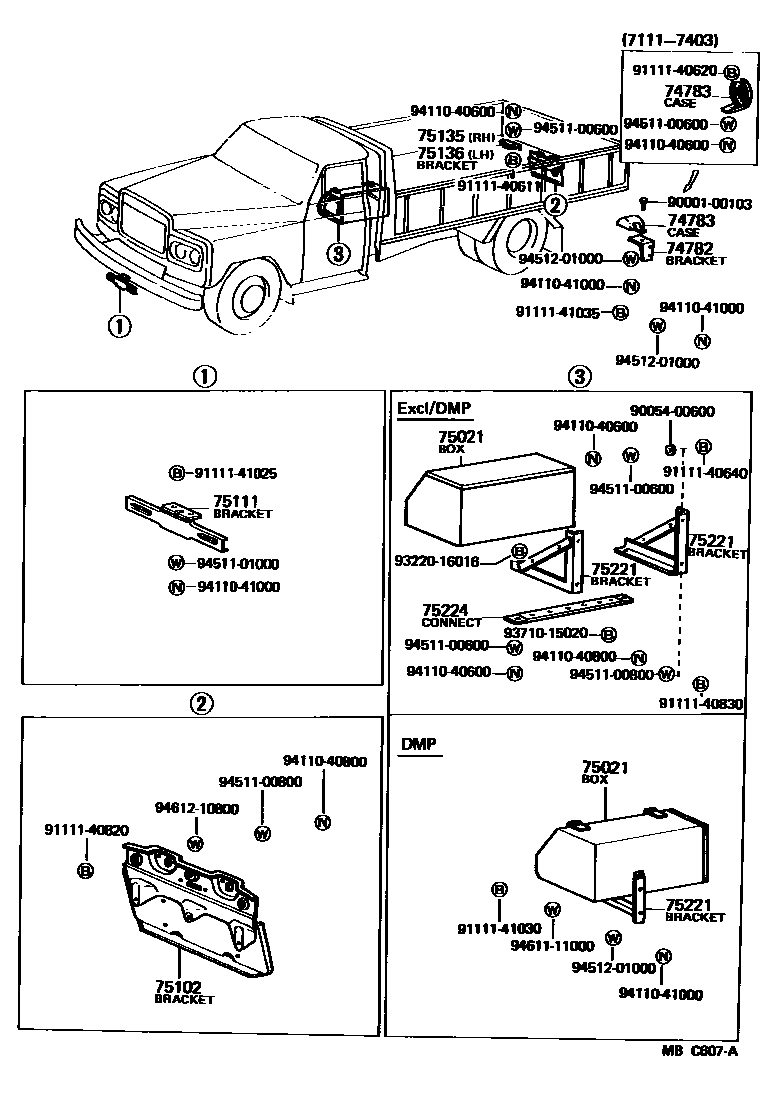

TOOL BOX & LICENSE PLATE BRACKET

0001 1 0002 1

74782BRACKET, BACK LIGHT

main74782-93002iDA110,FA100,110..RHD..DMP196903-197111

main74784-93001iDA110,FA100,110..LHD..DMP196903-197611

74783CASE, BACK LIGHT

main74783-93001iDA110,FA100,110..RHD..DMP196903-197010

main74783-93002iDA110,FA100,110..RHD..DMP197010-197111

main74785-93001iDA110,FA100,110..LHD..DMP196903-197611

75021BOX SUB-ASSY, TOOL

main75210-93000iDA110,FA100,110..DMP196903-197205

main75210-93001iDA110,FA100,110..DMP197205-200112

main75210-95213iDA11#,FA100,11#,FC100..BTR196903-197403

main75210-95214iDA11#,FA100,115..BTR197404-200112

75102BRACKET SUB-ASSY, REAR LICENSE PLATE

main75102-55011iFC100196903-197403

main75102-55020iDA11#,DB10#,FA100,11#196903-197405

main75102-55021iDA11#,DB105,FA100,115197405-200112

75111BRACKET, FRONT LICENSE PLATE

main75101-55030iDA11#,DB10#,FA100,11#,FC100196903-200112

75135BRACKET, COMBINATION REAR LAMP, RH

main74781-93001iDA110,FA100,110..DMP196903-200112

main75135-95210iDA11#,FA100,11#,FC100..BTR196903-200112

75136BRACKET, COMBINATION REAR LAMP, LH

main74781-93001iDA110,FA100,110..DMP196903-200112

main75135-95210iDA11#,FA100,11#,FC100..BTR196903-200112

75221BRACKET, TOOL BOX

main75201-95210iDA11#,FA100,11#,FC100..BTR196903-197403

RR

main75202-95210iDA11#,FA100,11#,FC100..BTR196903-197403

LH,FR

main75221-93000iDA110,FA100,110..DMP196903-197205

RH

main75222-93000iDA110,FA100,110..DMP196903-197205

LH

75224CONNECT, TOOL BOX BRACKET

main75224-95212iDA11#,FA100,11#,FC100..BTR196903-197403

9000100103

main90001-00103

9005400600

main90054-00600

9111140611

main91111-40611

9111140620

main91111-40620

9111140640

main91111-40640

9111140820

main91111-40820

9111140830

main91111-40830

9111141025

main91111-41025

9111141030

main91111-41030

9111141035

main91111-41035

9322016016

main93220-16016

9371015020

main93710-15020

9411040600

main94110-40600

9411040800

main94110-40800

9411041000

main94110-41000

9451100600

main94511-00600

9451100800

main94511-00800

9451101000

main94511-01000

9451180800

main94511-80800

9451201000

main94512-01000

9461111000

main94611-11000

9461210800

main94612-10800

31 parts on this diagram · 2 diagrams in section
