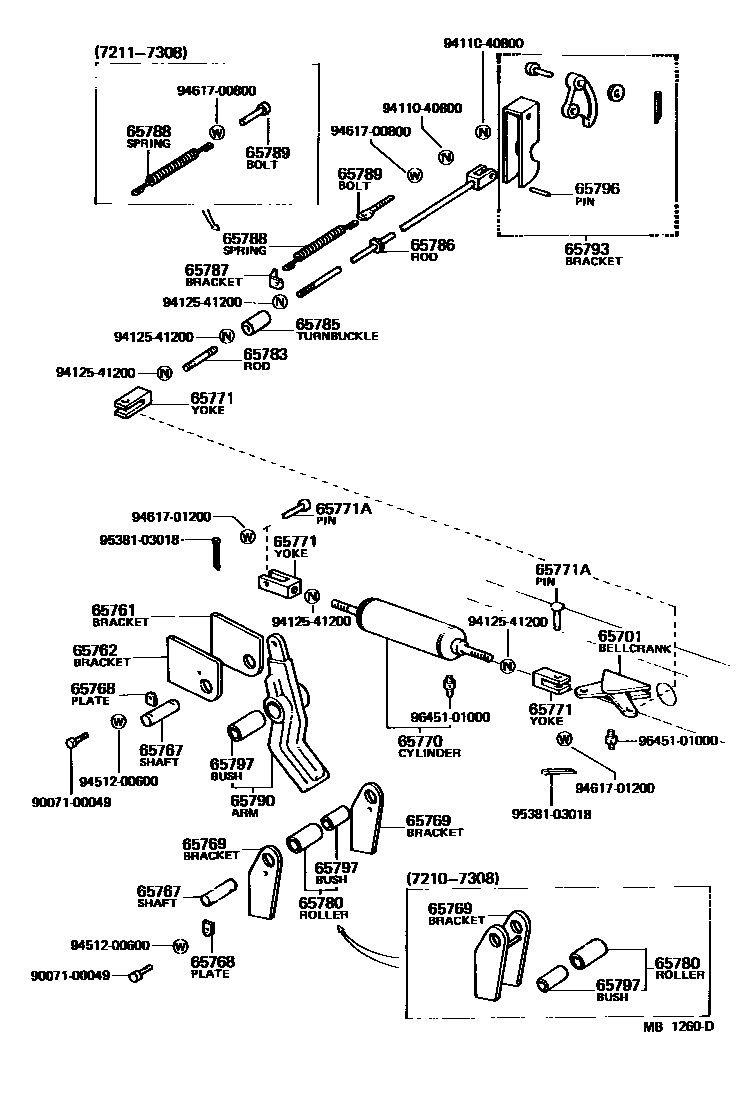

REAR BODY SIDE GATE LOCK & TAIL GATE LOCK
65701BELLCRANK SUB-ASSY
65761BRACKET, ROLLER ARM, RH
65762BRACKET, ROLLER ARM, LH
65767SHAFT, ROLLER
LWR
65768PLATE, LOCK(FOR ROLLER ARM BRACKET)
65769BRACKET, ROLLER
65770CYLINDER ASSY, TAIL GATE CONTROL SPRING
65771YOKE, TAIL GATE CONTROL SPRING CYLINDER
BELLCRANK
65780ROLLER SUB-ASSY
65783ROD, TURNBUCKLE THREADED
65785TURNBUCKLE, TAIL GATE CONTROL
65786ROD, TAIL GATE CONTROL
65787BRACKET, RETURN SPRING
65788SPRING, TAIL GATE CONTROL ROD RETURN
65789BOLT, RETURN SPRING EYE
65790ARM SUB-ASSY, ROLLER
65793BRACKET, TAIL GATE CONTROL HOOK
65796PIN, TAIL GATE CONTROL ROD
65797BUSH, ROLLER
9007100049
main90071-00049
9411040800
main94110-40800
9412541200
main94125-41200
9451200600
main94512-00600
9461700800
main94617-00800
9461701200
main94617-01200
9538103018
main95381-03018
9645101000
main96451-01000
28 parts on this diagram · 2 diagrams in section
