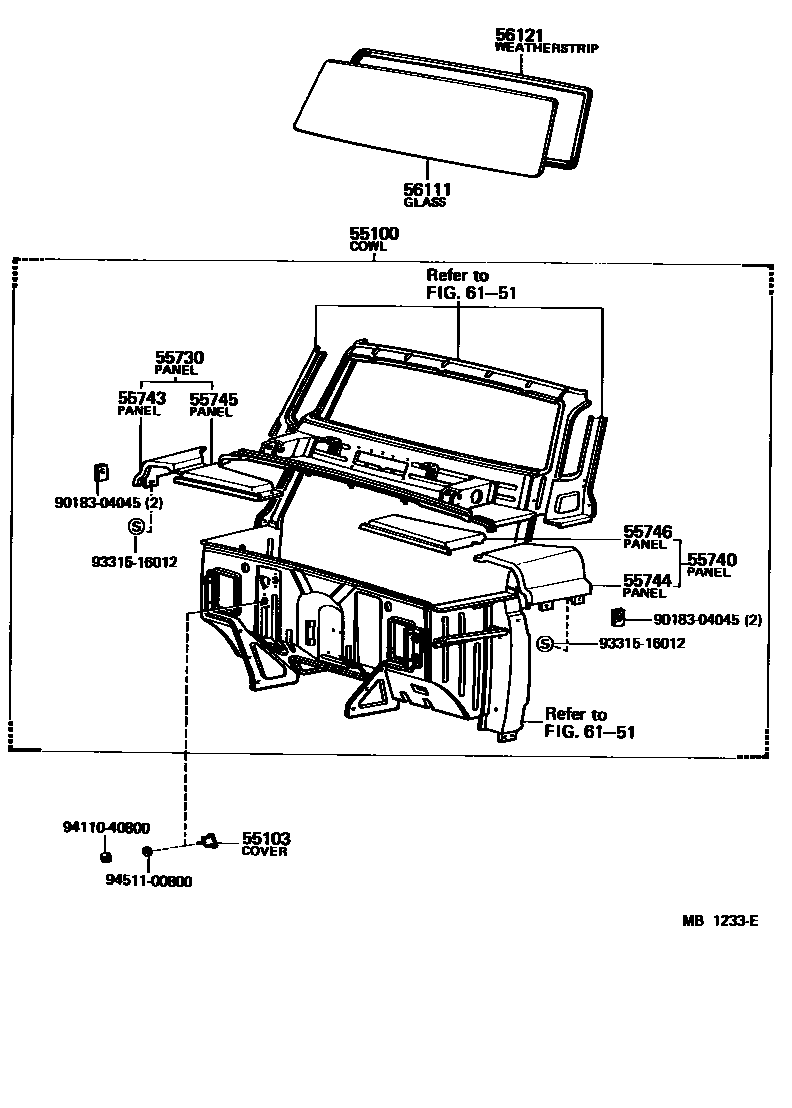

COWL PANEL & WINDSHIELD GLASS

55100COWL ASSY

main55100-95210iDA11#..RHD196903-197003

sub55100-95232

main55100-95211iFA100,11#,FC100..RHD196903-197003

sub55100-95232

main55100-95212iDA11#..LHD196903-197003

sub55100-95227

main55100-95213iFA100,11#,FC100..LHD196903-197003

sub55100-95227

main55100-95226iDA11#..RHD197003-197403

main55100-95227iDA11#..LHD197003-197403

sub55200-95213

main55100-95228iFA100,11#,FC100..RHD197003-197403

main55100-95229iFA100,11#,FC100..LHD197003-197403

main55100-95248iDA11#,FA100,115..RHD197404-197704

main55200-95213iDA11#,FA100,115..LHD197404-197704

55103COVER SUB-ASSY, HOLE

main55103-95210iDA11#,FA100,11#,FC100..RHD196903-200112

55730PANEL ASSY, COWL TOP OUTSIDE, RH

main55703-95210iDA11#,FA100,11#,FC100196903-197403

main55703-95211iDA11#,FA100,115197404-198002

main55703-95212iDA11#,FA100,115..RHD¥13,000198002-200112

main55703-95213iDA11#,FA100,115..LHD¥13,000198002-200112

55740PANEL ASSY, COWL TOP OUTSIDE, LH

main55704-95210iDA11#,FA100,11#,FC100196903-197403

main55704-95211iDA11#,FA100,115197404-198002

main55704-95212iDA11#,FA100,115..RHD¥13,400198002-198509

main55704-95212iDA11#..RHD¥13,400198509-200112

IV1

main55704-95213iDA11#,FA100,115..LHD¥13,400198002-198509

main55704-95213iDA11#..LHD¥13,400198509-200112

IV1,IV5

main55704-95214iDA11#..RHD¥13,400198509-200112

IV3;IV3,*SA

main55704-95215iDA11#..LHD¥13,400198509-200112

IV3

55743PANEL, COWL TOP OUTSIDE CORNER, RH

main55743-95210iDA11#,FA100,11#,FC100¥6,300196903-200112

55744PANEL, COWL TOP OUTSIDE CORNER, LH

main55744-95210iDA11#,FA100,11#,FC100¥6,300196903-200112

55745PANEL, COWL TOP OUTSIDE, RH

main55745-95211iDA11#,FA100,11#,FC100¥2,730196903-200112

main55745-95212iDA11#..RHD..1SR198908-200112

55746PANEL, COWL TOP OUTSIDE, LH

main55746-95210iDA11#,FA100,11#,FC100¥2,730196903-200112

main55746-95211iDA11#..RHD..1SR198908-200112

56111GLASS, WINDSHIELD

main56111-95212iDA11#,FA100,11#,FC100¥25,100196903-197005

*TEM,T=5.0

sub56111-95214¥34,500

main56111-95213iDA11#,FA100,11#,FC100196903-197105

*LAM,T=6.3

sub56111-95216¥58,900

main56111-95214iDA11#,FA100,11#,FC100¥34,500197005-200112

*ZT,T=5.0,*ZT,T=5.0

sub56111-95216¥58,900

main56111-95216iDA11#,FA100,11#,FC100¥58,900197105-200112

*LAM,T=6.7,*LAM,T=6.7

56121WEATHERSTRIP, WINDSHIELD

main56121-95213iDA11#,FA100,11#,FC100¥3,920196903-200112

6151

9018304045

main90183-04045¥180

9331516012

main93315-16012¥210

9411040800

main94110-40800¥120

9451100800

main94511-00800¥100

15 parts on this diagram · 1 diagram in section
