FRONT VENTILATOR

55250DOOR ASSY, COWL SIDE VENTILATOR, RH

main55250-95210iDA11#,FA100,11#,FC100196903-198002

main55250-95211iDA11#,FA100,115198002-200112

55250ACUSHION, FRONT SIDE VENTILATOR

main90053-00601iDA11#,FA100,11#,FC100196903-196912

sub90541-06004

main90541-06004iDA11#,FA100,11#,FC100196912-200112

55258BBRACKET, COWL SIDE VENTILATOR LINK

main55258-95210iDA11#,FA100,115198002-200112

55260DOOR ASSY, COWL SIDE VENTILATOR, LH

main55250-95210iDA11#,FA100,11#,FC100196903-198002

main55260-95210iDA11#,FA100,115198002-200112

55261KNOB, COWL SIDE VENTILATOR

main55261-95210iDA11#,FA100,115198002-200112

55262LINK, COWL SIDE VENTILATOR

main55262-95210iDA11#,FA100,115198002-200112

55266BUSH, COWL SIDE VENTILATOR LINK

main55266-95210iDA11#,FA100,115198002-200112

55801DUCT ASSY, COWL VENTILATOR

main55088-95211iDA11#,FA100,115198002-200112

main55810-95212iDA11#,FA100,115196903-198002

sub55088-95210

55815ROD, COWL VENTILATOR CONTROL

main55832-95211iDA11#,FA100,11#,FC100196903-200112

55815AGROMMET(FOR COWL VENTILATOR CONTROL ROD)

main55872-95210iDA11#,FA100,11#,FC100196903-196912

sub90480-01244

main90480-01244iDA11#,FA100,11#,FC100196912-200112

55815CRING, E(FOR COWL VENTILATOR CONTROL ROD SET)

main90053-80401iDA11#,FA100,11#,FC100196903-197403

sub90523-04016

main90523-04016iDA11#,FA100,115197404-200112

55833PIN, FRONT VENTILATOR SUPPORT

main55255-95210iDA11#,FA100,11#,FC100196903-196912

sub90250-05172

main90250-05172iDA11#,FA100,11#,FC100196912-200112

55838PACKING, FRONT SIDE VENTILATOR

main55259-95210iDA11#,FA100,11#,FC100196903-198006

main55259-95211iDA11#,FA100,115198006-200112

sub64134-95700

55840HANDLE ASSY, COWL VENTILATOR

main55820-95211iDA11#,FA100,11#,FC100196903-197403

sub55820-95213

main55820-95213iDA11#,FA100,115197404-200112

55840ASPRING, COWL VENTILATOR HANDLE

main55824-95211iDA11#,FA100,11#,FC100196903-196912

sub90508-32195

main90508-32195iDA11#,FA100,11#,FC100196912-200112

55842SPRING, FRONT VENTILATOR, RH

main55257-95210iDA11#,FA100,11#,FC100196903-196908

sub90508-16176

main55257-95211iDA11#,FA100,11#,FC100196908-197403

sub90508-26207

main90508-26207iDA11#,FA100,115..LHD197404-200112

W/O HEATER

55843SPRING, FRONT VENTILATOR, LH

main55257-95210iDA11#,FA100,11#,FC100196903-196908

sub90508-16176

main55257-95211iDA11#,FA100,11#,FC100196908-197403

sub90508-26207

main90508-26207iDA11#,FA100,115..LHD197404-200112

W/O HEATER

55860SLIT SUB-ASSY, FRONT VENTILATOR

main55861-95212iDA11#,FA100,11#,FC100196903-200112

55871PANEL, COWL VENTILATOR AIR DUCT

main55871-95211iDA11#,FA100,11#,FC100196903-197403

main55871-95212iDA11#,FA100,115197404-198002

main55871-95214iDA11#,FA100,115..RHD198002-200112

main55871-95215iDA11#,FA100,115..LHD198002-200112

55881PACKING, FRONT VENTILATOR

main55883-95210iDA11#,FA100,11#,FC100196903-200112

55882WEATHERSTRIP, COWL UPPER VENTILATOR

main55881-95212iDA11#,FA100,11#,FC100196903-200112

9005410800

main90054-10800

9038606120

main90386-06120

9161146014

main91611-46014

9331215010

main93312-15010

9331516012

main93315-16012

9331516016

main93315-16016

9351014012

main93510-14012

9411040600

main94110-40600

9434160400

main94341-60400

9451100600

main94511-00600

9461210400

main94612-10400

9461210500

main94612-10500

9461210601

main94612-10601

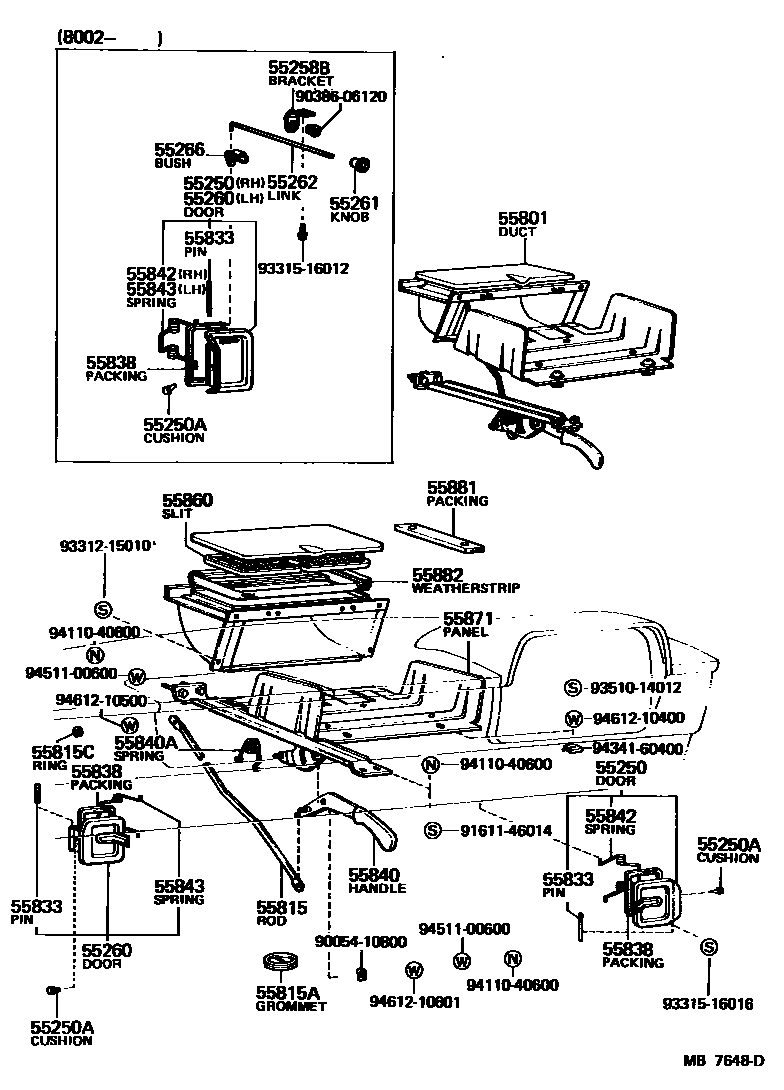

34 parts on this diagram · 1 diagram in section
